SS0607E(SS1932E)

LGMG SS Series scissor lifts offer an ideal solution for the low-level access and tight restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators.


l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Efficient electric drive system provides longer-lasting performance and better gradeability.

l The zero turning radius and the light weight make this machine ideal for space restricted conditions, providing exceptional maneuverability.

l Exceptional waterproofed drive system design provides excellent performance in wet conditions.

l Commonality of control system with other electric scissor lifts.


  • 7.5m(24.6ft)
    Max. Working Height
  • 230kg(510lbs)
    Platform Capacity
  • 0.7m(2.65ft)
    Machine Width
  • 1.53m(5ft)
    Machine Length
  • 1335kg(2866lbs)
    Machine Weight
ModelsSS0607ESS1932E
Measurements
Work Height Max.7.8m25'7''
A-Platform Height-Raised5.8m19'
B-Platform Lenth1.64m5'5''
C-Platform Width0.73m2'5''
D-Overall Length1.83m6'
E-Overall Width0.79m2'7''
F-Overall Height-Guardrails Up2.16m7'1''
G-Overall Height-Guardrails Down1.81m5'11''
H-Extension Deck0.9m2'11''
I-Wheelbase1.35m4'5''
Ground Clearance(Stowed/Raised)78/26mm3''/1''
Productivity
Max. Platform Occupants2 (in) /1 (out)
Platform Capacity230kg510 lbs
Platform Capacity-Extension Deck120kg265 lbs
Drive HeightFull Height
Gradeability-Stowed25%
Min. Turning Radius1.8m5'11''
Raise/Lower Speed16/28s
Brakes Front-wheel Brake
Drive Mode4×2
Tires TypeSolid Non-marking
Tires Size320×100mm12''×4''
Power
Power Source                      24V   225Ah
Power Source (S0607E -Li)24V  160Ah
Hydraulic System
Hydraulic Oil Capacity5L1.3gal
Weight
Machine Weight(CE)1610kg3549 lbs

Standard features

Proportional control

Foldable guardrail

Emergency stop device

Manual brake release

Emergency descent

Swing-out component tray

Pothole guard

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Solid non-marking tires

All motions alarm

Full-height drive

Intelligent diagnostic system

Indoor and outdoor rated


Options

AC power to platform

Maintenance-free battery

Anti-collision protection

Voice alarm system

Telematics

Biodegradable hydraulic oil

PRODUCT VIDEO

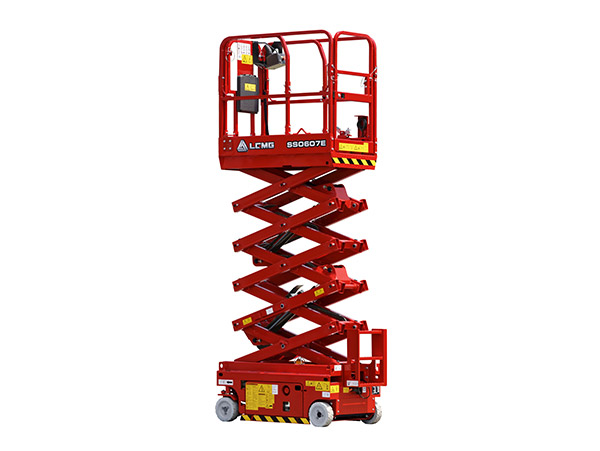

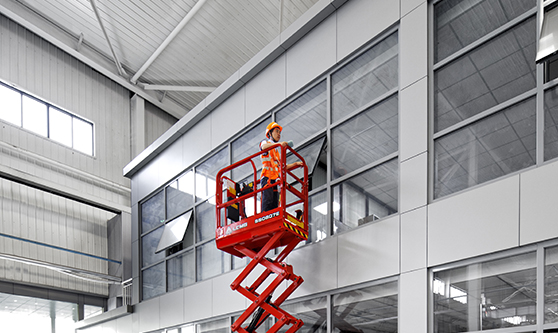

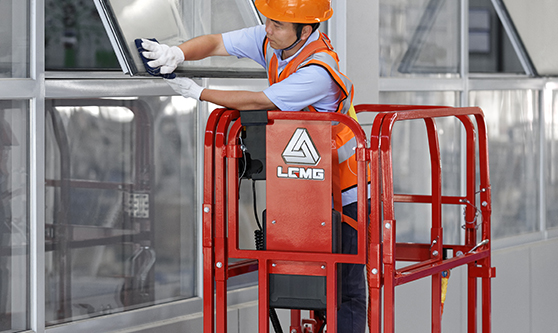

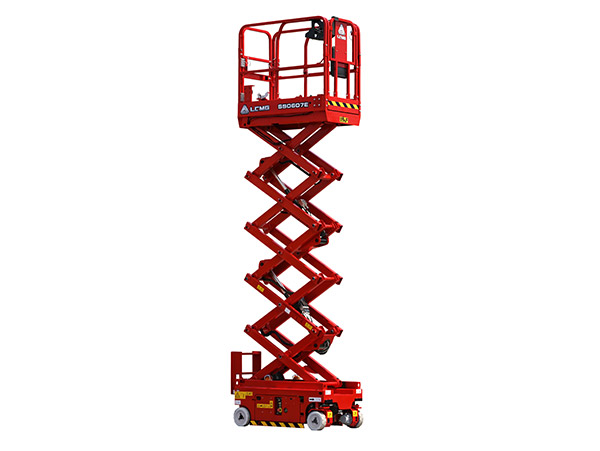

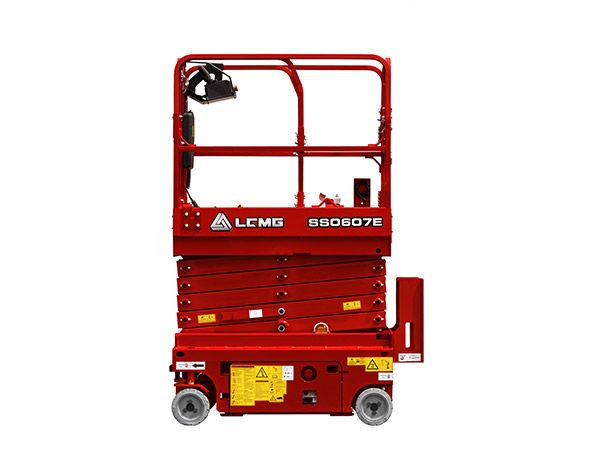

PRODUCT PICTURES
