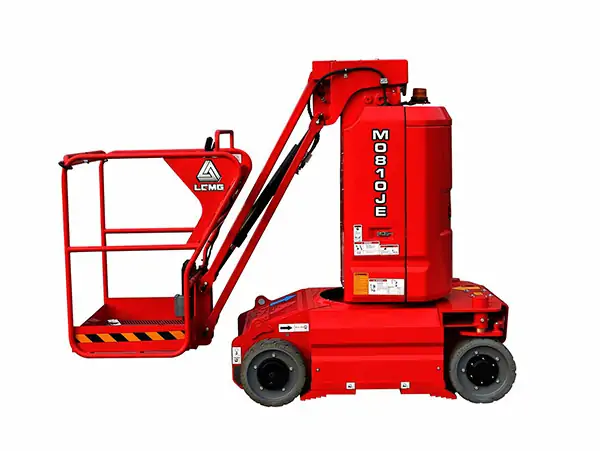

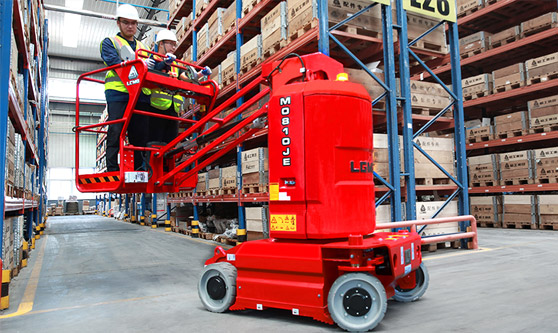

M0810JE(M2640JE)

LGMG's new vertical mast lift M0810JE has good maneuverability and is easy to operate in tight spaces. With a 3.2m jib, a larger working envelope, and a highly efficient electric drive, it is more productive with longer working hours. Its compact size and light weight allow easy transport.



l Great maneuverability easy to operate within tight spaces

l 3.2m jib and larger working envelope

l Eco-friendly, zero-emission, more productive with longer working hours

l Easy to maintain with lower cost of repairs

l Compact size and light-weight, easy to transport

l Zero tailswing, easy to operate in tight spaces

  • 10m(32'10'')
    Working Height
  • 200kg(440lbs)
    Platform Capacity
  • 1m(3'3'')
    Overall Width
  • 2.6m(8'6'')
    Overall Length
  • 2720kg(5997lbs)
    Machine Weight(CE)
MODELSM0810JEM2640JE
MeasurementsMetricUS
Working Height10m32'10''
Platform Height (Raised)8m26'3''
Horizontal Outreach   3.2m10'6''
Up and Over Clearance Max.6.6m21'8''
Platform Size (L×W)0.98x0.72m39''x28''
Overall Length2.6m8'6''
Overall Width1m3'3''
Overall Height (Stowed)1.99m6'6''
Wheelbase1.2m3'11''
Ground Clearance0.1m4''
PRODUCTIVITY
Max. Platform Occupancy2 (in) / 1 (out)
Platform Capacity200kg440 lbs
Drive ModeRear Wheel
BrakesRear Wheel
Turntable Rotation345°345°
Max. Drive Speed (Stowed)5km/h3mph
Max. Drive Speed (Raised)0.43km/h0.27mph
Gradeability25%25%
Tailswing00
Tire Size380x130mm15''x5''
POWER
Power Source24V 250Ah
Hydraulic Oil Capacity6.5L1.7gal
Machine Weight(CE)   2720kg5997 lbs

Standard features
Brake release
All motions alarm

Emergency descent

Tilt alarm

Full-height drive

Hour meter

Descent alarm with flashing beacon

Charge protection system

Emergency stop device

Solid non-marking tires

2 wheel drive, 2 wheel steering

Manual emergency pump


Optional
Voice alarm system
Telematics
AC power to platform

Anti-entrapment protection
