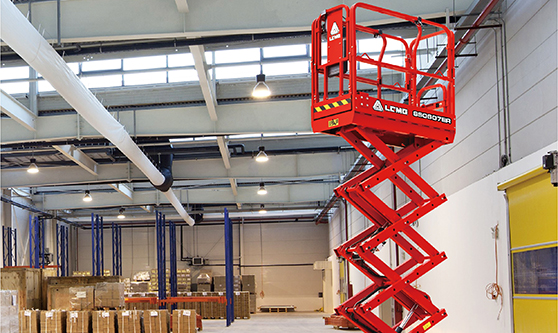

LGMG ER Series scissor lifts are equipped with an advanced maintenance free battery for better productivity with a lower service cost. This series is an ideal solution for the low-level access and space restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators.
l Lightweight and compact, this machine can easily be transported in passenger elevators.
l The foldable climbing ladder effectively reduces the overall length of the machine.
l Rear-wheel drive, precise and smooth driving control, easy and reliable operation.
l Highly efficient motor drive system provides better climbing performance.
l Indoor-outdoor model, excellent load capacity, 240kg platform capacity for 2 persons.

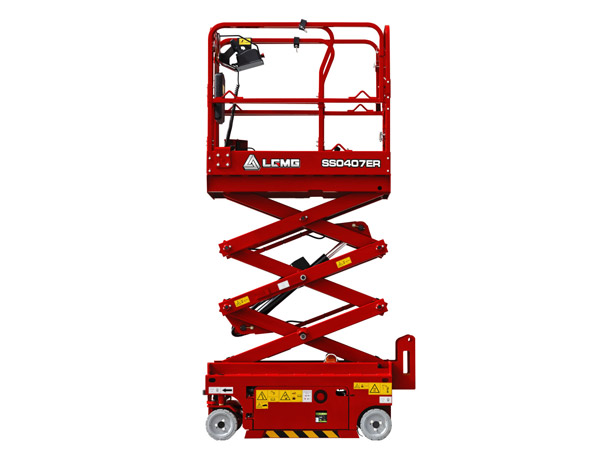

| Models | SS0407ER | SS1230ER |
| Measurements | ||
| Work Height Max. | 5.6m | 18'5'' |
| A-Platform Height-Raised | 3.6m | 11'10'' |
| B-Platform Length | 1.27m | 4'2'' |
| C-Platform Width | 0.7m | 2'4'' |
| D-Overall Length (with ladder) | 1.47m | 4'10'' |
| E-Overall Width | 0.76m | 2'6'' |
| F-Overall Height-Guardrails Up | 2m | 6'7'' |
| Overall Height-Guardrails Down | 1.57m | 5'2'' |
| G-Extension Deck | 0.6m | 2' |
| H-Wheelbase | 1.05m | 3'5'' |
| Ground Clearance(Stowed/Raised) | 50/20mm | 2''/0.8'' |
| Productivity | ||
| Max. Platform Occupants | 2 (in) /1 (out) | |
| Platform Capacity | 240kg | 530 lbs |
| Platform Capacity-Extension Deck | 100kg | 221 lbs |
| Drive Height | Full Height | |
| Gradeability-Lowered | 25% | |
| Min. Turning Radius | 1.55m | 5'1'' |
| Raise/Lower Speed | 25/18s | |
| Brakes | Rear-wheel Brake | |
| Drive Mode | 4×2 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 230×80mm | 9''×3'' |
| Ground Pressure, Tyres | 602 kPa | 87.3 psi |
| Power | ||
| Power Source | 24V DC (2x12V) 100Ah,AGM | |
| Hydraulic System | ||
| Hydraulic Oil Capacity | 4L | 1gal |
| Weight | ||
| Machine Weight(CE/ANSI) | 880kg | 1940 lbs |
Standard features
Proportional control
Foldable guardrail
Emergency stop device
Manual brake release
Emergency descent
Swing-out component tray
Pothole guard
Self-lock entry gate
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
Solid non-marking tires
All motions alarm
Full-height drive
Intelligent diagnostic system
Options
AC power to platform
Anti-collision protection
Biodegradable hydraulic oil
Telematics
Voice alarm system
