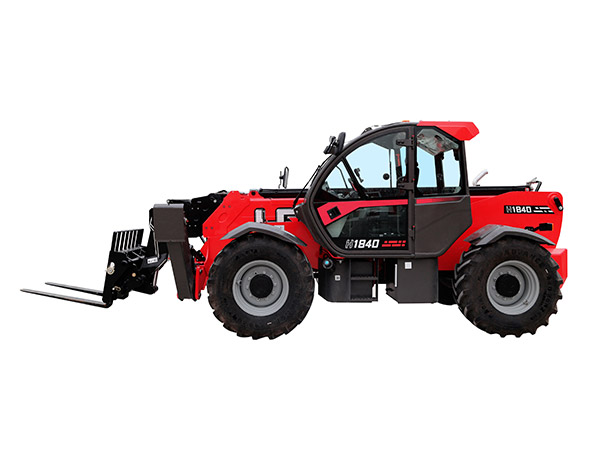

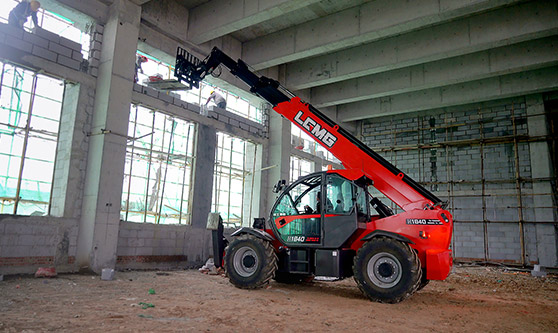

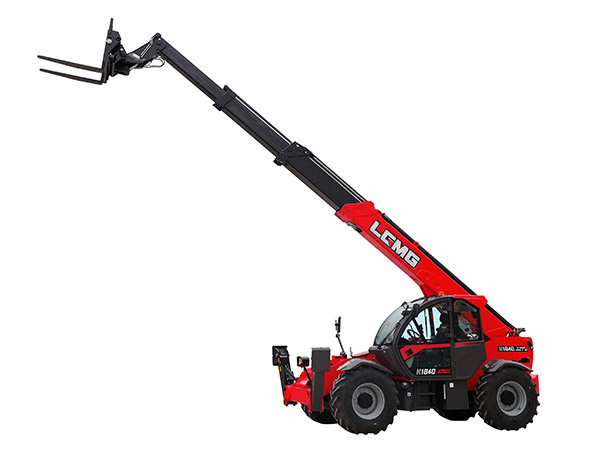

The LGMG H1840 Telehandler is the perfect choice for construction work. It's strong, easy to maneuver, and delivers outstanding performance with robust four-wheel drive. With three steering modes and precise frame leveling, it's the practical choice for complex job sites.
Key Features of the LGMG H1840 Telehandler:
● Robust Power with Minimal Fuel Consumption
● Advanced Configuration Ensures Safety and Operator Comfort
● Energy-Efficient Design for Precise and Effective Operation
● Exceptional Versatility for Diverse Task Completions
● Intelligent Control System Enhances Operational Efficiency
| Models | H1840 | |
| Measurements | Metric | Imperial |
| A-Max. Lifting Height | 17.6 m | 57'9'' |
| Max. Outreach | 13.1 m | 43' |
| B-Overall Lenth | 5.9 m | 19'4'' |
| C-Overall Width | 2.44 m | 8' |
| D-Overall Height | 2.67 m | 8'9'' |
| E-Wheelbase | 3.07 m | 10'1'' |
| F-Wheel Track | 1.96 m | 6'5'' |
| Ground Clearance | 0.41 m | 1'4'' |
| Productivity | ||
| Max. Capacity | 4000 kg | 8818 lbs |
| Gradebility-Unladen | 65% | |
| Min.Turning Radius | 4.3 m | 14'1'' |
| Tilt Angle | ±9° | |
| Drive/Steering Mode | 4 Wheel Driving/4 Wheel Steer | |
| Primary Boom Ascending Time | 14 s | |
| Primary Boom Descending Time | 16 s | |
| Boom Extending Time | 22 s | |
| Boom retracting Time | 15 s | |
| Forward-First Gear Travel Speed | 5 km/h | 3.1 mph |
| Forward-Second Gear Travel Speed | 12 km/h | 7.5 mph |
| Forward-Third Gear Travel Speed | 20 km/h | 12.4 mph |
| Forward-Fourth Gear Travel Speed | 30 km/h | 18. mph |
| Backward-First Gear Travel Speed | 5 km/h | 3.1 mph |
| Backward-Second Gear Travel Speed | 12 km/h | 7.5 mph |
| Backward-Third Gear Travel Speed | 20 km/h | 12.4 mph |
| Max. Braking Distance-Unladen | ≤ 5.5 m (20 km/h) | ≤18'1''(12.4mph) |
| Standard Tires | 440/80 R24 | |
| Power | ||
| Manufacturer | Perkins 1104D-E44T | |
| Rated Power (Euro Ⅲ） | 74.5 kW | 99.9hp |
| Rated Power (Euro Ⅴ） | 55.4/74.4 kW | 74.3/99.8hp |
| Max. Torque (Euro Ⅲ） | 420 N.m | 310 lb.ft |
| Max. Torque (Euro Ⅴ） | 424/430 N.m | 313/317 lb.ft |
| Displacement (Euro Ⅲ） | 4400 ml | 269 cu.in |
| Displacement (Euro Ⅴ） | 3620 ml | 221 cu.in |
| Tank Capacity | ||
| Hydraulic Oil Capacity | 180 L | 47.6 gal |
| Fuel Tank Capacity | 150 L | 39.6 gal |
| Weight | ||
| Machine Weight | 12350 kg | 27227 lbs |
