AR16J(AR52J)

LGMG AR Series articulating boom lifts are purpose built for outdoor construction and industrial applications. Simple and reliable design with industrial features make this machine easy to operate. A standard jib offers the ability to reach even the most hard to reach places.


l The oscillating axels and four-wheel drive deliver better gradeability on rough terrain.

l Proportional smooth driving, precise positioning and comfortable operation.

l Self-leveling platform together with hydraulic platform rotation delivers exceptional productivity.

l Swing out engine tray for easy access and maintenance.

l Intelligent self-diagnostic system for quick troubleshooting.


  • 17.70m(58.1ft)
    Work Height Max.
  • 230kg(510lbs)
    Platform Capacity
  • 2.31m(7.58ft)
    Machine Width
  • 9.39m(30.8ft)
    Horizontal Outreach
  • 8180kg(18034lbs)
    Machine Weight
ModelsAR16JAR52J
Measurements
Work Height Max.17.7m58'1''
Platform Height15.7m51'6''
Horizontal Outreach9.39m30'10''
Up and Over Height7.56m24'10''
A-Stowed Length7.56m24'10''
Length-Transport (jib tucked)6.17m20'3''
B-Stowed Width2.31m7'7''
C-Stowed Height2.17m7'1''
Height-Transport2.57m8'5''
D-Platform Size Length1.83m6'
E-Platform Size  Width0.76m2'6''
Platform Capacity230kg510 lbs
Wheelbase2.06m6'9''
Ground Clearance0.36m1'2''
Productivity
Max. Platform Occupants2
Drive Speed-Stowed6.1km/h3.8mph
Drive Speed-Raised0.8km/h0.5mph
Gradeability-Stowed45%
Turnable Rotation355°
Turning Radius-Inside1.94m6'4''
Turning Radius-Outside4.41m14'6''
Tires TypeRT Foam-filled
Tires Size                                  315/55D20
Ground Pressure, Tyres624.2 kPa90.5 psi
Power
Power

Deutz D2.9L4 36.4kw/48.8hp

/ Kubota V2403 36kw/48.2hp

Fuel Tank Capacity65L17.2gal
Hydraulic System
Hydraulic Oil Capacity130L34.3gal
Weight
Machine Weight(CE)8180kg18034 lbs

Standard features

Proportional control

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Platform tool box

Emergency stop button

On-board diagnostic system

Oscillating axle

Four-wheel drive and break

Over tilt protection system

Anti-collision protection

Horn/Hour meter

Full-height drive

Telematics connector

Platform auto-leveling system

RT Foam-filled tires


Options

Telematics

AC power to platform

Hydraulic generator kit

Cold weather package

Auxiliary rail

Solid tires

Foam-filled non-marking tires

Solid non-marking tires

Half-height mesh platform

Biodegradable hydraulic oil


PRODUCT VIDEO

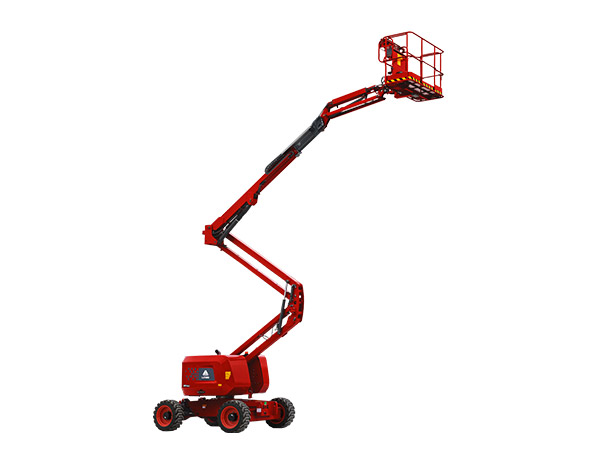

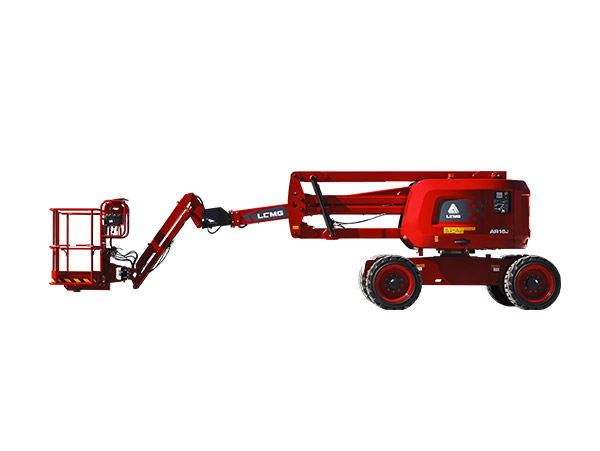

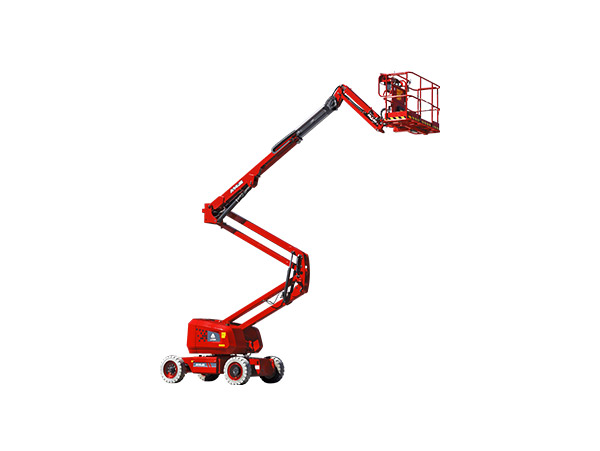

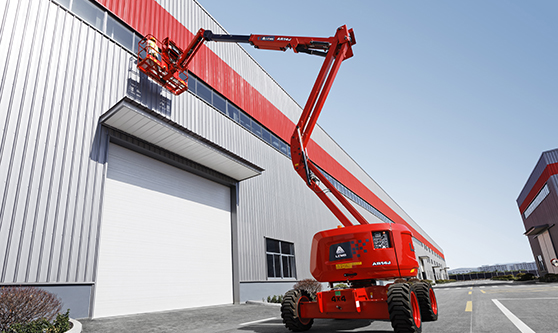

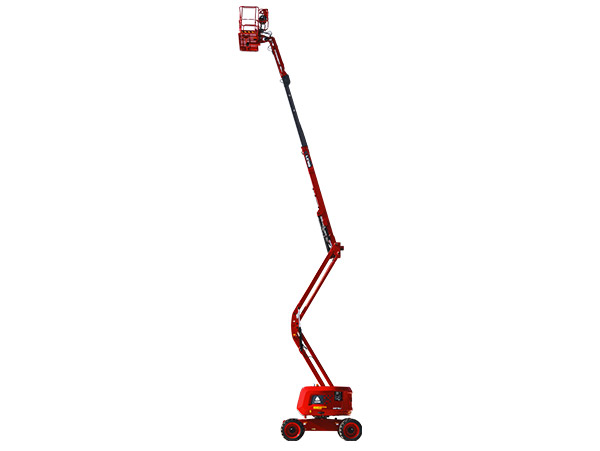

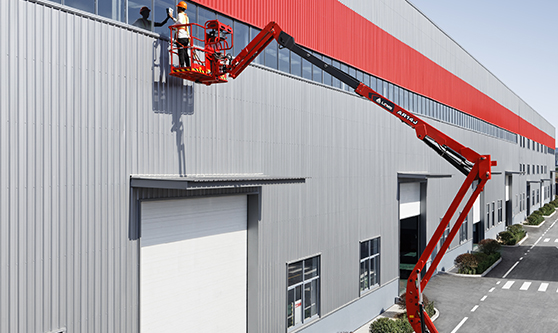

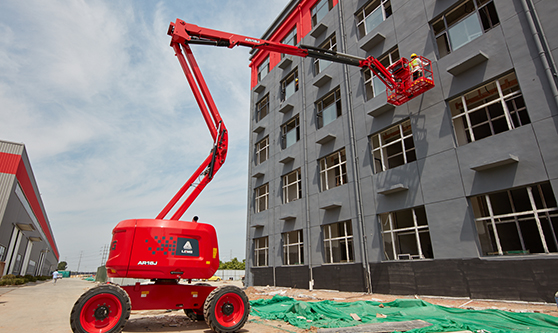

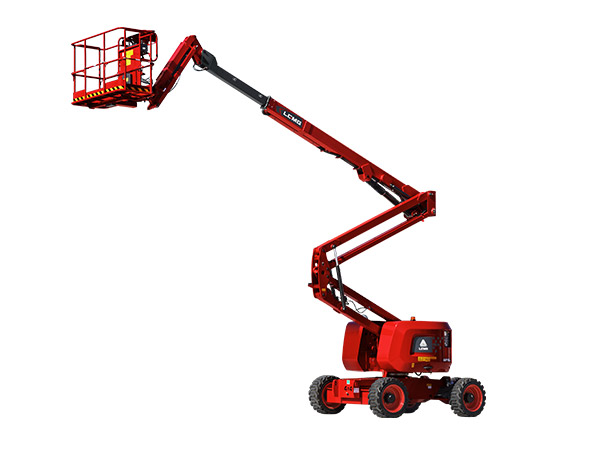

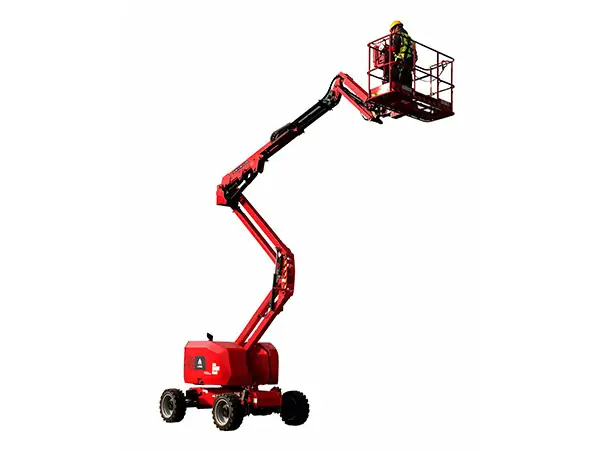

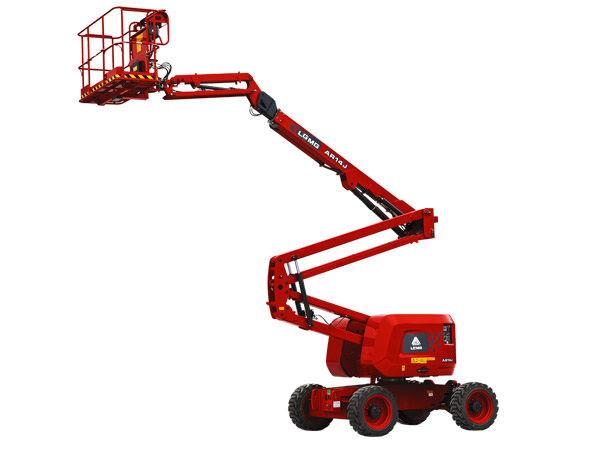

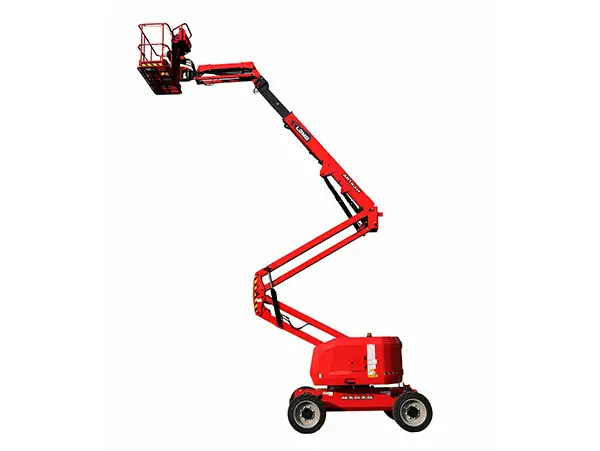

PRODUCT PICTURES
