T20J(T65J)

LGMG T Series telescopic boom lifts offer great outreach with high working efficiency. Its exceptional all terrain capacities allow the machine to operate on the roughest ground and complete the tasks on time.


l Oscillating axels and four-wheel drive delivers better gradeability on rough terrain.

l Proportional control ensures smooth driving, precise positioning and comfortable operation.

l Continuous 360° turntable rotation expands the operational area and makes operations more convenient.

l Swing out engine tray for easy access and maintenance.

l Intelligent self-diagnostic system for quick troubleshooting.


  • 21.7m(71.2ft)
    Max. Working Height
  • 250kg(551lbs)
    Platform Capacity
  • 2.495m(8.186ft)
    Machine Width
  • 17.2m(56.4ft)
    Horizontal Outreach
  • 11400kg(25132lbs)
    Machine Weight
ModelsT20JT65J
Measurements
Work Height Max.21.7m71.2ft
Platform Height19.7m64.6ft
Horizontal Outreach17.2m56.4ft
Below Ground Reach2.72m8.92ft
Platform Length1.83m72in
Platform Width0.76m30in
Platform Capacity250kg551lbs
A-Stowed Length9.47m31.07ft
B-Overall Width2.495m8.186ft
C-Stowed Height2.77m9.09ft
D-Wheelbase2.51m8.24ft
E-Ground Clearance0.395m1.296ft
Productivity
Max. Platform Occupants22
Turntable Rotation360°Continuous
Turntable Tailswing1.22m4ft
Drive Speed-Stowed4.8km/h3mph
Drive Speed-Raised0.8km/h0.5mph
Gradeability-Stowed45%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside2.5m8.2ft
Turning Radius-Outside5.5m18ft
Max.Slope2.5/4.5°
Tries TypeRT Foam-filled
Tires Size355/55D 625
Power
Power

Deutz D2.9L4 36.4kw/48.8hp

Fuel Tank Capacity100L26.4gal
Hydraulic System
Hydraulic Oil Capacity180L47.5gal
Weight
Machine Weight(CE)11400kg25132lbs

Standard features

Proportional control

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Platform auto-leveling system

Emergency stop button

On-board diagnostic system

Oscillating axle

Four-wheel drive and break

Overtilt protection system

Anti-crush protection

Horn/Hour meter


Options

AC power to platform

Platform tool box

EuroⅤ engine

T4F engine


PRODUCT VIDEO

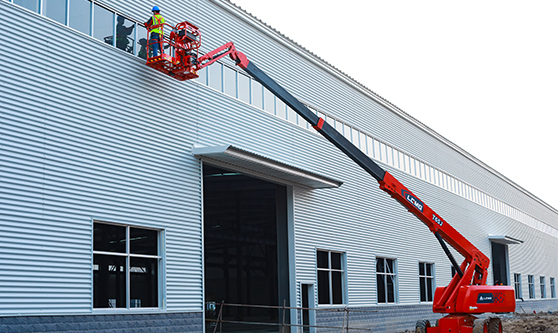

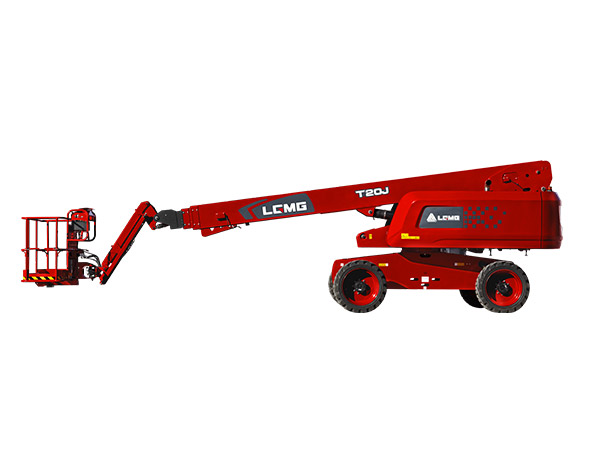

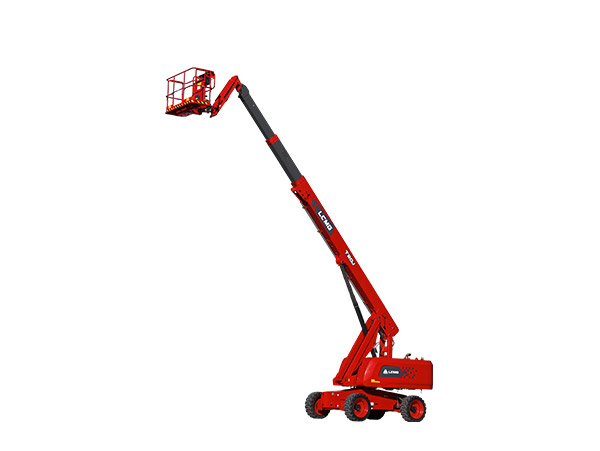

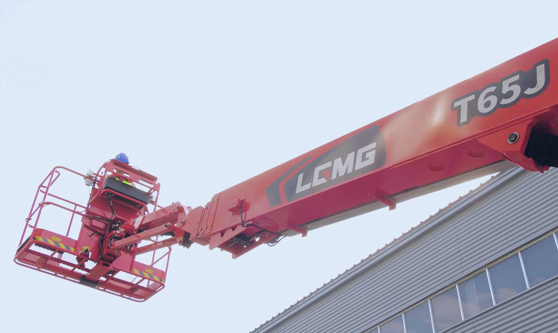

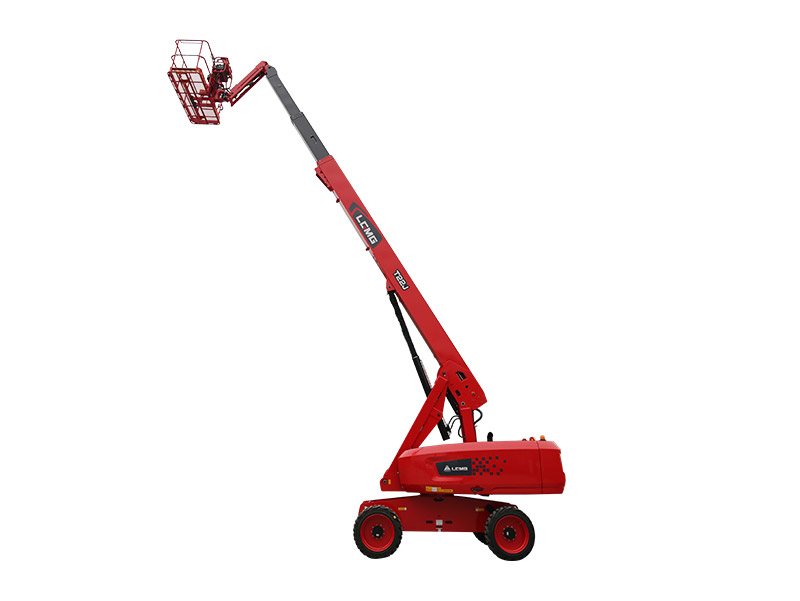

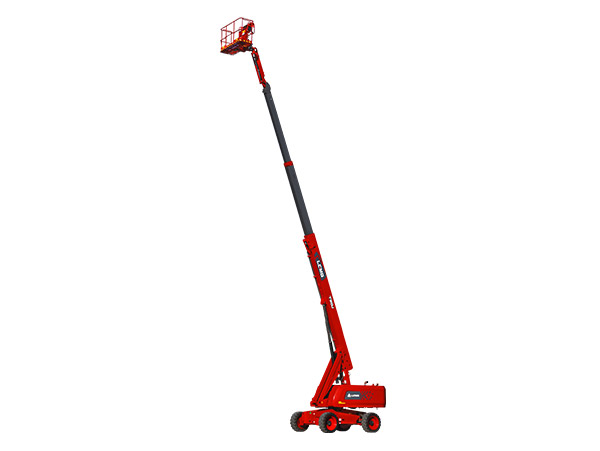

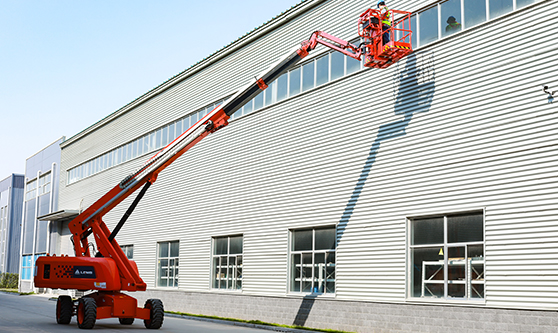

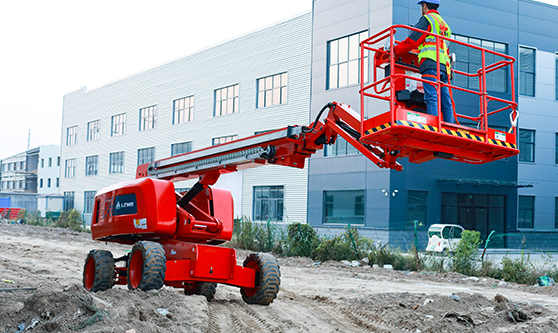

PRODUCT PICTURES
