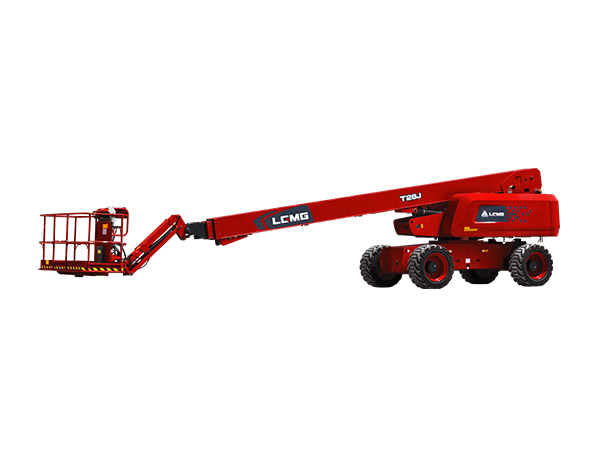

T26J(T85J)

LGMG T Series telescopic boom lifts offer great outreach with high working efficiency. Its exceptional all terrain capacities allow the machine to operate on the roughest ground and complete the tasks on time.


l Oscillating axels and four-wheel drive delivers better gradeability on rough terrain.

l Proportional control ensures smooth driving, precise positioning and comfortable operation.

l Continuous 360° turntable rotation expands the operational area and makes operations more convenient.

l Swing out engine tray for easy access and maintenance.

l Intelligent self-diagnostic system for quick troubleshooting.


  • 27.9m(91.5ft)
    Max. Working Height
  • 340kg(750lbs)
    Platform Capacity
  • 2.5m(8.2ft)
    Machine Width
  • 23.32m(76.5ft)
    Horizontal Outreach
  • 18000kg(39683lbs)
    Machine Weight
ModelsT26JT85J
Measurements
Work Height Max.27.9m91.5ft
Platform Height25.9m84.9ft
Horizontal Outreach23.32m76.5ft
Below Ground Reach2.89m9.48ft
Platform Length2.44m96in
Platform Width0.91m36in
Platform Capacity250/340kg551/750lbs
A-Stowed Length12.6m41.3ft
B-Overall Width2.5m8.2ft
C-Stowed Height2.86m9.38ft
D-Wheelbase2.85m9.35ft
E-Ground Clearance0.44m1.44ft
Productivity
Max. Platform Occupants22
Turntable Rotation360°Continuous
Turntable Tailswing1.42m4.66ft
Drive Speed-Stowed4.8km/h3mph
Drive Speed-Raised0.5km/h0.5mph
Gradeability-Stowed45%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside3.66m12ft
Turning Radius-Outside6.55m21.5ft
Max.Slope2.5/4.5°
Tries TypeRT Foam-filled
Tires Size18-625
Power
Power

Deutz TD2.9L4 55.4kw/74.3hp

Fuel Tank Capacity100L26.4gal
Hydraulic System
Hydraulic Oil Capacity180L47.5gal
Weight
Machine Weight(CE)18000kg39683lbs

Standard features

Proportional control

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Platform auto-leveling system

Emergency stop button

On-board diagnostic system

Oscillating axle

Four-wheel drive and break

Overtilt protection system

Anti-crush protection

Horn/Hour meter


Options

AC power to platform

Platform tool box

EuroⅤ engine

T4F engine


PRODUCT VIDEO

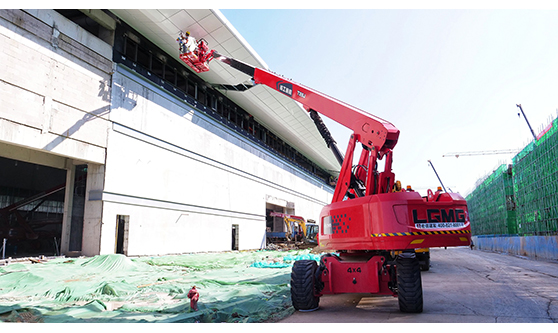

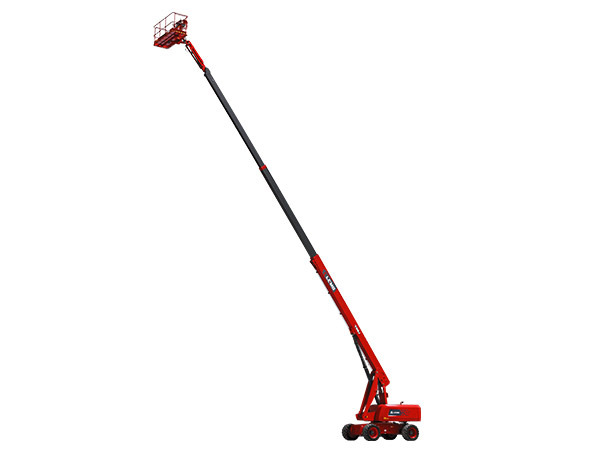

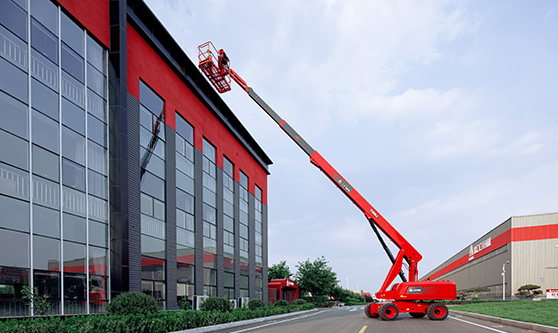

PRODUCT PICTURES
