The second generation of scissors lifts has been improved in various aspects, such as performance and design, which makes them even more convenient to maintain and safer to operate.
● Large lower control panel
● Entire range designed for Indoor and outdoor use
● Universal key components
● More convenient to maintain
● Optional lithium battery for the entire product range

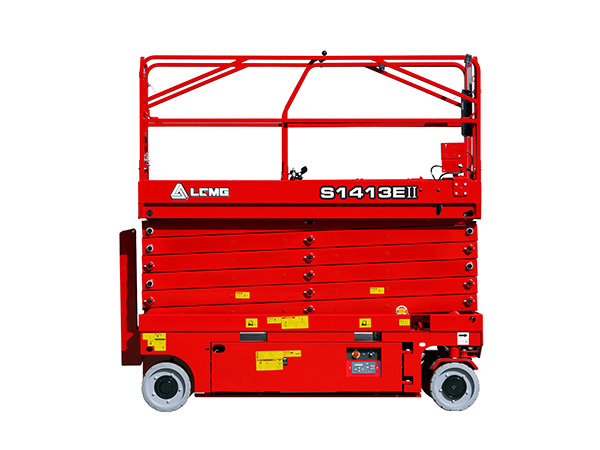

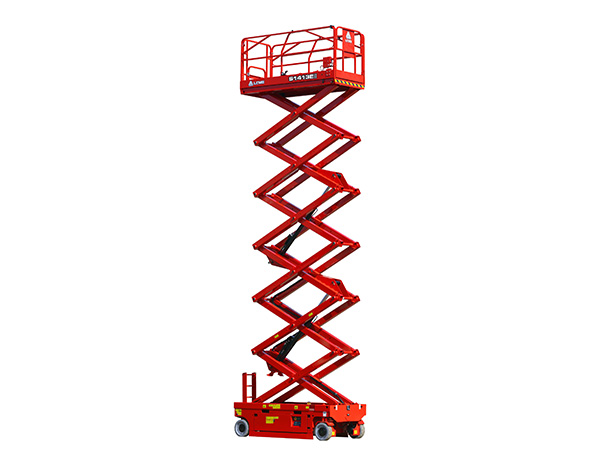

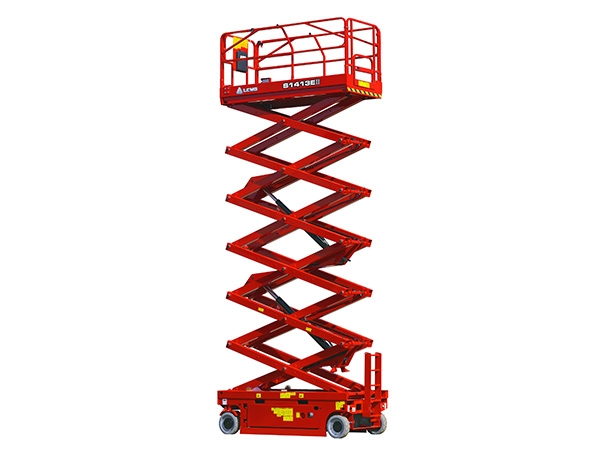

| Models | S1413EⅡ | S4650EⅡ |
| Measurements | ||
| Work Height Max. | 15.8/10m (in/out) | 51'10''/32'9'' (in/out) |
| A-Platform Height-Raised | 13.8/8m (in/out) | 45'3''/26'3'' (in/out) |
| B-Platform Length | 2.64m | 8'8'' |
| C-Platform Width | 1.12m | 3'8'' |
| D-Overall Length | 2.8m | 9'2'' |
| E-Overall Width | 1.3m | 4'3'' |
| F-Overall Height-Guardrails Up | 2.74m | 9' |
| G-Overall Height-Guardrails Down | 1.94m | 6'4'' |
| H-Extension Deck | 0.9m | 2'11'' |
| I-Wheelbase | 2.22m | 7'3'' |
| Ground Clearance(Stowed/Raised) | 105/20mm | 4''/1'' |
| Productivity | ||
| Max. Platform Occupants | 2 (in) /1 (out) | |
| Platform Capacity | 320kg | 705 lbs |
| Platform Capacity-Extension Deck | 120kg | 265 lbs |
| Drive Height | Full Height | |
| Gradeability-Stowed | 25% | |
| Min. Turning Radius | 2.85m | 9'4'' |
| Raise/Lower Speed | 80s /65s | |
| Brakes | Front-wheel Brake | |
| Drive Mode | 4×2 | |
| Tire Type | Solid Non-marking | |
| Tire Size | 380*130mm | 15''x5'' |
| Ground Pressure, Tyres | 1378 kPa | 199.9 psi |
| Power | ||
| Power Source | 24V (4x6V) 300Ah, FLA | |
| Power Source (Lithium Battery) | 24V 230Ah | |
| Hydraulic System | ||
| Hydraulic Oil Capacity | 25.5L | 6.7gal |
| Weight | ||
| Machine Weight(CE/ANSI) | 3500kg | 7716 lbs |
STANDARD FEATURES：
Indoor and outdoor rated
Proportional control
Foldable guardrail
Emergency stop device
Manual brake release
Emergency descent
Swing-out component tray
Pothole guard
Self-lock entry gate
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
All motions alarm
Full-height drive
Intelligent diagnostic system
Solid non-marking tires
OPTIONAL：
AC power to platform
Anti-collision protection
Biodegradable hydraulic oil
Maintenance-free battery
Voice alarm system
Telematics
