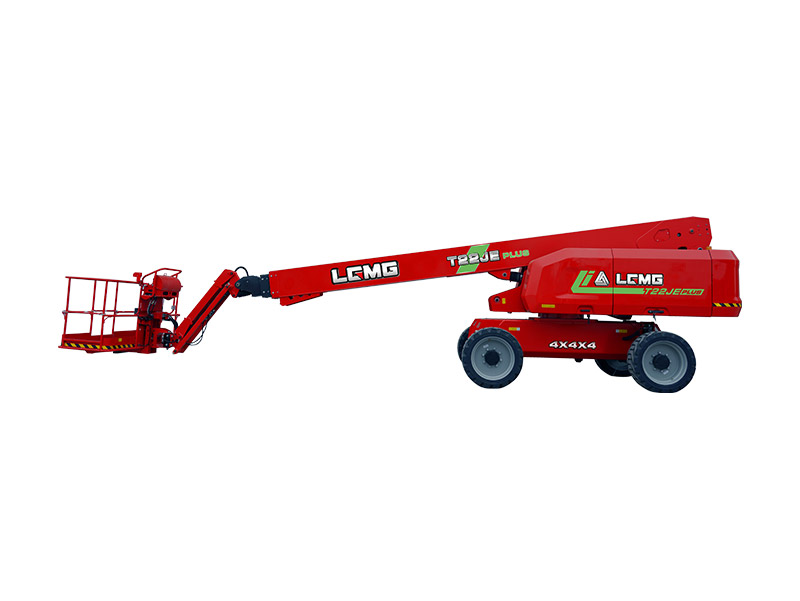

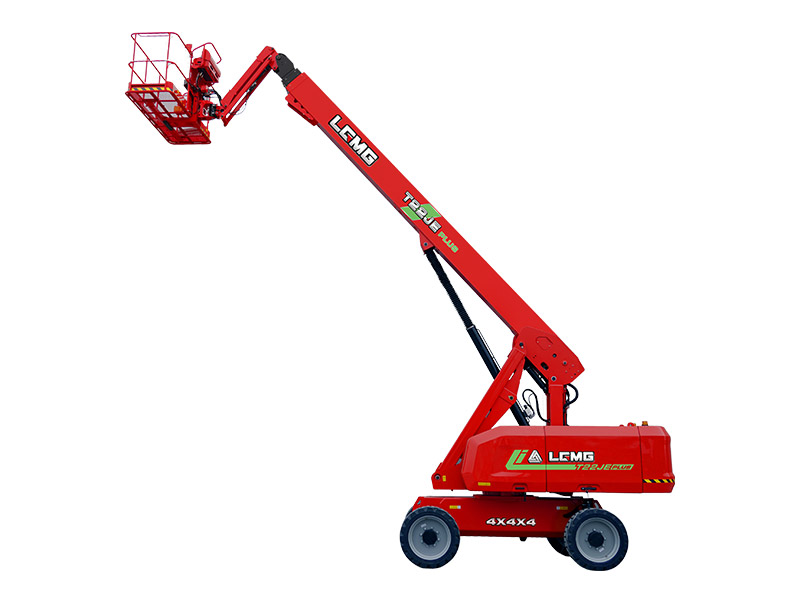

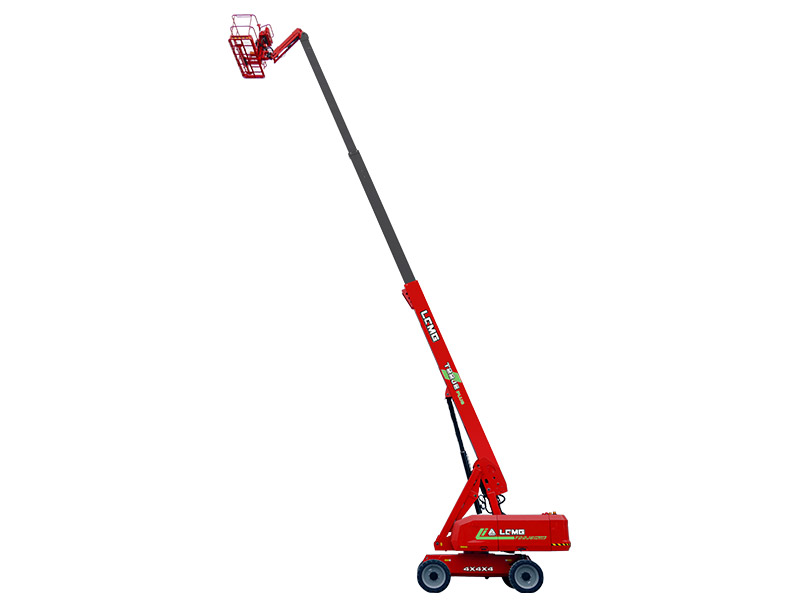

LGMG's new electric telescopic boom aerial work platform is equipped with a lithium battery, which has the advantages of low noise and zero emissions.
The max working height of the platform ranges from 21.8 to 29.8 meters (71'6" /97'9" ) . Platform accommodates up to 3 people and 450/300kg (992/661 lbs) dual capacity design for increased work efficiency.
Excellent rough terrain performance, stability and operating precision, suitable for various harsh working environments.
l Completely electric drive, noiseless, zero-emission, 100% maintenance-free
l Smoother maneuvering, precise positioning and comfortable operation
l Universal key components
l Intelligent self-diagnostic system
| MODELS | T22JE | T72JE |
| Measurements | ||
| Work Height Max. | 23.8m | 78'1'' |
| Platform Height | 21.8m | 71'6'' |
| Horizontal Outreach | 16.6m | 54'6'' |
| Platform Length | 2.44m | 8' |
| Platform Width | 0.9m | 2'11'' |
| A- Length-Stowed | 11m | 36'1'' |
| Length-Transport(jib tucked) | 9.03m | 29'8'' |
| B-Overall Width | 2.5m | 8'2'' |
| C- Height-Stowed | 2.77m | 9'1'' |
| Height-Transport | 2.88m | 9'5'' |
| D-Wheelbase | 2.51m | 8'3'' |
| E-Ground Clearance | 0.4m | 1'4'' |
| PRODUCTIVITY | ||
| Platform Capacity(unrestricted) | 300kg | 661 lbs |
| Platform Capacity(restricted) | 450kg | 992 lbs |
| Max. Platform Occupancy | 2（unrestricted）/ 3 (restricted) | |
| Turntable Rotation | 360°Continuous | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 1.9m | 6'3'' |
| Turning Radius-Outside | 3.9m | 12'10'' |
| Max.Slope | 5°/5° | |
| Tires Type | Foam-filled non-marking | |
| Tires Size | 355/55D 625 | |
| Ground Pressure, Tyres | 652 kPa | 94.6 psi |
| POWER | ||
| Power Source | 80V DC 375Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Volume | 120L | 31.7gal |
| WEIGHT | ||
| Machine Weight(CE/ANSI) | 12300kg | 27117 lbs |
Standard features
· Proportional control
· Overload sensing system
· Descent alarm
· Horn/Hour meter
· Flashing beacons
· Platform tool box
· Telematics connector
· Intelligent diagnostic system
· Auto-leveling platform
· Emergency stop button
· Oscillating axle
· Over-tilt protection system
· Anti-collision protection
· Platform control cover
· Cylinder bellows
· RT foam-filled tires
Optional
· AC power to platform
· Telematics
· Glazier kit
· Auxiliary rail
· Half-height mesh platform
· Solid non-marking tires
· Solid tires
· Foam-filled tires
· Foam-filled non-marking tires
· Biodegradable hydraulic oil
