l The structural components are designed to be lightweight yet solid and durable, effectively reducing energy consumption, and improving working time.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Energy-saving and highly efficient hydraulic system with strong anti-pollution capabilities to ensure stable system operation and reduced maintenance costs.
l The powertrain system provides faster response, smooth transmission, and high transmission efficiency.
l Oscillating axles and a four-wheel-drive system design provide outstanding rough terrain capability.

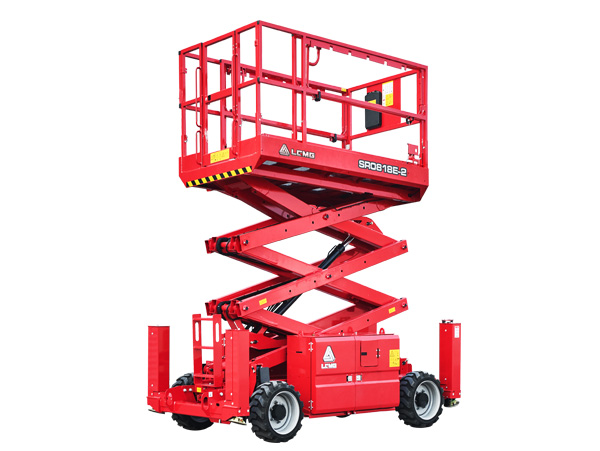

| MODELS | SR0818E-2 | SR2669E-2 |
| Measurements | Metric | Imperial |
| Working Height Max. | 9.8m | 32'2'' |
| A-Platform Height-Raised | 7.8m | 25'7'' |
| B-Platform Length | 2.79m | 9'2'' |
| C-Extension Deck | 1.52m | 5' |
| D-Platform Length with Extension Deck | 4.31m | 14'2'' |
| E-Platform Width | 1.6m | 5'3'' |
| F-Overall Length | 3.76m | 12'4'' |
| G-Overall Width | 1.79m | 5'10'' |
| H-Overall Height-Guardrails Up | 2.52m | 8'3'' |
| I-Overall Height-Guardrails Down | 1.83m | 6' |
| J-Wheelbase | 2.3m | 7'7'' |
| Ground Clearance | 0.215m | 8.5'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 4(in) / 4(out) | |
| Platform Capacity | 680kg | 1499 lbs |
| Platform Capacity-Extension Deck | 140kg | 310 lbs |
| Drive Height | Full Height | Full Height |
| Gradeability-Stowed | 35% | |
| Min. Turning Radius | 3m | 9'10'' |
| Raise/Lower Speed | 35s / 30s | |
| Brakes | Rear-wheel brake | |
| Drive Mode | 4x4x2 | |
| Tires Type | Foam-filled Non-marking | |
| Tires Size | 663x283mm | 26''x11'' |
| Ground Pressure, Tyres | 471.5 kPa | 68.4 psi |
| POWER | ||
| Power Source | 72V 100Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 50 L | 13.2gal |
| WEIGHT | ||
| Machine Weight | 4190kg | 9237 lbs |
STANDARD FEATURES
Proportional control
Foldable guardrail
Emergency descent
Tubing explosion-proof system
Intelligent diagnostic system
Flashing beacons
Floating function
Automatic braking system
Over-tilt protection system
Safety arm for troubleshooting
Telematics
Alarm
One-way platform extension deck
Hydraulic outriggers
Non marking tire
OPTIONAL
AC power to platform
