l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Proportional lift and drive controls deliver smoother maneuvering, precise positioning and comfortable operation.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.

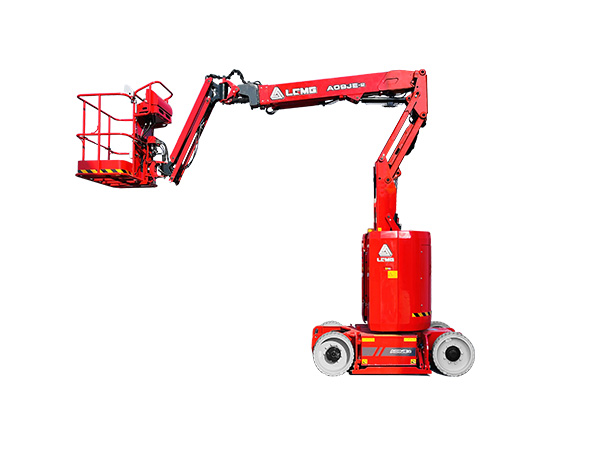

| MODELS | A09JE-2 | A30JE-2 |
| Measurements | Metric | Imperial |
| Work Height Max. | 11m | 36'1" |
| Platform Height Max. | 9m | 29'6" |
| Horizontal Outreach Max. | 6.25m | 20'6" |
| Up and Over Height | 4.12m | 13'6" |
| Platform Length | 1.17m | 3'10" |
| Platform Width | 0.76m | 2'6" |
| A- Length-Stowed | 5.5m | 18'1" |
| Length-Transport(jib tucked) | 3.62m | 11'11" |
| B- Overall Width | 1.19m | 3'11" |
| C- Height-Stowed | 2m | 6'7" |
| Height-Transport | 2.52m | 8'3" |
| D-Wheelbase | 1.65m | 5'5" |
| E-Ground Clearance | 0.09m | 4" |
| PRODUCTIVITY | ||
| Platform Capacity(unrestricted) | 230kg | 507 lbs |
| Max. Platform Occupants | 1 (in)/2(out) | |
| Turntable Rotation | 355° | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 35% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 1.67m | 5'6" |
| Turning Radius-Outside | 3.38m | 11'1" |
| Max. Slope | 3°/4.5° | |
| Drive Mode | 2WD, 2WS | |
| Tire Type | Solid Non-marking | |
| Tire Models | 22*7 | |
| Ground Pressure, Tyres | 730 kPa | 106 psi |
| POWER | ||
| Power Source | 48V 260Ah | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 15L | 4gal |
| WEIGHT | ||
| Machine Weight | 6700kg | 14771 lbs |
STANDARD FEATURES
Auto-leveling platform
Full proportional joystick control
Descent alarm
Flashing beacons
Horn/Hour meter
Over-tilt protection system
Emergency stop button
Intelligent self-diagnosis function
Cylinder bellows
OTA remote upgrade
Dustproof components
Platform tool box
AC power to platform
Over-head anti-collision protection
OPTIONAL
Platform work light
Half-height mesh platform
Platform auxiliary guardrail
Platform pipe rack
