l Full-time active oscillating axles, combined with a four-wheel-drive system, provide outstanding off-road capability, smooth transmission, and comfortable driving.
l new parallelogram tower boom design with high rigidity and anti-torque provides an impressive reach and excellent obstacle-surmounting ability.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.

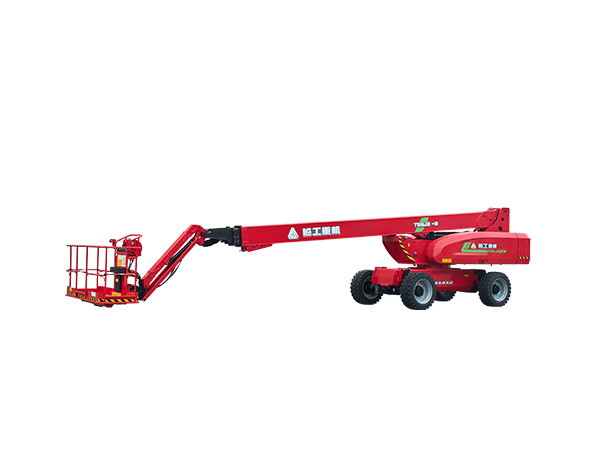

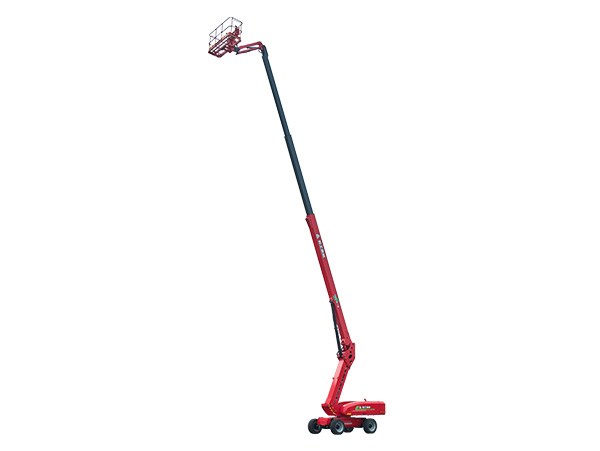

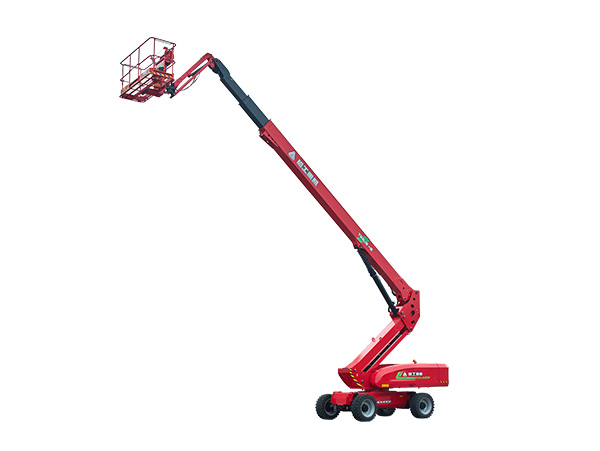

| MODELS | T28JE-2 | T92JE-2 |
| Measurements | Metric | Imperial |
| Work Height Max. | 30.2m | 99'1" |
| Platform Height Max. | 28.2m | 92'6" |
| Horizontal Outreach Max. | 21.42m | 70'3" |
| Platform Length | 2.44m | 8' |
| Platform Width | 0.9m | 2'11" |
| A- Length-Stowed | 12.63m | 41'5" |
| Length-Transport(jib tucked) | 10.36m | 34' |
| B- Overall Width | 2.5m | 8'2" |
| C- Height-Stowed | 2.83m | 9'3" |
| Height-Transport | 3.13m | 10'3" |
| D-Wheelbase | 2.85m | 9'4" |
| E-Ground Clearance | 0.4m | 1'4" |
| PRODUCTIVITY | ||
| Platform Capacity(unrestricted) | 300kg | 661 lbs |
| Platform Capacity(restricted) | 450kg | 992 lbs |
| Max. Platform Occupants | 2（unrestricted）/3(restricted) | |
| Turntable Rotation | 360°Continuous | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 4m | 13'1" |
| Turning Radius-Outside | 7.15m | 23'5" |
| Max. Slope | 5°/5° | |
| Tire Type | Foam-filled Non-marking | |
| Tire Models | 15-625 | |
| Ground Pressure, Tyres | 932.2 kPa | 135.2 psi |
| POWER | ||
| Lithium | 80V 375Ah | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 115L | 30.4 gal |
| WEIGHT | ||
| Machine Weight | 16500kg | 36376 lbs |
STANDARD FEATURES
OTA remote upgrade
Intelligent self-diagnosis function
Auto-leveling platform
Hydraulic rotating platform 180°
Full proportional joystick control
Load sensitive system
Over-tilt protection system
Emergency stop button
Descent alarm
Flashing beacons
Horn/Hour meter
Dual load 300kg/450kg
Over-head anti-collision protection
Full time active oscillation of axles
OPTIONAL
AC power to platform
Platform work light
Half-height mesh platform
Platform storage rack
Platform auxiliary guardrail
