l The structural components are designed to be lightweight yet solid and durable, effectively reducing energy consumption, and improving working time.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Optimized pipeline layout to reduce energy loss and leakage risk while improving system reliability and durability.
l Operate with universal electrical interfaces for compatibility across various application scenarios.
l Multiple battery options: FLA, AGM, and Li-battery.

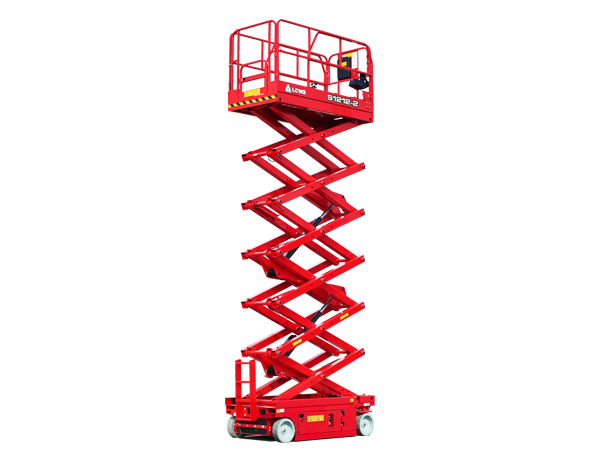

| MODELS | S1212-2 | S4046-2 |
| Measurements | Metric | Imperial |
| Working Height Max. | 14m/9.5m (in/out) | 45'11''/31'2'' (in/out) |
| A-Platform Height-Raised | 12m/7.5m (in/out) | 39'4''/24'7'' (in/out) |
| B-Platform Length | 2.26m | 7'5'' |
| C-Extension Deck | 0.9m | 2'11'' |
| D-Platform Length with Extension Deck | 3.16m | 10'4'' |
| E-Platform Width | 1.12m | 3'8'' |
| F-Overall Length | 2.43m | 8' |
| G-Overall Width | 1.19m | 3'11'' |
| H-Overall Height-Guardrails Up | 2.63m | 8'8'' |
| I-Overall Height-Guardrails Down | 1.8m | 5'11'' |
| J-Wheelbase | 1.85m | 6'1'' |
| Ground Clearance (Stowed/Raised) | 100/20mm | 4''/0.8'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 2(in) / 1(out) | |
| Platform Capacity | 320kg | 705 lbs |
| Platform Capacity-Extension Deck | 120kg | 265 lbs |
| Drive Height | Full Height | Full Height |
| Gradeability-Stowed | 25% | |
| Min. Turning Radius | 2.7m | 8'10'' |
| Raise/Lower Speed | 65s / 53s | |
| Brakes | Front-wheel Brake | |
| Drive Mode | 4x2 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 380x130mm | 15''x5'' |
| Ground Pressure, Tyres | 1264 kPa | 183 psi |
| POWER | ||
| Lead-acid Battery | 24V(4*6V), 220Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 21 L | 5.6 gal |
| WEIGHT | ||
| Machine Weight | 2940kg | 6482 lbs |
STANDARD FEATURES
Proportional control
Foldable guardrail
Emergency descent
Tubing explosion-proof system
Intelligent diagnostic system
Flashing beacons
Floating function
Automatic braking system
Over-tilt protection system
Safety arm for troubleshooting
Telematics
Alarm
One-way platform extension deck
Hydraulic outriggers
Non marking tires
OPTIONAL
AC power to platform
