l Full-time active oscillating axles, combined with a four-wheel-drive system, provide outstanding off-road capability, smooth transmission, and comfortable driving.

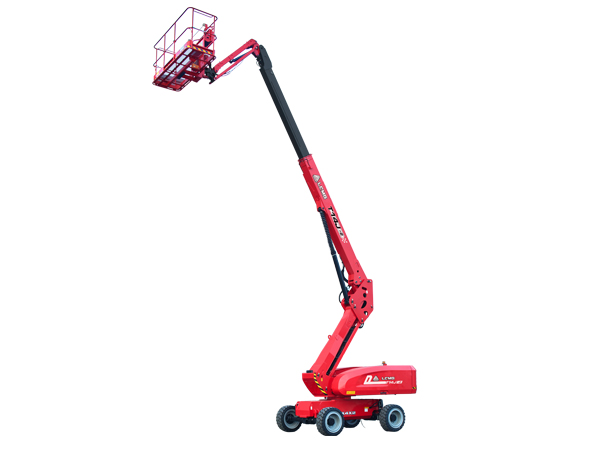

l The new parallelogram tower boom design with high rigidity and anti-torque provides an impressive reach and excellent obstacle-surmounting ability.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.
| MODELS | T14J-2 | T45J-2 |
| Measurements | Metric | Imperial |
| Work Height Max. | 16.3m | 53'6" |
| Platform Height Max. | 14.3m | 46'11" |
| Horizontal Outreach Max. | 9.06m | 29'9" |
| Platform Length | 2.44m | 8' |
| Platform Width | 0.9m | 2'11" |
| A- Length-Stowed | 7.94m | 26'1" |
| Length-Transport(jib tucked) | 5.65m | 18'6" |
| B- Overall Width | 2.42m | 7'11" |
| C- Height-Stowed | 2.65m | 8'8" |
| Height-Transport | 3.1m | 10'2" |
| D-Wheelbase | 2.4m | 7'10" |
| E-Ground Clearance | 0.37m | 1'3" |
| PRODUCTIVITY | ||
| Platform Capacity(unrestricted) | 300kg | 661 lbs |
| Platform Capacity(restricted) | 450kg | 992 lbs |
| Max. Platform Occupants | 2（unrestricted）/3(restricted) | |
| Turntable Rotation | 360°Continuous | |
| Drive Speed-Stowed | 4km/h | 2.5mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 3m | 9'10" |
| Turning Radius-Outside | 5.8m | 19' |
| Max. Slope | 5°/5° | |
| Tire Type | Solid | |
| Tire Models | 33*12-20 | |
| Ground Pressure, Tyres | 393.2 kPa | 57 psi |
| POWER | ||
| Power Source | Kubota 18.2kW/24.4hp | |
| Fuel Tank Capacity | 65L | 17.2 gal |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 100L | 26.4 gal |
| WEIGHT | ||
| Machine Weight | 6700kg | 14771 lbs |
STANDARD FEATURES
OTA remote upgrade
Intelligent self-diagnosis function
Auto-leveling platform
Hydraulic rotating platform 180°
Full proportional joystick control
Load sensitive system
Over-tilt protection system
Emergency stop button
Descent alarm
Flashing beacons
Horn/Hour meter
Dual load 300kg/450kg
Over-head anti-collision protection
Full-time active oscillating axles
AC power to platform
OPTIONAL
Platform work light
Platform auxiliary guardrail
Half-height mesh platform
Platform pipe rack
