LGMG's crawler scissor lift excels in challenging any complex environments, offering outstanding performance on slopes and uneven ground.
l With a compact size and the ability to turn 360 degrees on the spot, the machine is highly maneuverable, allowing for precise operation in narrow space.
l The crawler chassis has a large contact area with ground to provide superior obstacle-surpassing capabilities while maintaining smooth operation and stability.
l The innovative crawler design allows a uniform distribution of total weight to lower ground pressure and prevent damage.

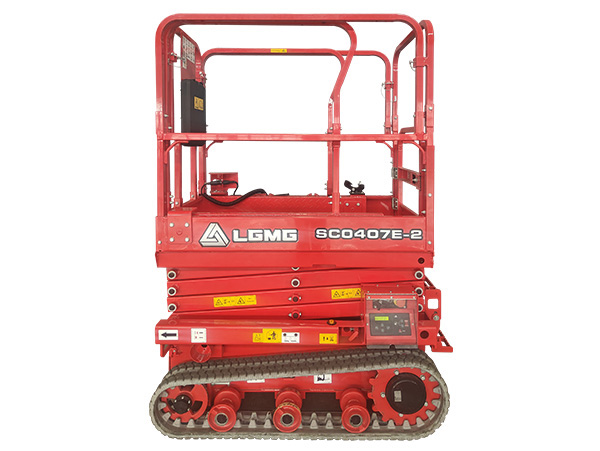

| MODELS | SC0407E-2 | |
| Measurements | Metric | Imperial |
| Working Height Max. | 6.5m | 21'4'' |
| A-Platform Height-Raised | 4.5m | 14'9'' |
| B-Platform Length | 1.29m | 4'3'' |
| C-Platform Width | 0.7m | 2'4'' |
| D-Overall Length | 1.495m | 4'11'' |
| E-Overall Width | 0.78m | 2'7'' |
| F-Overall Height-Guardrails Up | 1.995m | 6'7'' |
| G-Extension Deck | 0.6m | 2' |
| H-Wheelbase | 0.95m | 3'1'' |
| Ground Clearance | 80mm | 3'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 1(in) / 0(out) | |
| Platform Capacity | 200kg | 441 lbs |
| Platform Capacity-Extension Deck | 115kg | 254 lbs |
| Gradeability-Stowed | 30% | 30% |
| Min. Turning Radius | In-situ steering | |
| Raise/Lower Speed | 20s/20s | |
| POWER | ||
| Power Source | 24V(2×12V), 95Ah, AGM | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 4L | 1.1gal |
| WEIGHT | ||
| Machine Weight | 800kg | 1764 lbs |
Standard features
Proportional controls
Emergency stop device
Emergency descent
Self-lock entry gate
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
All motions alarm
Intelligent diagnostic system
Foldable ladder
Non-marking crawlers
Maintenance-free battery
AC power to platform
Options
Anti-collision protection
Overload sensing system
Telematics
Biodegradable hydraulic oil
