l The structural components are designed to be lightweight yet solid and durable, effectively reducing energy consumption, and improving working time.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Energy-saving and highly efficient hydraulic system with strong anti-pollution capabilities to ensure stable system operation and reduced maintenance costs.
l The powertrain system provides faster response, smooth transmission, and high transmission efficiency.
l Oscillating axles and a four-wheel-drive system design provide outstanding rough terrain capability.

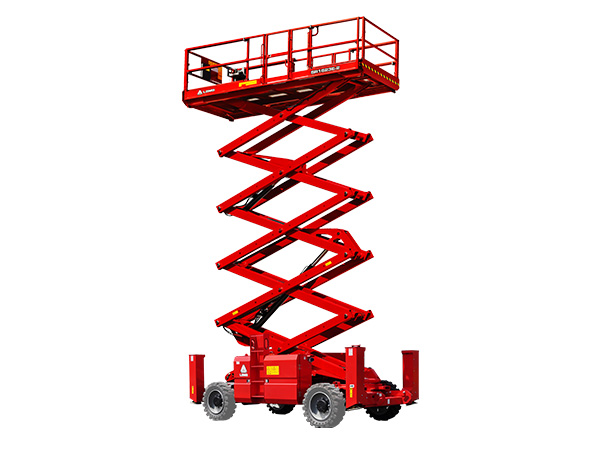

| MODELS | SR1623E-2 | SR5390E-2 |
| Measurements | Metric | Imperial |
| Working Height Max. | 18m | 59'1'' |
| A-Platform Height-Raised | 16m | 52'6'' |
| B-Platform Length | 4.81m | 15'9'' |
| C-Extension Deck | 1.45m/1.14m | 4'9"/3'9" |
| D-Platform Length with Extension Deck | 7.4m | 24'3'' |
| E-Platform Width | 1.83m | 6' |
| F-Overall Length | 4.9m | 16'1'' |
| G-Overall Width | 2.3m | 7'7" |
| H-Overall Height-Guardrails Up | 3.23m | 10'7'' |
| I-Overall Height-Guardrails Down | 2.53m | 8'4" |
| J-Wheelbase | 2.85m | 9'4'' |
| Ground Clearance | 0.255m | 10'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 4(in) / 4(out) | |
| Platform Capacity | 680kg | 1500 lbs |
| Platform Capacity-Extension Deck | 230kg | 507 lbs |
| Drive Height Max. | 9m | 29'6" |
| Gradeability-Stowed | 40% | |
| Min. Turning Radius | 3.6m | 11'10'' |
| Raise/Lower Speed | 60s / 55s | |
| Brakes | Rear-wheel brake | |
| Drive Mode | 4x2 | |
| Tires Type | Foam-filled Non-marking | |
| Tires Size | 812x305mm | 32''x12'' |
| Ground Pressure, Tyres | 831 kPa | 120.5 psi |
| POWER | ||
| Power Source | 77.28V 228Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 80 L | 21.1gal |
| WEIGHT | ||
| Machine Weight | 8100kg | 17857 lbs |
STANDARD FEATURES
Proportional control
Foldable guardrail
Emergency descent
Tubing explosion-proof system
Intelligent diagnostic system
Flashing beacons
Floating function
Automatic braking system
Over-tilt protection system
Safety arm for troubleshooting
Telematics
Alarm
One-way platform extension deck
Hydraulic outriggers
AC power to platform
