l The four-wheel-drive system provides outstanding off-road capability, smooth transmission, and comfortable driving.
l The new expandable axle structure is designed for compact transportation and work in confined area.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.

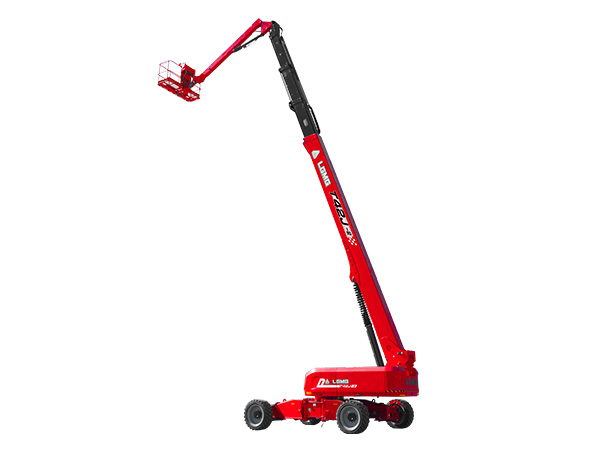

| MODELS | T42J-2 | T138J-2 |
| Measurements | Metric | Imperial |
| Work Height Max. | 44.15m | 144'10" |
| Platform Height Max. | 42.15m | 138'3" |
| Horizontal Outreach Max. | 24.5m | 80'5" |
| Platform Length | 2.3m | 7'7" |
| Platform Width | 0.9m | 2'11" |
| A- Length-Stowed | 11.92m | 39'1" |
| Length-Transport(jib tucked) | 11.92m | 39'1" |
| B- Overall Width (axles retracted) | 2.4m | 7'10" |
| C- Overall Width (axle extended) | 4m | 13'1" |
| D- Height-Stowed | 2.8m | 9'2" |
| Height-Transport | 2.8m | 9'2" |
| E-Wheelbase | 4.16m/4.07m | 13'8"/13'4" |
| F-Ground Clearance | 0.34m | 1'1" |
| PRODUCTIVITY | ||
| Platform Capacity(unrestricted) | 300kg | 661 lbs |
| Platform Capacity(restricted) | 450kg | 992 lbs |
| Max. Platform Occupants | 2（unrestricted）/3(restricted) | |
| Turntable Rotation | 360°Continuous | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.6km/h | 0.37mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside (axles retracted) | 6.9m | 22'8" |
| Turning Radius-Outside (axles retracted) | 9.3m | 30'6" |
| Turning Radius-Inside (axles extended) | 2.6m | 8'6" |
| Turning Radius-Outside (axles extended) | 6.2m | 20'4" |
| Max. Slope | 5°/5° | |
| Tire Type | Foam-filled | |
| Tire Models | 445/50D 710 | |
| Ground Pressure, Tyres | 1258.1 kPa | 182.5 psi |
| POWER | ||
| Power Source | Kubota 54.6kW/73.2hp | |
| Fuel Tank Capacity | 150L | 39.6 gal |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 250L | 66gal |
| WEIGHT | ||
| Machine Weight | 22300kg | 49163 lbs |
STANDARD FEATURES
OTA remote upgrade
Intelligent self-diagnosis function
Auto-leveling platform
Hydraulic rotating platform 180°
Full proportional joystick control
Load sensitive system
Over-tilt protection system
Emergency stop button
Descent alarm
Flashing beacons
Horn/Hour meter
Dual load 300kg/450kg
Over-head anti-collision protection
AC power to platform
OPTIONAL
Platform work light
Platform auxiliary guardrail
Half-height mesh platform
Platform pipe rack
