l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Operates with universal electrical interfaces for compatibility across various application scenarios.
l Spool valve as main valve: energy-saving and highly efficient with strong anti-pollution capabilities to ensure stable system operation.
l Optimized pipeline layout to reduce energy loss and leakage risk while improving system reliability and durability.

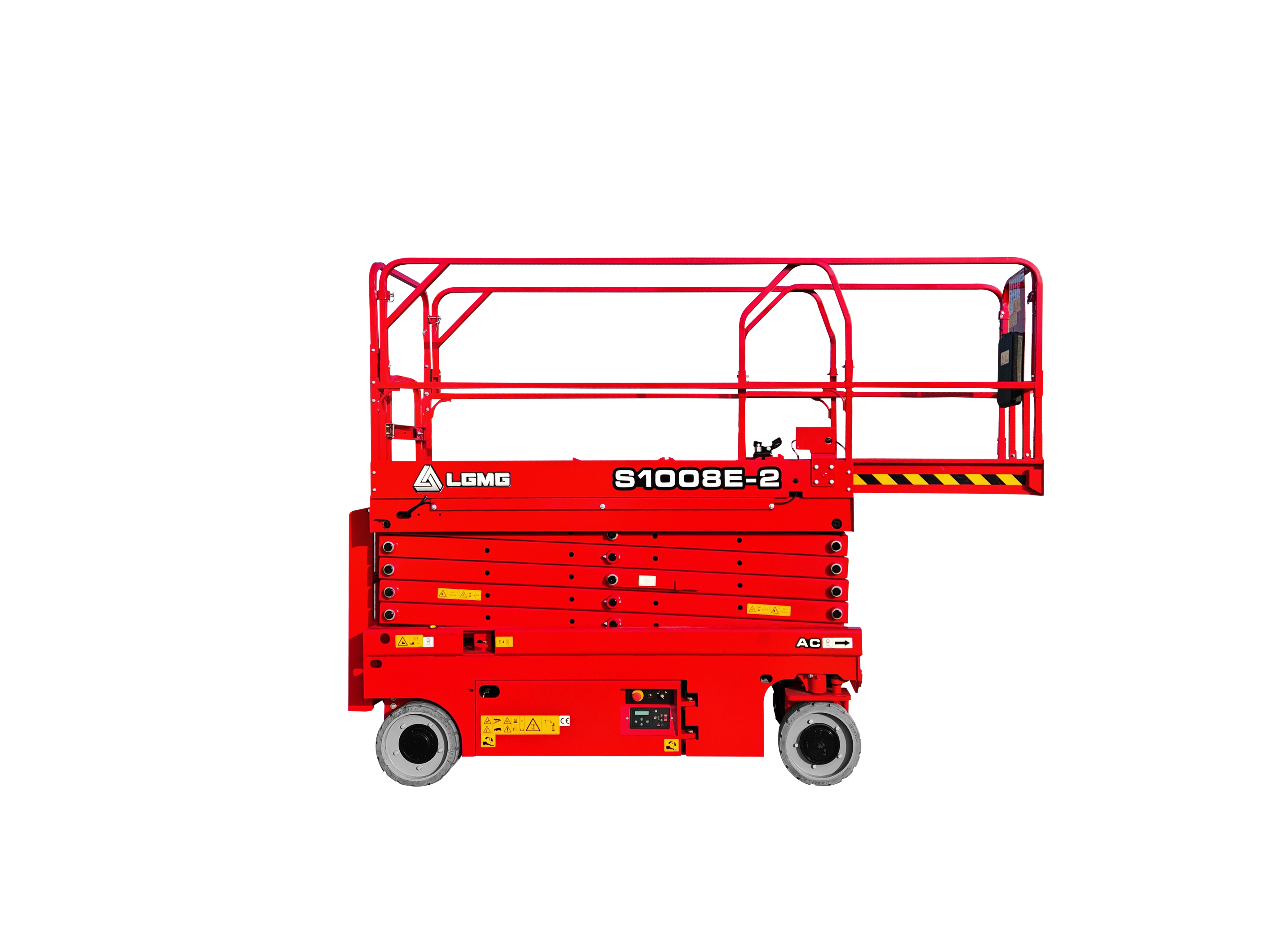

| MODELS | S1008E-2 | S3232E-2 |
| Measurements | Metric | Imperial |
| Working Height Max. | 12m/9m (in/out) | 39'4''/29'6'' (in/out) |
| A-Platform Height-Raised | 10m/7m (in/out) | 32'10''/23' (in/out) |
| B-Platform Length | 2.26m | 7'5'' |
| C-Extension Deck | 0.9m | 2'11'' |
| D-Platform Length with Extension Deck | 3.16m | 10'4'' |
| E-Platform Width | 0.79m | 2'7'' |
| F-Overall Length | 2.48m | 8'2" |
| G-Overall Width | 0.83m | 2'9'' |
| H-Overall Height-Guardrails Up | 2.45m | 8' |
| I-Overall Height-Guardrails Down | 2.05m | 6'9'' |
| J-Wheelbase | 1.87m | 6'2'' |
| Ground Clearance (Stowed/Raised) | 100/20mm | 4''/0.8'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 2(in) / 1(out) | |
| Platform Capacity | 250kg | 551 lbs |
| Platform Capacity-Extension Deck | 120kg | 265 lbs |
| Drive Height | Full Height | Full Height |
| Gradeability-Stowed | 25% | |
| Min. Turning Radius | 2.5m | 8'2'' |
| Raise/Lower Speed | 58s / 50s | |
| Brakes | Front-wheel Brake | |
| Drive Mode | 4x2 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 380x130mm | 15''x5'' |
| Ground Pressure, Tyres | 986.13 kPa | 143.03 psi |
| POWER | ||
| Lead-acid Battery | 24V(4*6V), 185Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 19 L | 5 gal |
| WEIGHT | ||
| Machine Weight | 3200kg | 7055 lbs |
STANDARD FEATURES
Proportional controls
Foldable guardrail
Emergency descent
Emergency stop button
Tubing explosion-proof system
Intelligent diagnostic system
Flashing beacons
Automatic braking system
Over-tilt protection system
Charging protection system
Safety arm for troubleshooting
Horn/Hour meter
Standard transport forklift holes
Pothole guard
Telematics
Swing-out component tray
Alarm
Manual brake release
Overload sensing system
OPTIONAL
AC power to platform
Anti-collision protection
