l Li-battery powered provides quiet and zero emission.
l 260/350kg (573 /772 Ibs) dual-capacity design, 2.44m (8' ) triple entry platform.
l Oscillating, full-time floating axels allow the wheels to grip to the ground when driving on hard, uneven terrain.
l Integrated four-wheel-drive system provides strong power, smooth transmission, and 45% gradeability.
l Equipped with three steering modes, and equipped with one-touch wheel alignment.
l Proportional lift and drive controls deliver smoother maneuvering, precise positioning and comfortable operation.

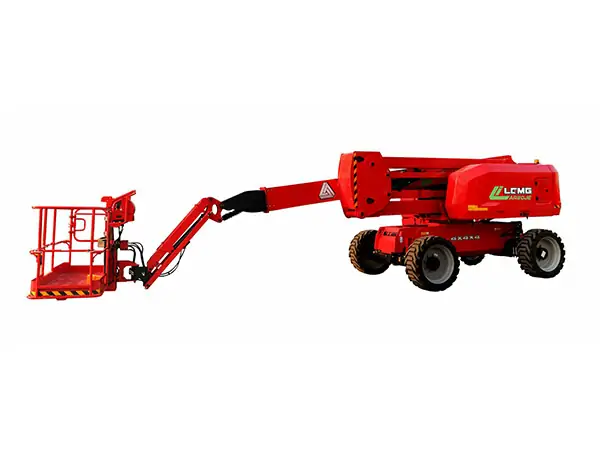

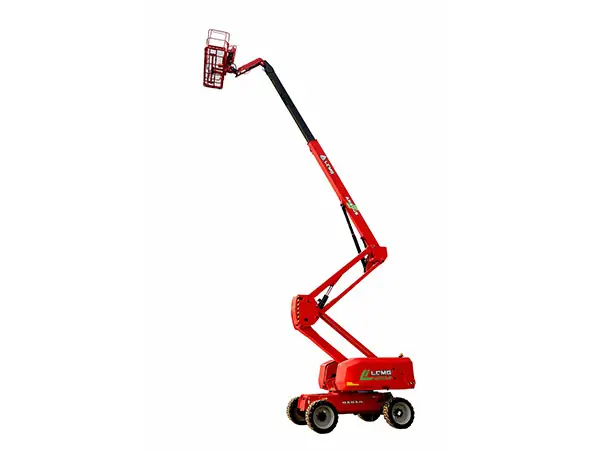

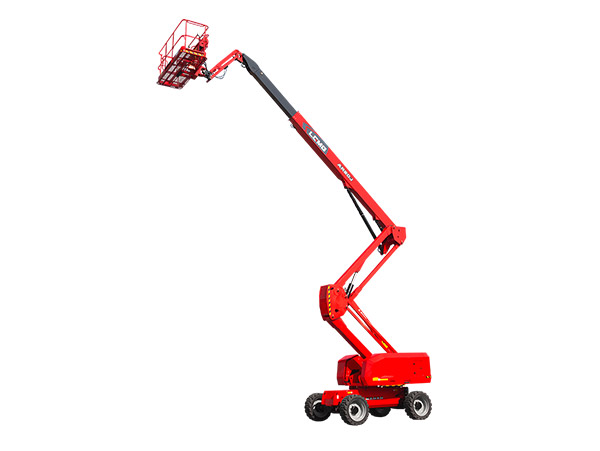

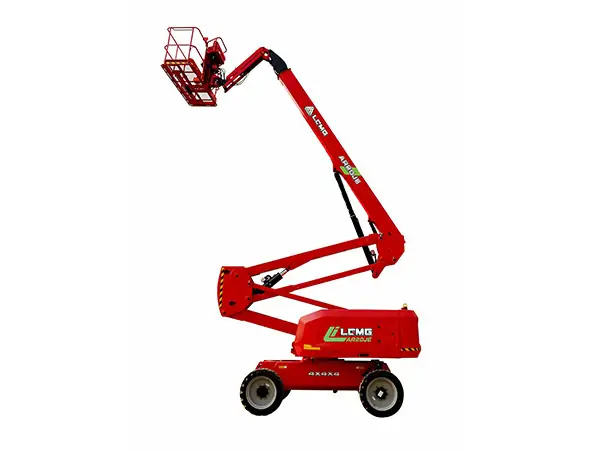

| Models | AR20JE | AR65JE |
| Measurements | Metric | US |
| Work Height Max. | 21.58m | 70'10'' |
| Platform Height(Raised) | 19.58m | 64'3'' |
| Horizontal Outreach | 12.37m | 40'7'' |
| Up and Over Height | 8.19m | 26'10'' |
| Platform Length | 2.44m | 8' |
| Platform Width | 0.9m | 2'11'' |
| Platform Capacity | 260/350kg | 573/772 lbs |
| A-Stowed Length | 9.42m | 30'11'' |
| Length-Transport (jib tucked） | 7.63m | 25' |
| B-Overall Width | 2.5m | 8'2'' |
| C-Stowed Height | 2.46m | 8'1'' |
| Height-Transport | 2.96m | 9'9'' |
| D-Wheelbase | 2.51m | 8'3'' |
| E-Ground Clearance | 0.4m | 1'4'' |
| Productivity | ||
| Max. Platform Occupancy | 2(unrestricted) / 3(restricted) | |
| Turntable Rotation | 360° | 360° |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | 45% |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 1.9m | 6'3'' |
| Turning Radius-Outside | 3.9m | 12'10'' |
| Max.Slope | 4°/4° | 4°/4° |
| Tire Type | Foam-filled non-marking | |
| Tire Size | 355/55D625 | |
| Power | ||
| Power Source | 80V 271Ah | |
| Hydraulic System | ||
| Hydraulic Oil Volume | 105L | 27.7gal |
| Weight | ||
| Machine Weight (CE/ANSI) | 9700kg | 21385 lbs |
Standard features
Proportional control
RT Foam-filled tires
Flashing beacons
Horn/Hour meter
Oscillating axle
Platform tool box
Cylinder bellows
Telematics connector
Auto-leveling platform
Emergency stop device
Anti-collision protection
Platform control cover
Over tilt protection system
Overload sensing system
Intelligent diagnostic system
Full-height drive
Optional
AC power to platform
Auxiliary rail
Half-height mesh platform
Solid tires
Telematics
Solid non-marking tires
Foam-filled non-marking tires
Biodegradable hydraulic oil
