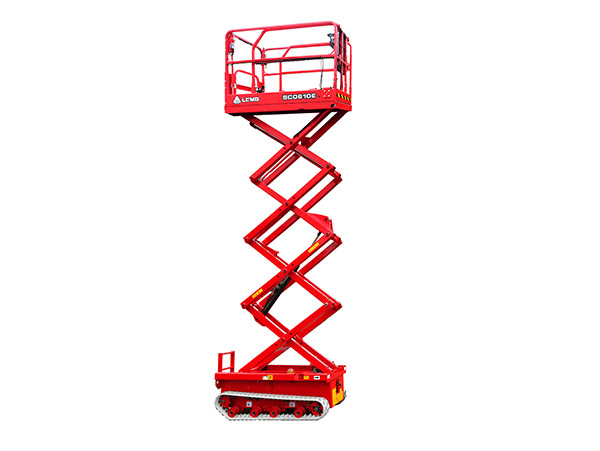

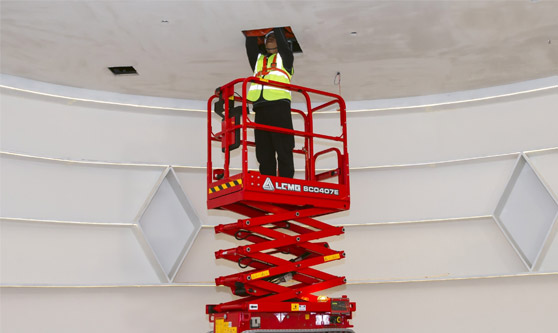

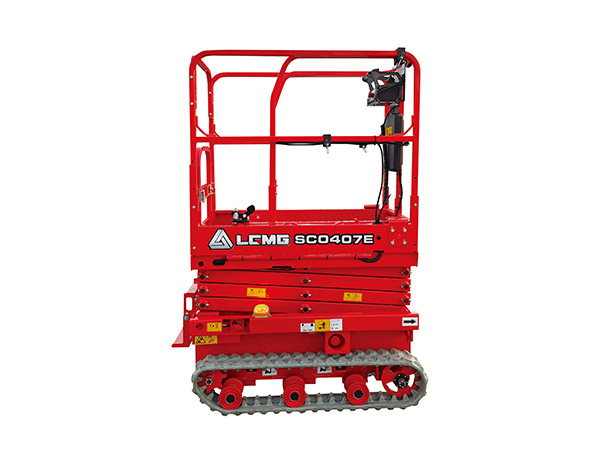

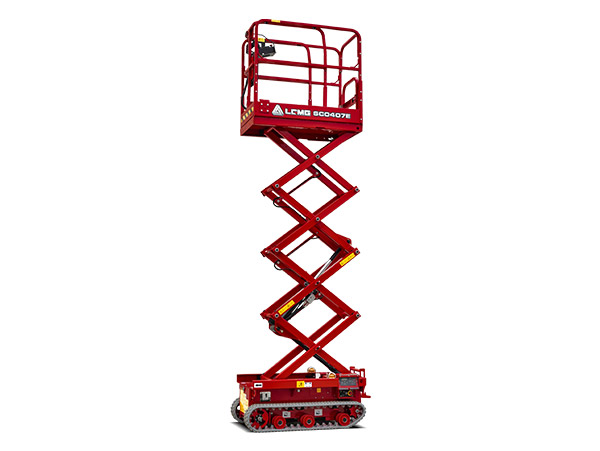

LGMG’s crawler scissor lift is easy to drive on slopes or uneven ground, and has excellent performance across obstacles, making it ideal for harsh construction environments.
l Compact in size with 360° turning on the spot
l Single joystick controller as standard, dual joysticks as optional
l Large-screen ECU, easy to operate, user friendly.
l Pull out battery tray
| MODELS | SC0407E | SC1532E |
| Measurements | Metric | Imperial |
| Working Height Max. | 6.5m | 21'4'' |
| A-Platform Height-Raised | 4.5m | 14'9'' |
| B-Platform Length | 1.29m | 4'3'' |
| C-Platform Width | 0.7m | 2'4'' |
| D-Overall Length | 1.47m | 4'10'' |
| E-Overall Width | 0.78m | 2'7'' |
| F-Overall Height-Guardrails Up | 1.99m | 6'6'' |
| G-Extension Deck | 0.6m | 2' |
| H-Wheelbase | 0.95m | 3'1'' |
| Ground Clearance | 118mm | 5'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 1/0 | |
| Platform Capacity | 200kg | 441 lbs |
| Platform Capacity-Extension Deck | 115kg | 254 lbs |
| Gradeability-Stowed | 25% | 25% |
| Min. Turning Radius | Turning on the spot | |
| Raise/Lower Speed | 20s/20s | |
| POWER | ||
| Power Source | 24V (2x12V)130Ah, AGM | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 4L | 1gal |
| WEIGHT | ||
| Machine Weight (CE/ANSI) | 800kg | 1764 lbs |
Standard features
Proportional control
Emergency stop device
Emergency descent
Self-lock entry gate
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
All motions alarm
Intelligent diagnostic system
Foldable ladder
Non-marking crawlers
Maintenance-free battery
Single joystick
Options
AC power to platform
Voice alarm system
Telematics
Dual joystick controller
Biodegradable hydraulic oil
