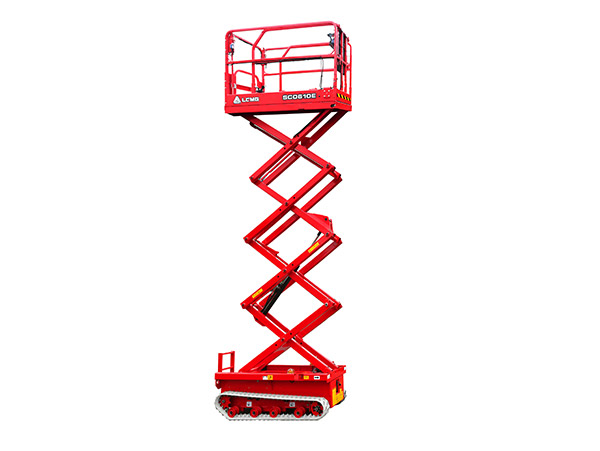

LGMG’s crawler scissor lift is easy to drive on slopes or uneven ground, and has excellent performance across obstacles, making it ideal for harsh construction environments.
l Compact in size with 360°turning on the spot, suitable for use in narrow spaces.
l Large-screen ECU, easy to operate, user friendly.
l Single joystick controller as standard, dual joysticks as optional.
l Pull out battery tray and removable side cover of motor make maintenance convenient.
| MODELS | SC0610E | SC2240E |
| Measurements | Metric | Imperial |
| Working Height Max. | 8.8m | 28'10'' |
| A-Platform Height-Raised | 6.8m | 22'4'' |
| B-Platform Length | 1.9m | 6'3'' |
| C-Platform Width | 0.73m | 2'5'' |
| D-Overall Length | 2.05m | 6'9'' |
| E-Overall Width | 0.99m | 3'3'' |
| F-Overall Height-Guardrails Up | 2.19m | 7'2'' |
| G-Extension Deck | 0.9m | 2'11'' |
| H-Wheelbase | 1.55m | 5'1'' |
| Ground Clearance | 115mm | 5'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 2/1 | |
| Platform Capacity | 250kg | 551 lbs |
| Platform Capacity-Extension Deck | 120kg | 265 lbs |
| Gradeability-Stowed | 25% | 25% |
| Min. Turning Radius | Turning on the spot | |
| Raise/Lower Speed | 36s/36s | |
| POWER | ||
| Power Source | 24V (2x12V)115Ah,AGM | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 5.5L | 1.4gal |
| WEIGHT | ||
| Machine Weight (CE/ANSI) | 1600kg | 3528 lbs |
Standard features
Proportional control
Emergency stop device
Emergency descent
Self-lock entry gate
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
All motions alarm
Intelligent diagnostic system
Foldable ladder
Non-marking crawlers
Maintenance-free battery
Single joystick
Options
AC power to platform
Voice alarm system
Telematics
Dual joystick controller
Biodegradable hydraulic oil
