l Lithium battery powered, low noise, zero-emission, maintenance-free, and high-capacity.
l Axle-integrated four-wheel drive system, with strong power and smooth transmission.
l Three steering modes: front-wheel, crab and four wheel steering, to meet the demand of operations in narrow space.
l Realize all-round aerial working through booms compound action.
l Full time floating to ensure driving safety.
l Higher anti-torsional strength frame to satisfy container transportation conditions.

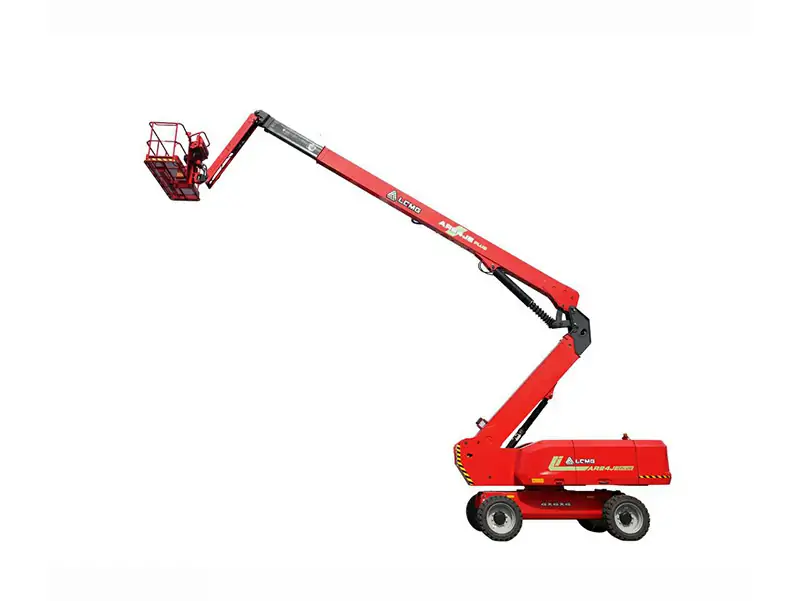

MODELS | AR24JE | AR80JE |
Measurements | Metric | Imperial |
Work Height Max. | 26.6m | 87'3" |
Platform Height Max. | 24.6m | 80'9" |
Horizontal Outreach | 18m | 59'1" |
Up and Over Height | 8.83m | 28'11" |
Platform Length | 2.44m | 8' |
Platform Width | 0.9m | 2'11" |
Stowed Length | 11.6m | 36'1" |
Length-Transport (jib tucked) | 9.07m | 29'9" |
Overall Width | 2.5m | 8'2" |
Stowed Height | 2.83m | 9'ʒ" |
Height-Transport | 3.36m | 11' |
Wheelbase | 2.85m | 9'4" |
Ground Clearance | 0.4m | 1'4" |
PRODUCTIVITY | ||
Platform Capacity (unrestricted) | 250kg | 551 lbs |
Platform Capacity (restricted) | 350kg | 772 lbs |
Max. Platform Occupancy | 2 (unrestricted) / 3 (restricted) | |
Turntable Rotation | 360° | |
Drive Speed-Stowed | 5km/h | 3.1mph |
Drive Speed-Raised | 0.8km/h | 0.5mph |
Gradeability | 45% | |
Max. Wind Speed | 12.5m/s | 28mph |
Turning Radius-Inside | 2.04m | 6’8’’ |
Turning Radius-Outside | 4.13m | 13’7’’ |
Max.Slope | 5°/5° | |
Tires Type | Foam-filled non-marking | |
Tires Models | 15-625 | |
POWER | ||
Power Source | 80V 460Ah | |
HYDRAULIC SYSTEM | ||
Hydraulic Oil Volume | 105L | 27.7gal |
WEIGHT | ||
Machine Weight | 17,300kg | 38,139lbs |
STANDARD FEATURES
Proportional control
Emergency stop device
Horn/Hour meter
Auto-leveling platform
Full-height drive
Anti-collision protection
Flashing beacons
Over tilt protection system
Cylinder bellows
Platform control cover
Oscillating axle
Overload sensing system
Platform tool box
Intelligent diagnostic system
Telematics connector
Foam-filled non-marking tires
OPTIONAL
Telematics
Solid tires
AC power to platform
Solid non-marking tires
Half-height mesh platform
Foam-filled tires
Auxiliary rail
Biodegradable hydraulic oil
