H1440(H1440)

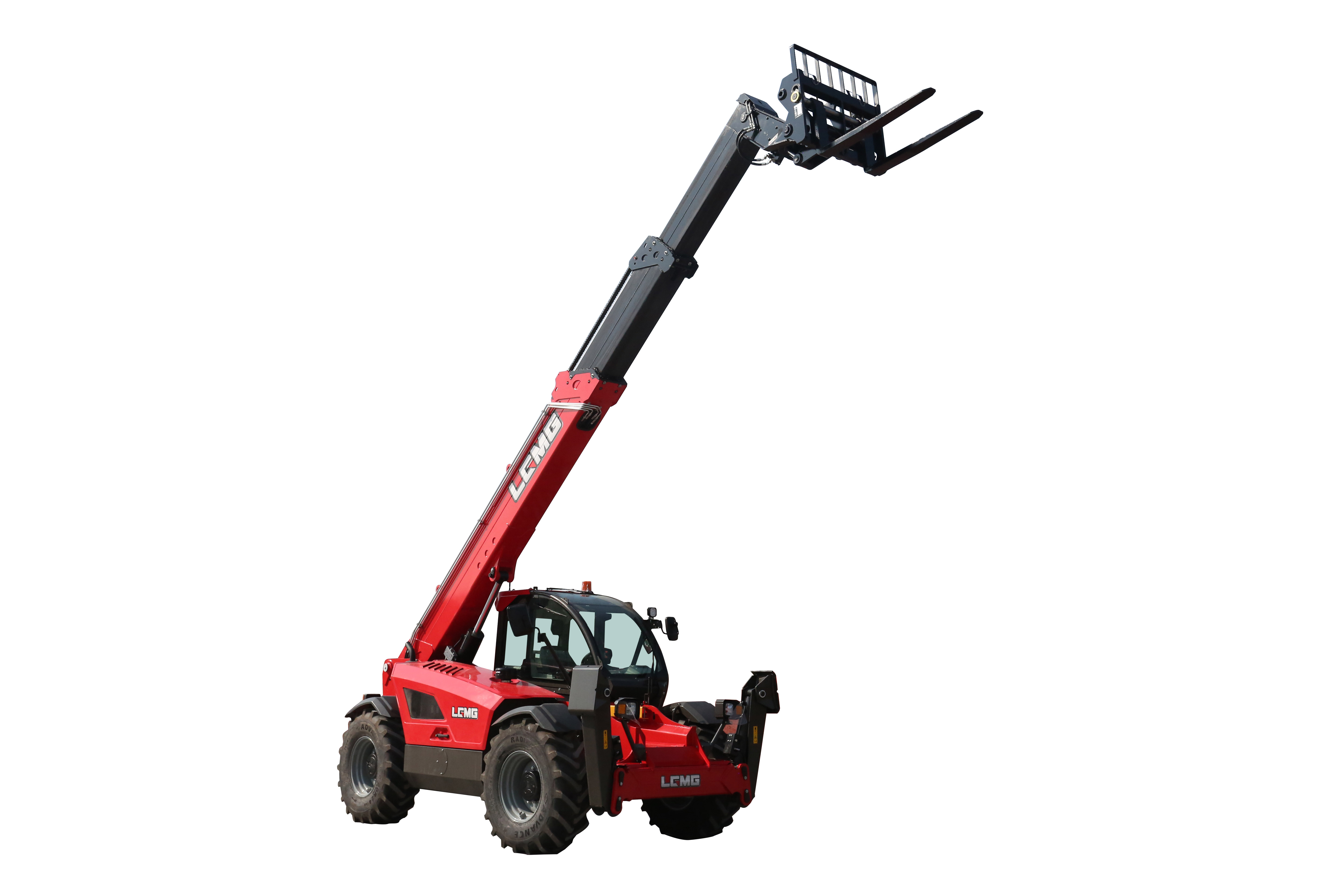

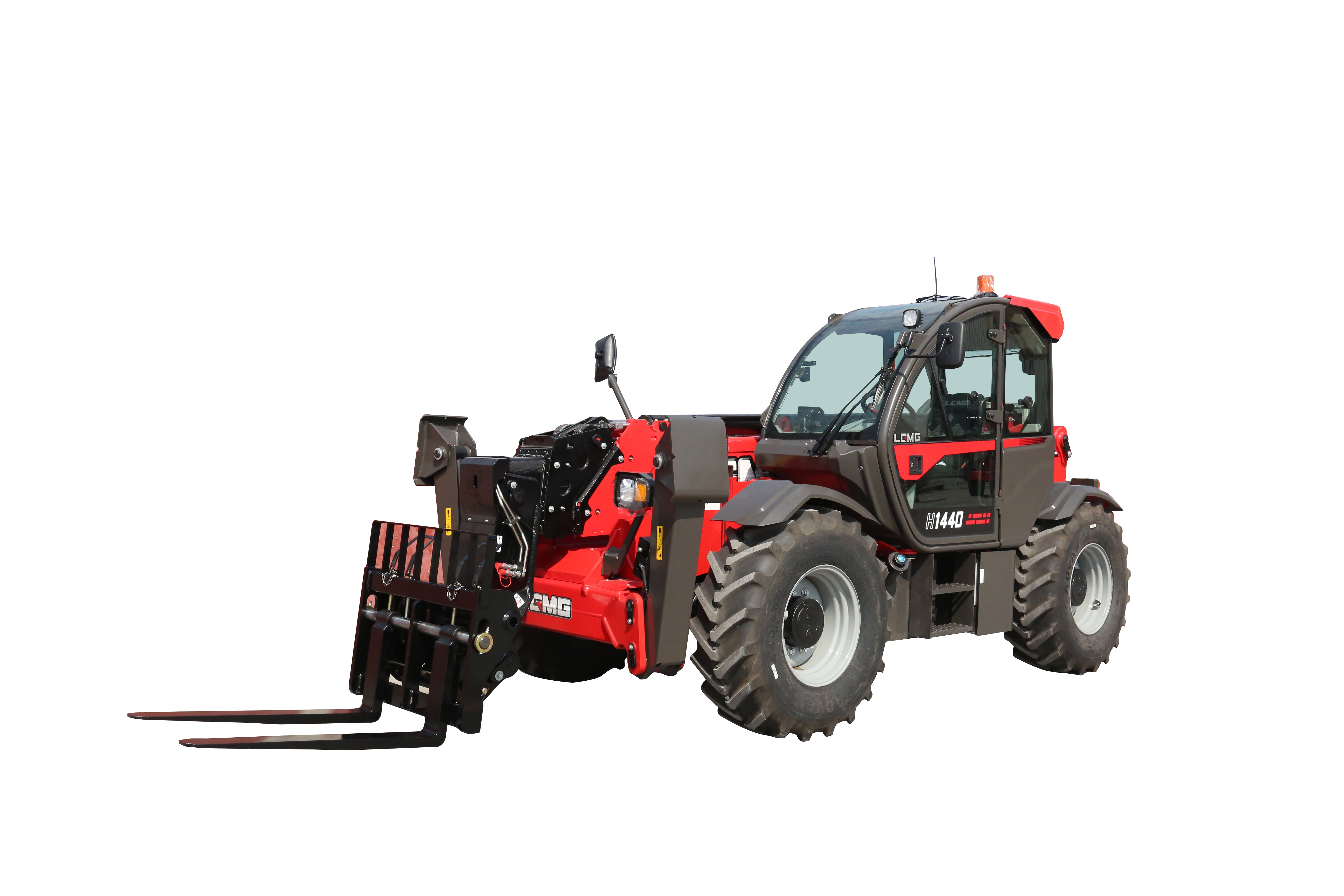

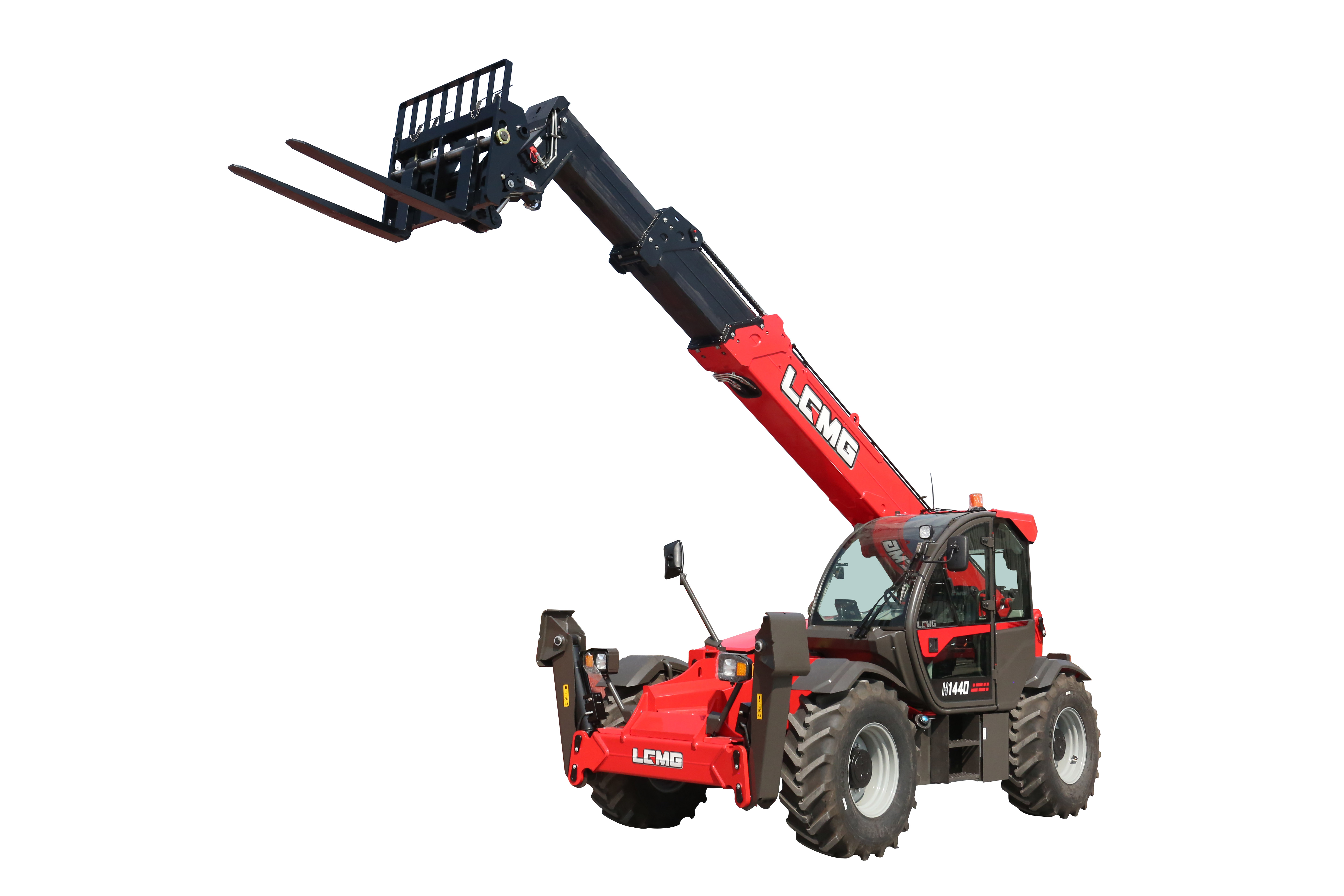

The LGMG H1440 is a telehandler with a capacity of 4000kg and a maximum lifting height of 13.6 meters.



It incorporates hydrodynamic transmission, delivering robust power and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.



The H1440 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.

  • 13.6m(44'7'')
    Work Height Max.
  • 4000kg(8818lbs)
    Platform Capacity
  • 2.44m(8')
    Machine Width
  • 9.22m(30'3'')
    Max. Outreach
  • 12050kg(26566lbs)
    Machine Weight
ModelsH1440
MeasurementsMetricImperial
A-Max. Lifting Height13.6 m44'7''
Max. Outreach9.22 m30'3"
B-Overall Lenth5.62 m18'5''
C-Overall Width 2.44 m8'
D-Overall Height2.67 m8'9''
E-Wheelbase3.07 m10'1''
Ground Clearance0.41 m1'4''
Productivity
Max. Capacity4000 kg8818 lbs
Gradebility-Unladen65%
Min.Turning Radius4.3 m14'1''
Tilt Angle±9°
Drive/Steering Mode4 Wheel Driving/4 Wheel Steer
Primary Boom Ascending Time14 s
Primary Boom Descending Time16 s
Boom Extending Time22 s
Boom retracting Time15 s
Forward-First Gear Travel Speed5 km/h3.1 mph
Forward-Second Gear Travel Speed12 km/h7.5 mph
Forward-Third Gear Travel Speed20 km/h12.4 mph
Forward-Fourth Gear Travel Speed30 km/h18.6 mph
Backward-First Gear Travel Speed5 km/h3.1 mph
Backward-Second Gear Travel Speed12 km/h7.5 mph
Backward-Third Gear Travel Speed

20 km/h12.4 mph
Standard Tires440/80 R24
Power
ManufacturerPerkins (Euro Ⅲ / Euro Ⅴ engine)
Rated Power (Euro Ⅲ)74.5 kW99.9hp
Rated Power (Euro Ⅴ)55.4/74.4 kW74.5/99.8hp
Max. Torque(Euro Ⅲ)420 N.m310 lb.ft
Max. Torque(Euro Ⅴ)424/430 N.m313/317 lb.ft
Displacement(Euro Ⅲ)4400 ml269 cu.in
Displacement(Euro Ⅴ)3620 ml221 cu.in
Tank Capacity
Hydraulic Oil Capacity180 L47.6 gal
Fuel Tank Capacity150 L39.6 gal
Weight
Machine Weight12050 kg26566 lbs
