H1056(H1056)

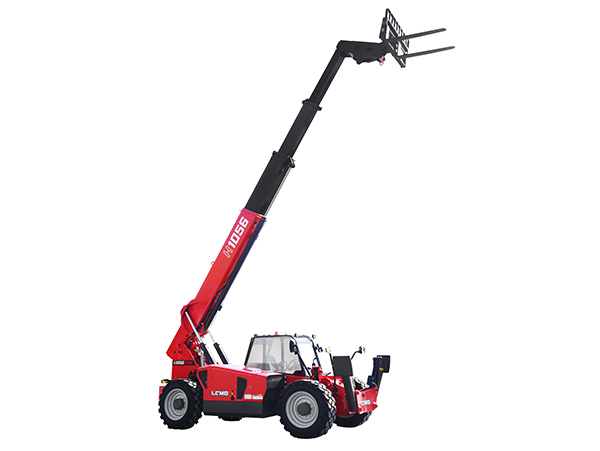

Telehandler H1056, specially designed for American market, has an open Canopy, catering to the preferences of local people and providing excellent all-round visibility.


● Long wheelbase and wide chassis deliver more stability and reliability.

● Optimized design of cabin layout with easy and convenient maintenance.

● 55kW Cummins engine without adding DEF lowers cost and makes it easy to maintain.

● The FOPs&ROPs cab enables safe driving.

● Electrically proportional control and load-sensitive system ensure precise operation, saving energy.

● The Human-machine interaction environment which conforms to American customs delivers high efficiency and simple operation.


  • 17.1m(56'1'')
    Work Height Max.
  • 4535kg(10000lbs)
    Platform Capacity
  • 2.41m(7'11'')
    Machine Width
  • 12.8m(42')
    Max. Outreach
  • 15300kg(33730lbs)
    Machine Weight
ModelsH1056
MeasurementsImperialMetric
A-Max. Lifting Height56'1''17.1 m
Max. Outreach42'12.8 m
B-Overall Lenth21'7''6.57 m
C-Overall Width 7'11''2.41 m
D-Overall Height8'10''2.7 m
E-Wheelbase11'6''3.5 m
Ground Clearance1'1''0.32 m
Productivity
Max. Capacity10000 lbs4535kg
Gradebility-Unladen50%
Min.Turning Radius14'1''4.3 m
Tilt Angle±10°
Drive/Steering Mode4 Wheel Driving/4 Wheel Steer
Primary Boom Ascending Time15-25 s
Primary Boom Descending Time10-20 s
Boom Extending Time20-30 s
Boom retracting Time15-25 s
Forward-First Gear Travel Speed3.1 mph5 km/h
Forward-Second Gear Travel Speed5.6 mph9 km/h
Forward-Third Gear Travel Speed10 mph16 km/h
Forward-Fourth Gear Travel Speed15.5 mph25 km/h
Backward-First Gear Travel Speed3.1 mph5 km/h
Backward-Second Gear Travel Speed5.6 mph9 km/h
Backward-Third Gear Travel Speed10 mph16 km/h
BrakingMulti-disc wet brake
Tire Models400/75-28
Power
ManufacturerCummins
Rated Power 73.8 hp55 kW
Max. Torque 295 lb.ft400 N.m
Displacement 231.9 cu.in3,800 ml
Tank Capacity
Engine Oil
2.9 gal11 L
Fuel Tank Capacity38.3 gal145 L
Hydraulic Oil37.5 gal142 L
Weight
Machine Weight33,730 lbs15,300 kg
