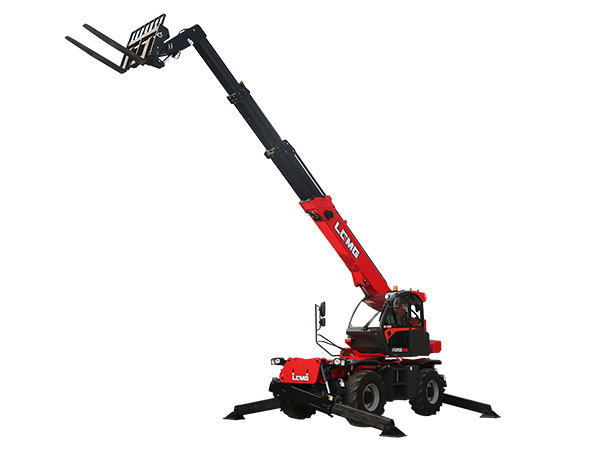

The HR2150 seamlessly integrates excellent performance with all-terrain adaptability. With an ingenious design, it integrates the functions of telehandlers, cranes, and aerial work
platforms, earning it the title of a multi-functional tool among engineering equipment.
● The HR2150 adopts an innovative 360-degree omnidirectional cab design, allowing for
all round construction work with a fixed chassis.
● The HR2150 is equipped with four independently controlled outriggers that can be extended or retracted individually or simultaneously.
● The HR2150 telehandler features an auto-leveling front axle and an actively floating rear
axle, providing enhanced shock absorption.
● Its intelligent control system design ensures convenient and safe operation, making
each job easy and effortless.
| Models | HR2150 | |
| Measurements | Metric | Imperial |
| A-Max. Lifting Height | 20.7 m | 67'11" |
| Max. Outreach | 18.1 m | 59'5'' |
| B-Overall Lenth | 6.86 m | 22'6'' |
| C-Overall Width | 2.46 m | 8'1'' |
| D-Overall Height | 3.15 m | 10'4'' |
| E-Wheelbase | 2.75 m | 9' |
| F-Wheel Track | 1.93 m | 6'4'' |
| Ground Clearance | 0.39 m | 1'3'' |
| Productivity | ||
| Max. Capacity | 4999 kg | 11021 lbs |
| Gradebility-Unladen | 65% | |
| Min.Turning Radius | 3.65 m | 12' |
| Tilt Angle | ±9° | |
| Drive/Steering Mode | 4 Wheel Driving/4 Wheel Steer | |
| Primary Boom Ascending Time | 27 s | |
| Primary Boom Descending Time | 22 s | |
| Boom Extending Time | 32 s | |
| Boom retracting Time | 23 s | |
| Forward-First Gear Travel Speed | 5 km/h | 3.1mph |
| Forward-Second Gear Travel Speed | 30 km/h | 18.6mph |
| Backward-First Gear Travel Speed | 5 km/h | 3.1mph |
| Backward-Second Gear Travel Speed | 30 km/h | 18.6mph |
| Max. Braking Distance-Unladen | ≤ 3 m (27 km/h) | ≤9'11''(16.8mph) |
| Standard Tires | 445/70 R22.5 | |
| Power | ||
| Manufacturer | Perkins （Euro Ⅲ engine) | |
| Rated Power | 106 kW | 142.1 hp |
| Max. Torque | 558 N.m | 441.6 lb.ft |
| Displacement | 4400 ml | 268.5 cu.in |
| Tank Capacity | ||
| Hydraulic Oil Capacity | 260 L | 68.7 gal |
| Fuel Tank Capacity | 170 L | 44.9 gal |
| Weight | ||
| Machine Weight | 17100 kg | 37699 lbs |
