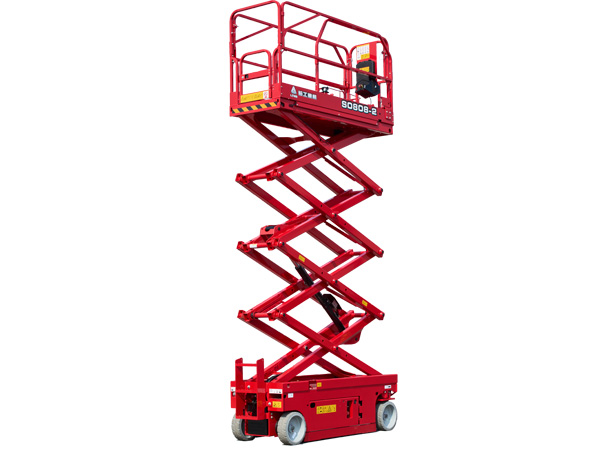

S0808-2(S2632-2)

l The structural components are designed to be lightweight yet solid and durable, effectively reducing energy consumption, and improving working time.

l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.

l Optimized pipeline layout to reduce energy loss and leakage risk while improving system reliability and durability.

l Operate with universal electrical interfaces for compatibility across various application scenarios.

l Multiple battery options: FLA, AGM, and Li-battery.


  • 9.8m(32'2'')
    Work Height Max.
  • 230kg(507lbs)
    Platform Capacity
  • 0.83m(2'9'')
    Machine Width
  • 2.44m(8')
    Machine Length
  • 2160kg(4762lbs)
    Machine Weight
MODELSS0808-2S2632-2
MeasurementsMetricImperial
Working Height Max. 9.8m/8m
(in/out)
32'2''/26'3"
(in/out)
A-Platform Height-Raised7.8m/6m
(in/out)
25'7''/19'8"
(in/out)
B-Platform Length  2.26m7'5''
C-Extension Deck0.9m2'11''
D-Platform Length with Extension Deck3.16m10'4''
E-Platform Width0.79m2'7''
F-Overall Length 2.44m8'
G-Overall Width0.83m2'9''
H-Overall Height-Guardrails Up2.315m7'7''
I-Overall Height-Guardrails Down1.95m6'5''
J-Wheelbase1.86m6'1''
Ground Clearance (Stowed/Raised)100/20mm4''/0.8''
PRODUCTIVITY

Platform Occupants Max. (in/out)2(in) / 1(out)
Platform Capacity230kg507 lbs
Platform Capacity-Extension Deck120kg265 lbs
Drive HeightFull HeightFull Height
Gradeability-Stowed25%
Min. Turning Radius2.2m7'3''
Raise/Lower Speed31s / 38s
BrakesFront-wheel Brake
Drive Mode4x2
Tires TypeSolid Non-marking
Tires Size380x130mm15''x5''
Ground Pressure, Tyres983 kPa142.6 psi
POWER

Lead-acid Battery24V(2*12V), 156Ah
HYDUALIC SYSTEM

Hydraulic Oil Capacity11 L 2.9 gal
WEIGHT

Machine Weight 2160kg4762 lbs

STANDARD FEATURES

Proportional control

Foldable guardrail

Emergency descent

Tubing explosion-proof system

Intelligent diagnostic system

Flashing beacons

Floating function

Automatic braking system

Over-tilt protection system

Safety arm for troubleshooting

Telematics

Alarm

One-way platform extension deck

Hydraulic outriggers

Non marking tires





OPTIONAL

AC power to platform
