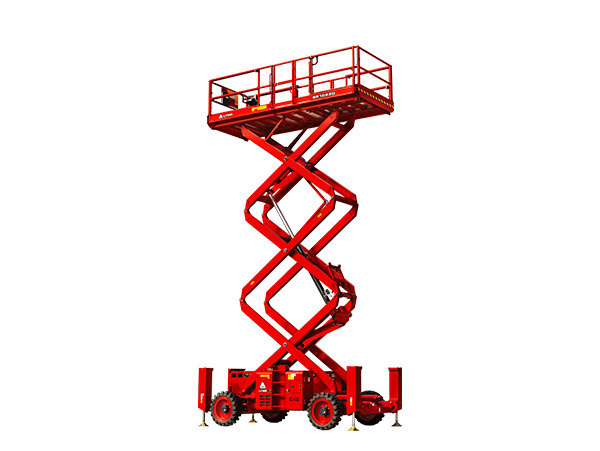

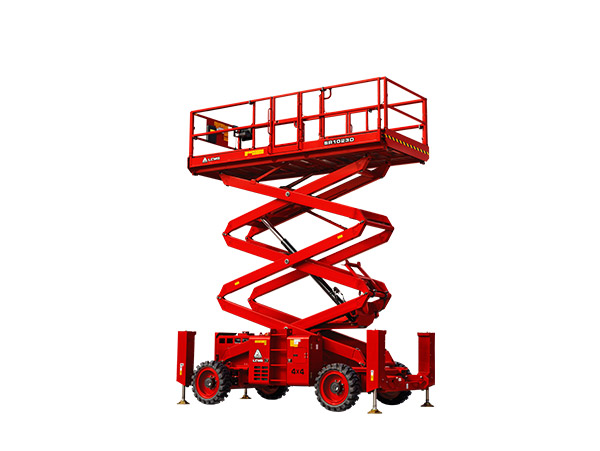

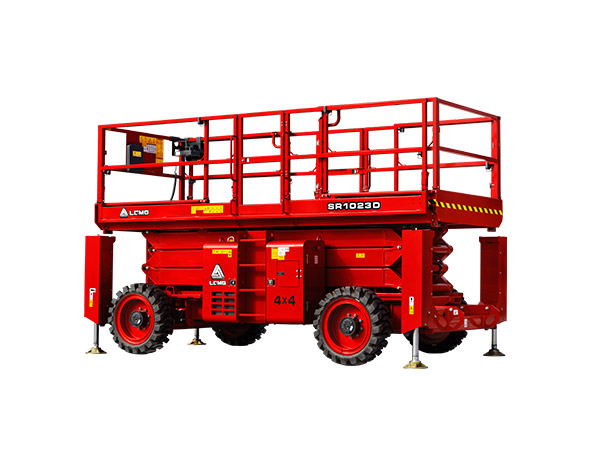

SR1023D(SR3390D)

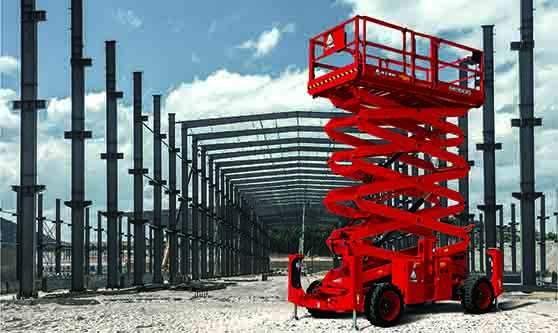

LGMG SR23D Series rough terrain scissor lifts deliver higher capacities and larger platforms for the most tough construction job sites. Four-wheel drive, oscillating axels and hydraulic outriggers provide superior stability on the most tough uneven surfaces.


l Larger work platform with high capacity offers great productivity.

l Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites.

l The overload system and motion alarm help the operator to complete the job in a much safer way.

l Pull-out engine tray for easy access and maintenance.

l On-board self-diagnostic system makes it easier for quick troubleshooting.

  • 12m(39.4ft)
    Work Height Max.
  • 1100kg(2425lbs)
    Platform Capacity
  • 2.3m(7.55ft)
    Machine Width
  • 4.9m(16ft)
    Machine Length
  • 6980kg(15400lbs)
    Machine Weight
ModelsSR1023DSR3390D
Measurements
Work Height Max.12m39'4''
A-Platform Height-Raised10m32'10''
B-Platform Height-Stowed1.58m5'2''
C-Platform Length3.98/4.81m13'1''/15'9''
D-Platform Width1.83m6'
E-Overall Length4.9m16'1''
F-Overall Width2.3m7'7''
G-Overall Height-Guardrails Up2.74m9'
Overall Height-Guardrails Down2.06m6'9''
Extension Deck1.45/1.14m4'9''/3'9''
H-Wheelbase2.85m9'4''
Ground Clearance-Center0.23m9''
Productivity
Max. Platform Occupants (In/out)7 (in) /7 (out)
Platform Capacity1100kg2430 lbs
Platform Capacity-Extension Deck230kg510 lbs
Drive Height                               Full Height
Gradeability-Stowed40%
Turning Radius-Outside5.33m17'6''
Raise/Lower Speed45/45s
BrakesFour-wheel Brake
Drive Mode4×4
Tires TypeSolid
Tires Size835×290mm33''×11''
Ground Pressure, Tyres887.37 kPa128.7 psi
Power
Power Source

Deutz D2.9 L4 36.4kw/48.8hp

Fuel Tank Capacity110L30gal
Hydraulic System
Hydraulic Oil Capacity140L37gal
Weight
Machine Weight (7.4m platform, CE)6980kg15400 lbs
Machine Weight (6.58m platform, ANSI)6880kg15170 lbs

Standard features

Proportional control

Foldable guardrail

Manual brake release

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Self-lock entry gate

Auto-leveling outriggers

Emergency stop device

Oscillating axle

All motions alarm

Intelligent diagnostic system

Emergency descent

Solid tires



Options

Telematics

AC power to platform

Cold weather package

Biodegradable hydraulic oil

Solid non-marking tires

Foam-filled tires

Foam-filled non-marking tires

PRODUCT VIDEO
PRODUCT PICTURES

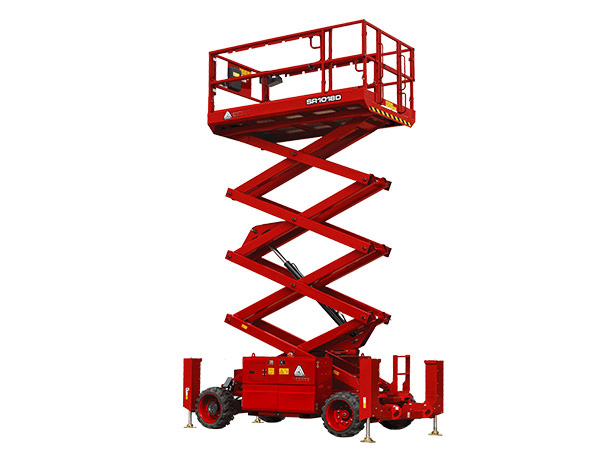

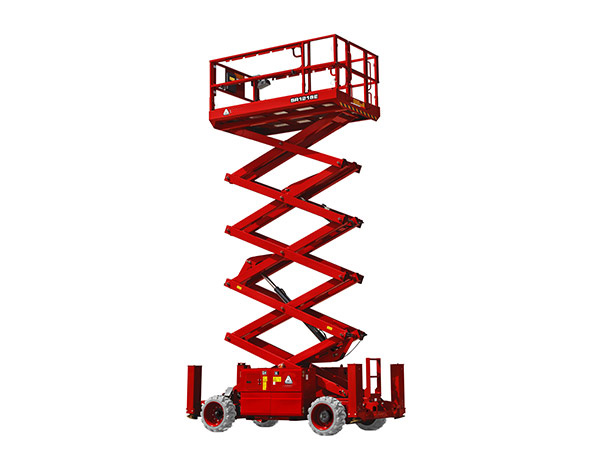

RELATED PRODUCTS
