SR1018E(SR3369E)

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environ mentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both firm level and rough terrain environments.


l High capacity, large platform with compact design maximizes productivity.

l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.

l Optional hydraulic outriggers deliver a better solution on uneven ground.

l Intelligent self-diagnostic system for quick troubleshooting.


  • 11.7m(38.4ft)
    Max. Working Height
  • 454kg(998.8lbs)
    Platform Capacity
  • 1.79m(5.81ft)
    Machine Width
  • 3.12m(10.2ft)
    Machine Length
  • 4350kg(9590lbs)
    Machine Weight
ModelsSR1018ESR3369E
Measurements
Work Height Max.11.7m38.4ft
A-Platform Height-Raised9.7m31.8ft
B-Platform Height-Stowed1.41m4.62ft
C-Platform Length2.79m9.15ft
D-Platform Width1.6m5.25ft
E-Overall Length3.76m12.33ft
F-Overall Width1.79m5.81ft
G-Overall Height-Guardrails Up2.55m8.36ft
Overall Height-Guardrails Down1.89m6.2ft
Extension Deck1.52m4.99ft
H-Wheelbase2.29m75.1in
Ground Clearance-Center0.23m0.75ft
Productivity
Max. Platform Occupants (In/out)4/24/2
Platform Capacity454kg998.8lbs
Platform Capacity-Extension Deck140kg308lbs
Drive HeightFull Height
Gradeability-Stowed35%
Turning Radius-Outside4.75m15.6ft
Raise/Lower Speed39/46s
BrakesRear-wheel Brake
Drive Mode4×2
TIres TypeFoam-filled Non-marking
TIres Size663×283mm26×12in
Power
Power Source 48V DC  315Ah
Fuel Tank Capacit/
Hydraulic System
Hydraulic Oil Capacity70L18.5gal
Weight
Machine Weight without Outriggers  (CE/ANSI)3950kg8710lbs
Machine Weight with Outriggers  (Optional)4350kg9590lbs

Standard features

Proportional control

Foldable guardrails

Self-lock entry gate

Descent alarm with flashing beacon

Tilt alarm with lift cut-out

Overload sensing system

On-board diagnostic system

Oscillating axle

Horn/Hour meter

Rear-wheel drive and break

Full-height drive


Options

AC power to platform

Auto-leveling outriggers

Platform anti-collision device

Solid tires

Solid non-marking tires

Foam-filled tires

Maintenance-free battery

Lithium battery

GPS


PRODUCT VIDEO

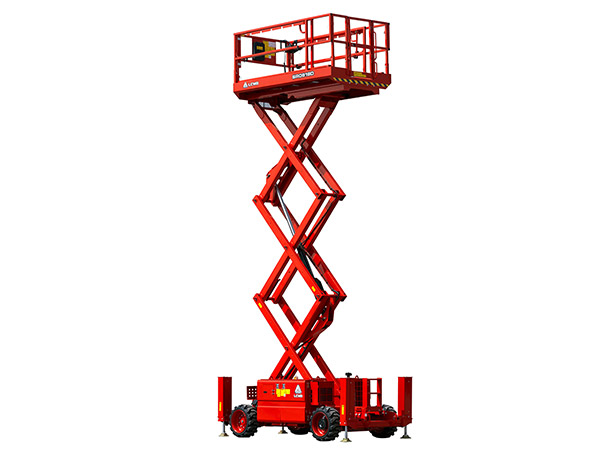

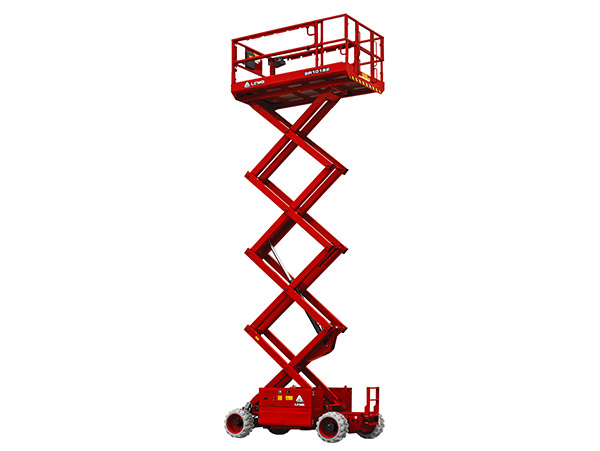

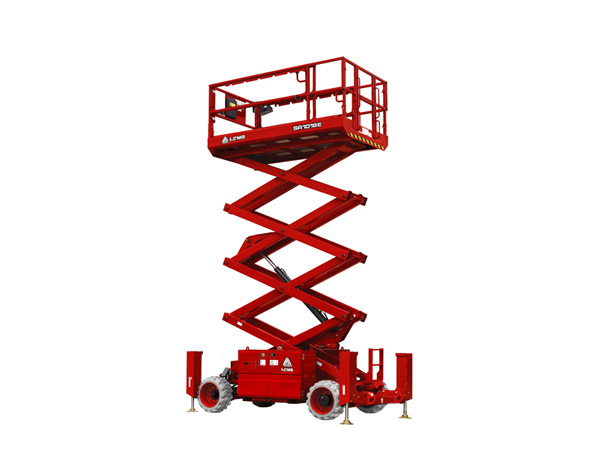

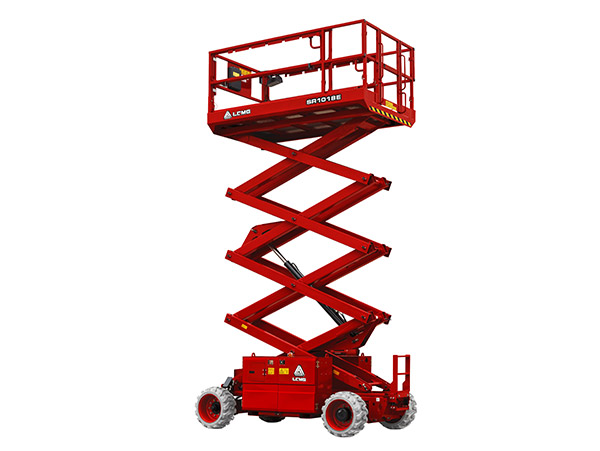

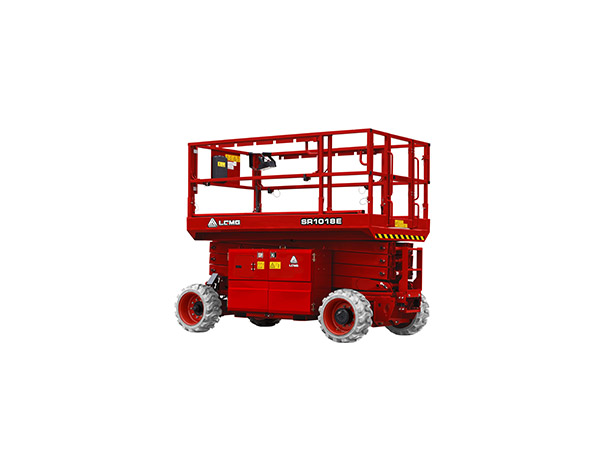

PRODUCT PICTURES
