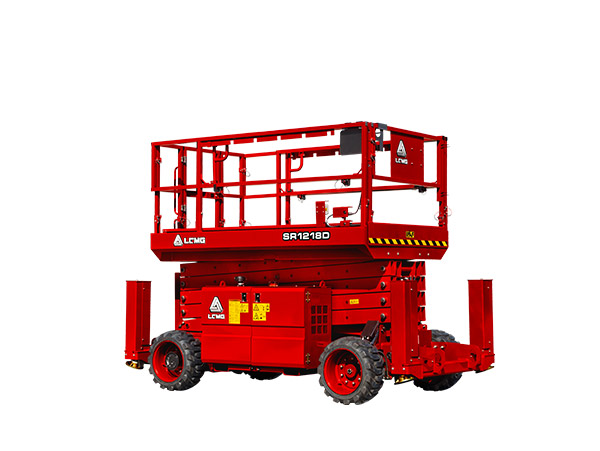

SR1218D(SR4069D)

LGMG SR18D Series rough terrain scissor lifts are specifically built for tough construction sites with four-wheel drive and fantastic gradeability. High load capacities with compact design provide a great  combination for the larger working area and greater maneuverability through rough terrain job sites.


l Larger work platform with high capacity offers great productivity.

l Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites.

l The overload system and motion alarm help the operator to complete the job in a much safer way.

l Pull-out engine tray for easy access and maintenance.

l On-board self-diagnostic system makes it easier for quick troubleshooting.

  • 13.9m(45.6ft)
    Work Height Max.
  • 365kg(803lbs)
    Platform Capacity
  • 1.79m(5.81ft)
    Machine Width
  • 3.12m(10.2ft)
    Machine Length
  • 5120kg(11290lbs)
    Machine Weight
ModelsSR1218DSR4069D
Measurements
Work Height Max.13.9m45'7''
A-Platform Height-Raised11.9m39'1''
B-Platform Height-Stowed1.56m5'1''
C-Platform Length2.79m9'2''
D-Platform Width1.6m5'3''
E-Overall Length3.76m12'4''
F-Overall Width1.79m5'10''
G-Overall Height-Guardrails Up2.7m8'10''
Overall Height-Guardrails Down2.04m6'8''
Extension Deck1.52m5'
H-Wheelbase2.29m7'6''
Ground Clearance-Center0.23m9''
Productivity
Max. Platform Occupants 3 (in) /2 (out)
Platform Capacity365kg805 lbs
Platform Capacity-Extension Deck140kg310 lbs
Drive HeightFull Height
Gradeability-Stowed35%
Turning Radius-Outside4.75m15'7''
Raise/Lower Speed61/55s
BrakesFour-wheel Brake
Drive Mode4×4
Tires TypeRT Foam-filled
Tires Size663×283mm26''×11''
Ground Pressure, Tyres575.46 kPa83.5 psi
Power
Power Source

Kubota D1105 18.5kw/24.8hp

Fuel Tank Capacity53L14gal
Hydraulic System
Hydraulic Oil Capacity50L13.2gal
Weight
Machine Weight (CE/ANSI)5080kg11200 lbs

Standard features

Proportional control

Foldable guardrails

Emergency descent

Self-lock entry gate

All motions alarm

Auto-leveling outriggers

Descent alarm with flashing beacon

Tilt alarm with lift cut-out

Overload sensing system

Emergency stop device

Intelligent diagnostic system

Oscillating axle

Manual brake release

RT Foam-filled tires



Options

AC power to platform

Telematics

Cold weather package

Solid tires

Solid non-marking tires

Foam-filled non-marking tires

Biodegradable hydraulic oil


PRODUCT VIDEO

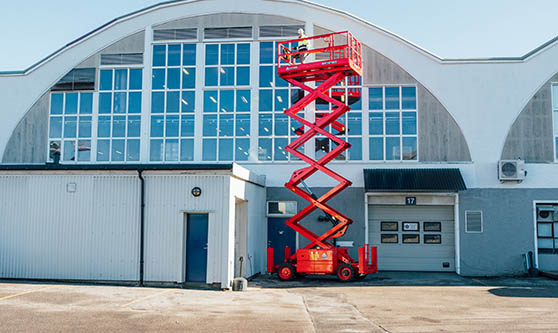

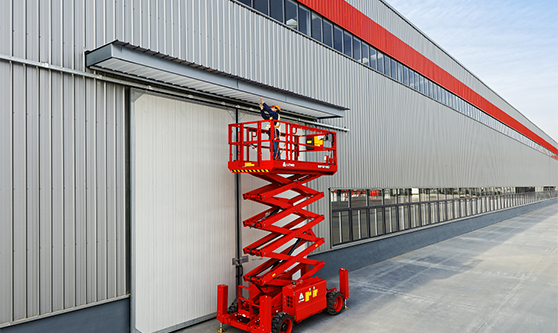

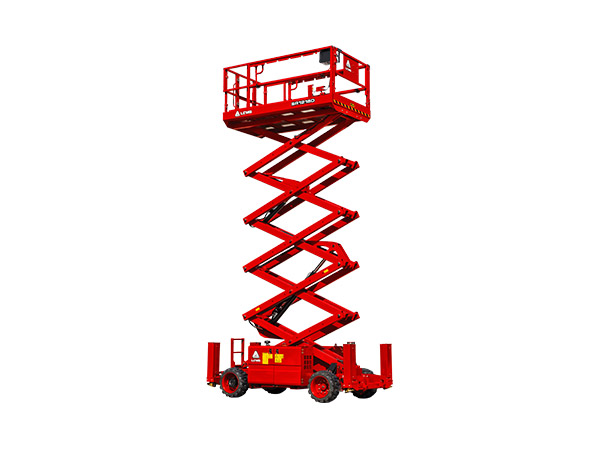

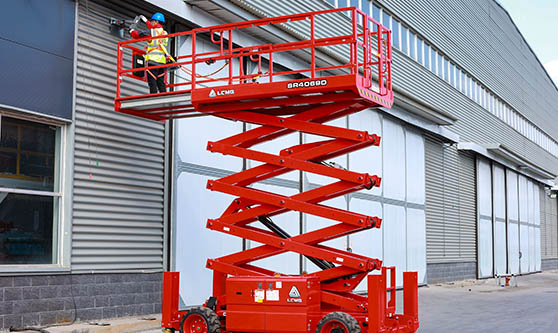

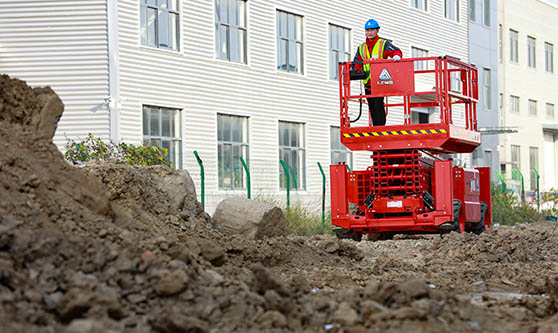

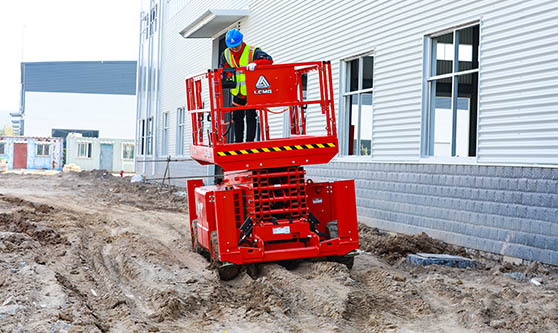

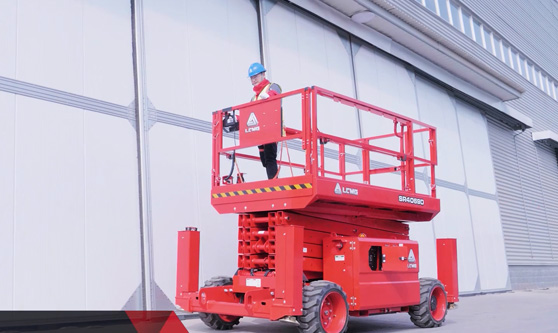

PRODUCT PICTURES
