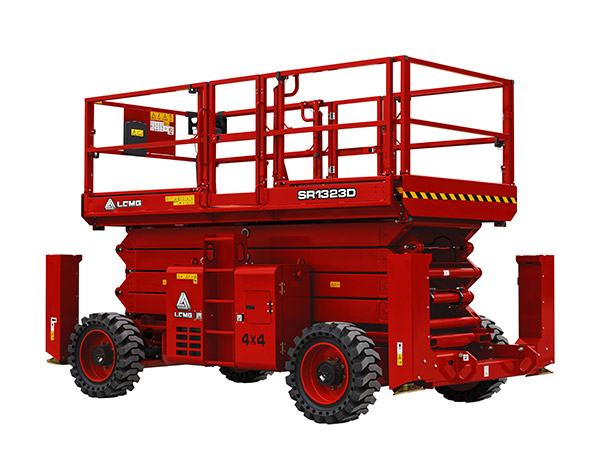

SR1323D(SR4390D)

LGMG SR23D Series rough terrain scissor lifts deliver higher capacities and larger platforms for the most tough construction job sites. Four-wheel drive, oscillating axels and hydraulic outriggers provide superior stability on the most tough uneven surfaces.


l Larger work platform with high capacity offers great productivity.

l Powerful diesel engine, oscillating axels and four-wheel drive provide better performance on most rough terrain job sites.

l The overload system and motion alarm help the operator to complete the job in a much safer way.

l Pull-out engine tray for easy access and maintenance.

l On-board self-diagnostic system makes it easier for quick troubleshooting.


  • 15m(49.2ft)
    Work Height Max.
  • 910kg(2005lbs)
    Platform Capacity
  • 2.3m(7.55ft)
    Machine Width
  • 4.9m(16ft)
    Machine Length
  • 7460kg(16450lbs)
    Machine Weight
ModelsSR1323DSR4390D
Measurements
Work Height Max.15m49'3''
A-Platform Height-Raised13m42'8''
B-Platform Height-Stowed1.83m6'
C-Platform Length3.98/4.81m13'1''/15'9''
D-Platform Width1.83m6'
E-Overall Length4.9m16'1''
F-Overall Width2.3m7'7''
G-Overall Height-Guardrails Up2.96m9'9''
Overall Height-Guardrails Down2.28m7'6''
Extension Deck(Front/Rear)1.45/1.14m4'9''/3'9''
H-Wheelbase2.85m9'4''
Ground Clearance-Center0.23m9''
Productivity
Max. Platform Occupants7 (in) /7 (out)
Platform Capacity680kg1500 lbs
Platform Capacity-Extension230kg510 lbs
Drive Height                        Full Height
Gradeability-Stowed40%
Turning Radius-Outside5.33m17'6''
Raise/Lower Speed55/55s
BrakesFour-wheel Brake
Drive Mode4×4
TIres TypeSolid
TIres Size835×290mm33''×11''
Ground Pressure, Tyres887.71 kPa128.8 psi
Power
Power Source

Deutz D2.9 L4 36.4kw/48.8hp

Fuel Tank Capacity110L30gal
Hydraulic System
Hydraulic Oil Capacity140L37gal
Weight
Machine Weight  (7.4m platform, CE)7460kg16450 lbs
Machine Weight  (6.58m platform, ANSI)7360kg16230 lbs

Standard features

Proportional control

Foldable guardrail

Emergency descent

Manual brake release

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Self-lock entry gate

Auto-leveling outriggers

Emergency stop device

Intelligent diagnostic system

Oscillating axle

All motions alarm

Solid tires



Options

Telematics

AC power to platform

Cold weather package

Biodegradable hydraulic oil

Pipe racks

Solid non-marking tires

Foam-filled tires

Foam-filled non-marking tires

PRODUCT VIDEO

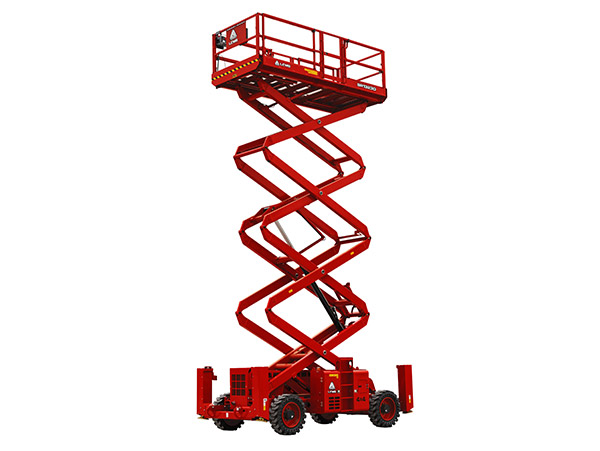

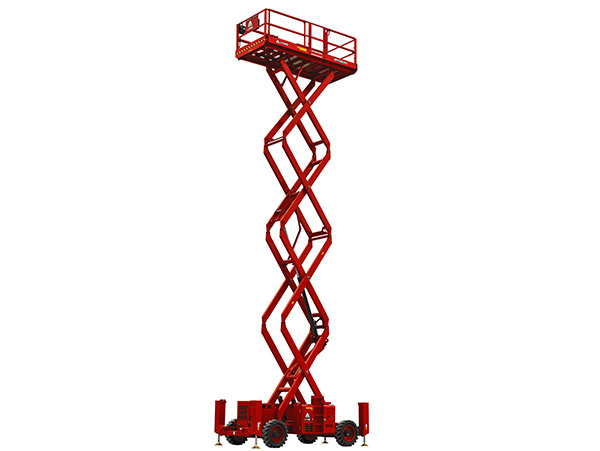

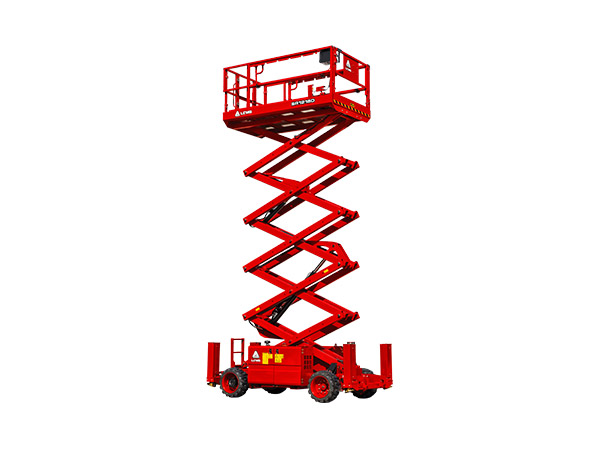

PRODUCT PICTURES
