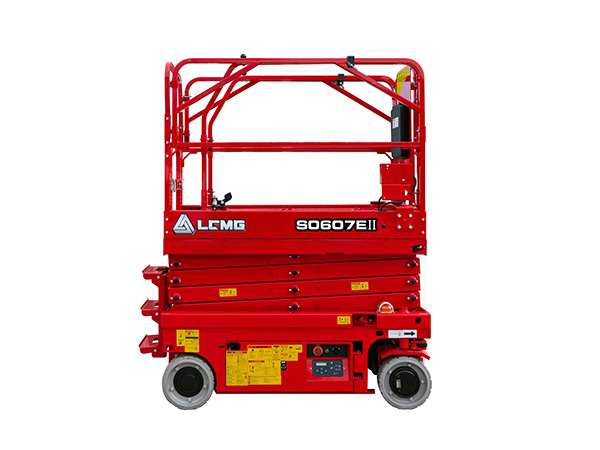

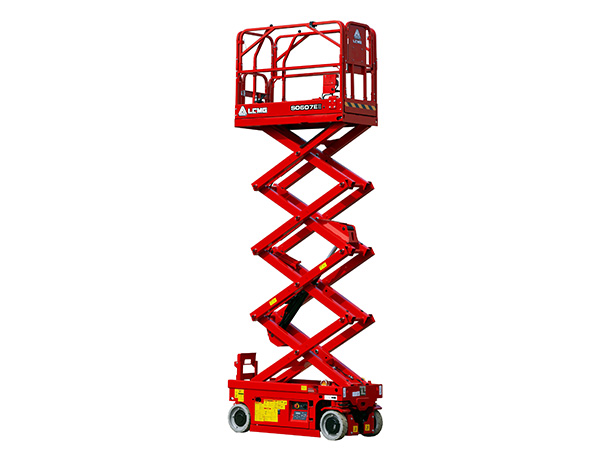

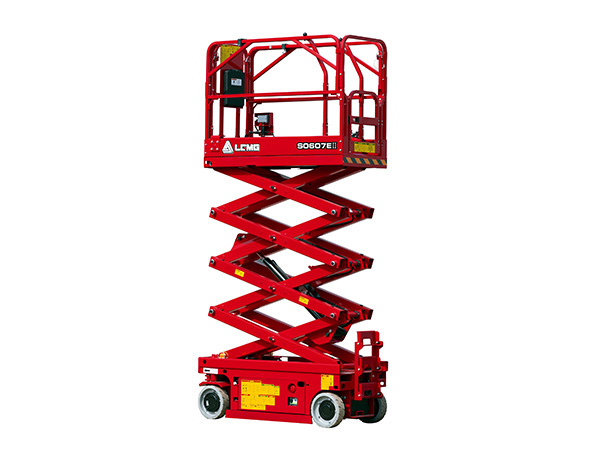

S0607EⅡ(S1932EⅡ)

The second generation of scissors lifts has been improved in various aspects, such as performance and design, which makes them even more convenient to maintain and safer to operate.



● Large lower control panel

● Entire range designed for Indoor and outdoor use

● Universal key components

● More convenient to maintain

● Optional lithium battery for the entire product range

  • 7.8m(25.7ft)
    Work Height Max.
  • 230kg(510lbs)
    Platform Capacity
  • 0.79m(2.7ft)
    Machine Width
  • 1.83m(6ft)
    Overall Length
  • 1610kg(3549lbs)
    Machine Weight
ModelsS0607EⅡS1932EⅡ
Measurements
Work Height Max.7.8m25'7''
A-Platform Height-Raised5.8m19'
B-Platform Length1.64m5'5''
C-Platform Width0.73m2'5''
D-Overall Length1.83m6'
E-Overall Width0.79m2'7''
F-Overall Height-Guardrails Up2.16m7'1''
G-Overall Height-Guardrails Down1.81m5'11''
H-Extension Deck0.9m2'11''
I-Wheelbase1.35m4'5''
Ground Clearance(Stowed/Raised)78/26mm3''/1''
Productivity
Max. Platform Occupants2 (in) /1 (out)
Platform Capacity230kg510 lbs
Platform Capacity-Extension Deck120kg265 lbs
Drive HeightFull Height
Gradeability-Stowed25%
Min. Turning Radius1.8m5'11''
Raise/Lower Speed16s/28s
Brakes Front-wheel Brake
Drive Mode4×2
Tire TypeSolid Non-marking
Tire Size323*100mm12''x4''
Ground Pressure, Tyres978 kPa141.8 psi
Power
Power Source 24V (4x6V) 225Ah, FLA
Power Source (Lithium Battery)                                24V 160Ah
Hydraulic System
Hydraulic Oil Capacity5L1.3gal
Weight
Machine Weight(CE/ANSI)1610kg3549 lbs

STANDARD FEATURES:

Indoor and outdoor rated

Proportional control

Foldable guardrail

Emergency stop device

Manual brake release

Emergency descent

Swing-out component tray

Pothole guard

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

All motions alarm

Full-height drive

Intelligent diagnostic system

Solid non-marking tires



OPTIONAL:

AC power to platform

Anti-collision device

Biodegradable hydraulic oil

Maintenance-free battery

Voice alarm system

Telematics
