SS0507E(SS1432E)

LGMG SS Series scissor lifts offer an ideal solution for the low-level access and tight restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators.


l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.

l Efficient electric drive system provides longer-lasting performance and better gradeability.

l The zero turning radius and the light weight make this machine ideal for space restricted conditions, providing exceptional maneuverability.

l Exceptional waterproofed drive system design provides excellent performance in wet conditions.

l Commonality of control system with other electric scissor lifts.


  • 6.3m(20.7ft)
    Max. Working Height
  • 230kg(510lbs)
    Platform Capacity
  • 0.81m(2.65ft)
    Machine Width
  • 1.53m(5ft)
    Machine Length
  • 985kg(2172lbs)
    Machine Weight
ModelsSS0507ESS1432E
Measurements
Work Height Max.6.3m20.7ft
A-Platform Height-Raised4.3m14.1ft
B-Platform Height-Stowed1.04m3.4ft
C-Platform Length1.35m4.4ft
D-Platform Width0.7m2.3ft
E-Overall Length1.53m5ft
F-Overall Width0.81m2.65ft
G-Overall Height-Guardrails Up2.15m7.1ft
Overall Height-Guardrails Down1.9m6.2ft
H-Extension Deck0.6m2ft
I-Wheelbase1.12m44.1in
Ground Clearance(Stowed/Raised)50/16mm1.97/0.63in
Productivity
Max. Platform Occupants (In/out)2/1
Platform Capacity230kg510lbs
Platform Capacity-Extension Deck113kg249lbs
Drive HeightFull Height
Gradeability-Stowed25%
Turning Radius-Inside0
Turning Radius-Outside1.5m4.9ft
Raise/Lower Speed25/20s
Brakes Front-wheel Brake
Drive Mode4×2
Tires TypeSolid Non-marking
Tires Size230×80mm9.1×3.1in
Power
Power Source 24V DC 150Ah
Hydraulic System
Hydraulic Oil Capacity4.5L1gal
Weight
Machine Weight(CE)985kg2172lbs

Standard features

Proportional control

Foldable guardrail

Emergency stop device

Manual brake release

Emergency descent

Swing-out component tray

Pothole guard

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Horn/hour meter

All motions alarm

Full-height drive

Intelligent diagnostic system


Options

AC power to platform

Maintenance-free battery

Platform anti-collision device

Air tube to platform

Foot switch*

Limit driving when lifting*

GPS

(Note:* Standard for South Korean and Japanese models)


PRODUCT VIDEO

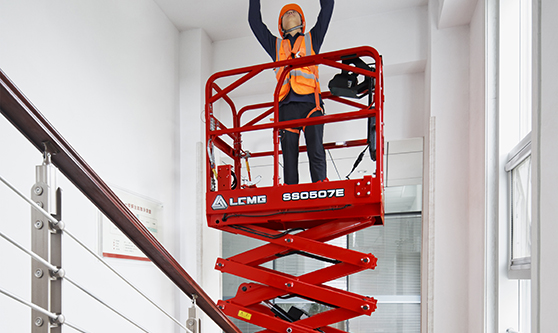

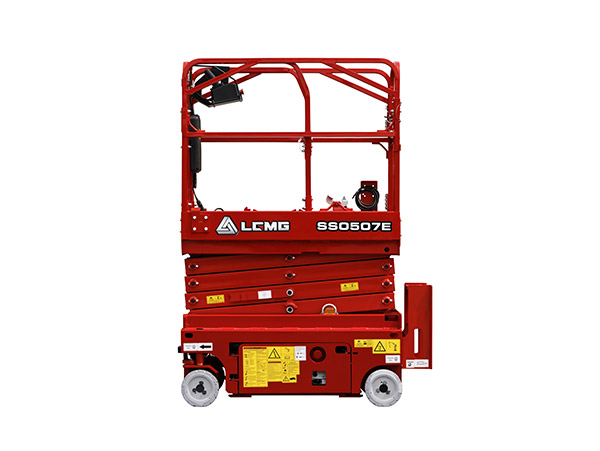

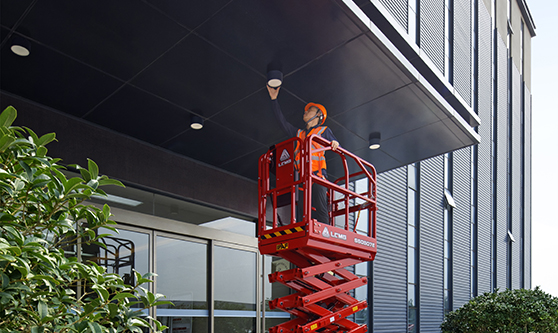

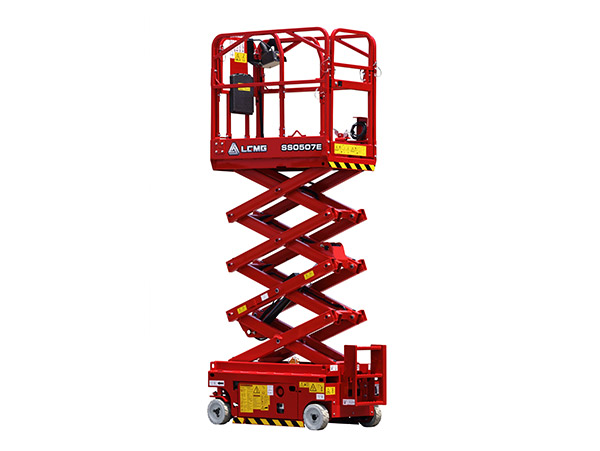

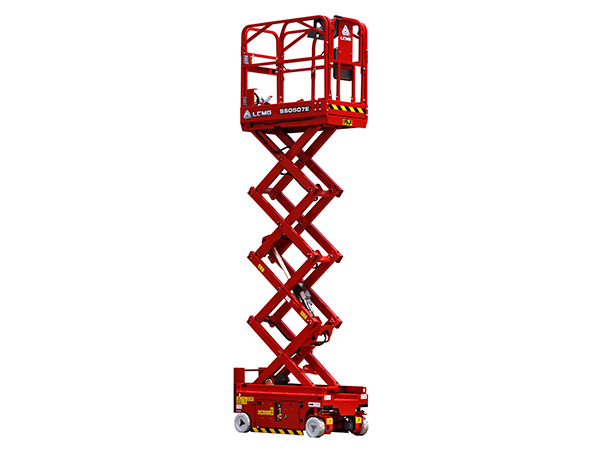

PRODUCT PICTURES

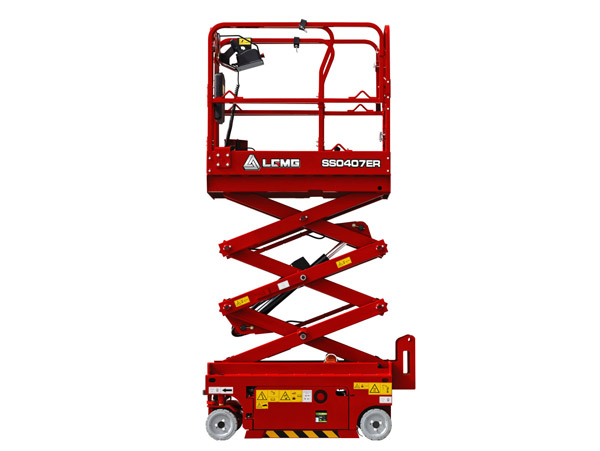

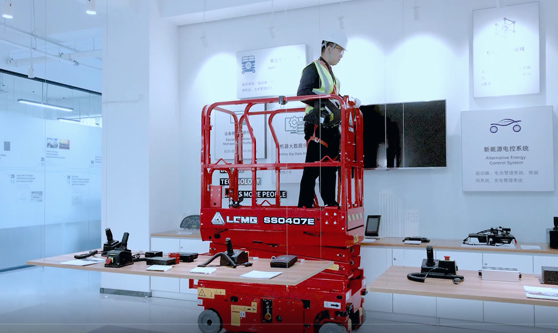

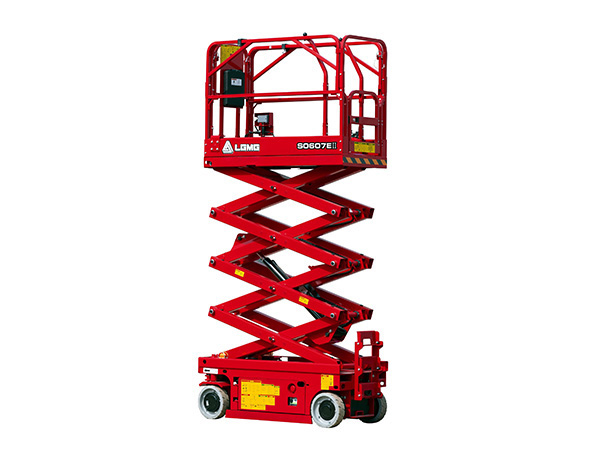

RELATED PRODUCTS
