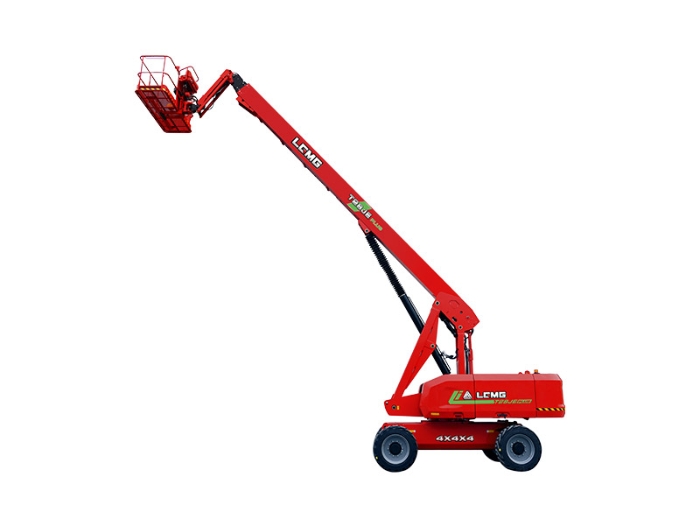

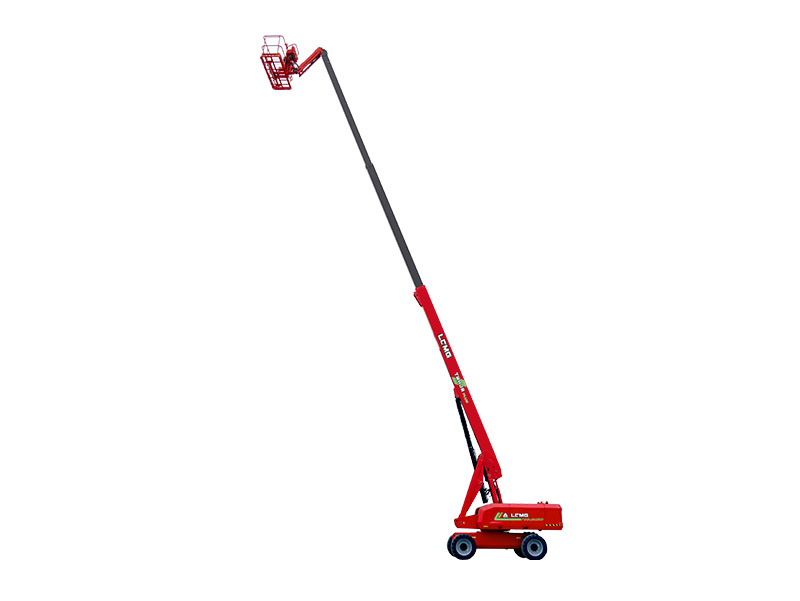

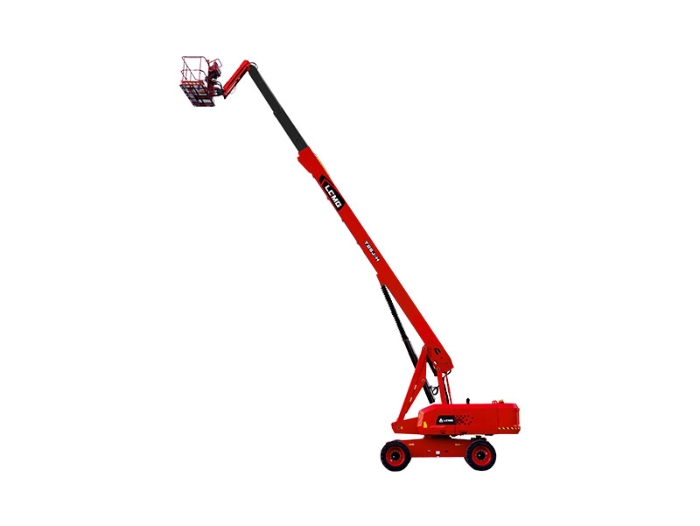

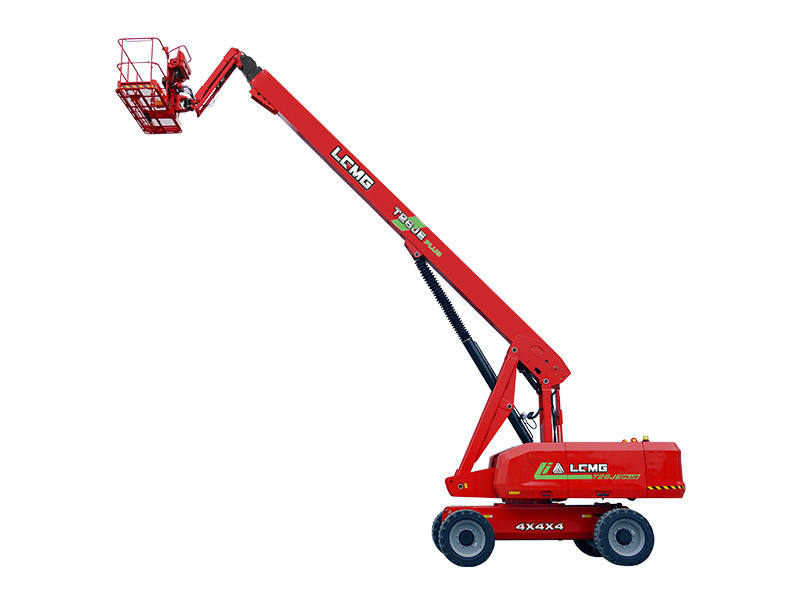

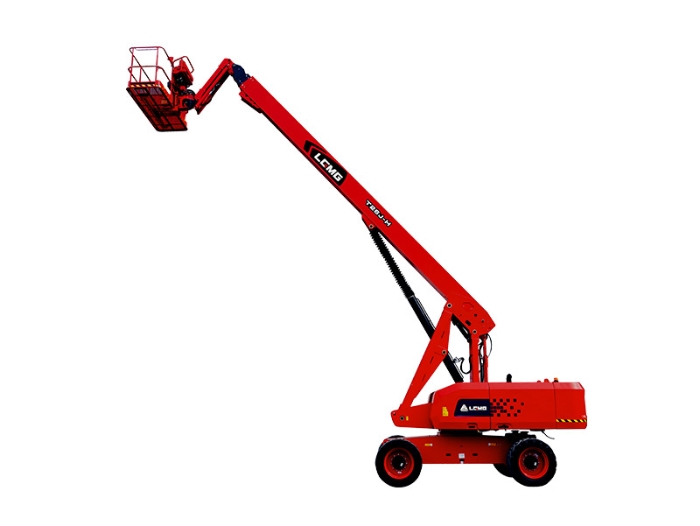

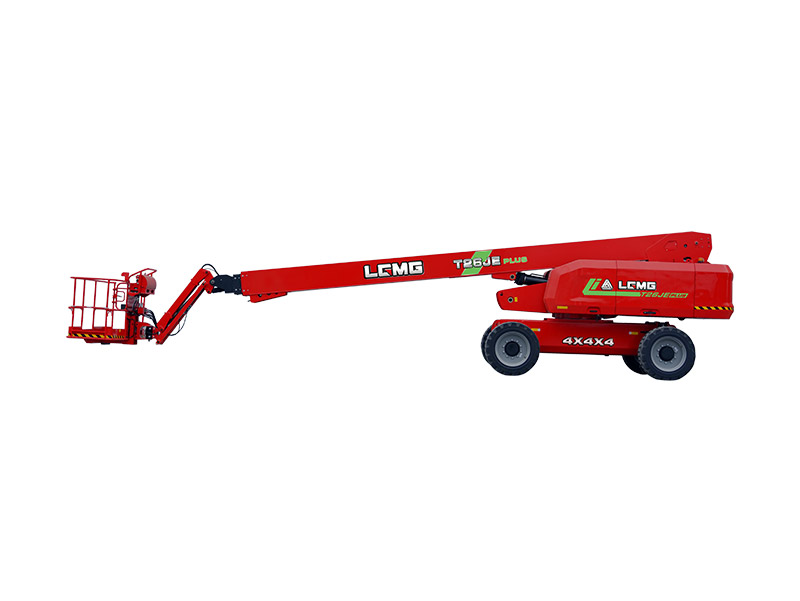

T26JE(T85JE)

LGMG's new electric telescopic boom aerial work platform is equipped with a lithium battery, which has the advantages of low noise and zero emissions.

The max working height of the platform ranges from 21.8 to 29.8 meters (71'6" /97'9" ) . Platform accommodates up to 3 people and 450/300kg (992/661 lbs) dual capacity design for increased work efficiency.

Excellent rough terrain performance, stability and operating precision, suitable for various harsh working environments.


l Completely electric drive, noiseless, zero-emission, 100% maintenance-free

l Smoother maneuvering, precise positioning and comfortable operation

l Universal key components

l Intelligent self-diagnostic system

  • 27.9m(91.5ft)
    Work Height Max.
  • 450kg(992lbs)
    Platform Capacity
  • 2.5m(8.2ft)
    Machine Width
  • 22.3m(73.2ft)
    Horizontal Outreach
  • 18300kg(40345lbs)
    Machine Weight
MODELST26JET85JE
Measurements
Work Height Max.   m/ft27.9m91'6''
Platform Height  25.9m85'
Horizontal Outreach 21.6m70'10''
Platform Length 2.44m8'
Platform Width   0.9m2'11''
A- Length-Stowed 12.8m42'
Length-Transport(jib tucked)11m36'1''
B-Overall Width   2.5m8'2''
C- Height-Stowed 2.82m9'3''
Height-Transport3.03m9'11''
D-Wheelbase   2.85m9'4''
E-Ground Clearance  0.4m1'4''
PRODUCTIVITY
Platform Capacity(unrestricted) 300kg661 lbs
Platform Capacity(restricted) 450kg992 lbs
Max. Platform Occupancy2(unrestricted) / 3 (restricted)
Turntable Rotation   360°Continuous
Drive Speed-Stowed  5km/h3.1mph
Drive Speed-Raised   0.8km/h0.5mph
Gradeability45%
Max. Wind Speed    12.5m/s28mph
Turning Radius-Inside   2.04m6'8''
Turning Radius-Outside   4.13m13'7''
Max.Slope  5°/5°
Tires TypeFoam-filled non-marking
Tires Size15-625
Ground Pressure, Tyres899 kPa130.4 psi
POWER
Power Source80V DC 542Ah
HYDUALIC SYSTEM
Hydraulic Oil Volume  138L36.5gal
WEIGHT
Machine Weight(CE/ANSI)  18200kg40124 lbs

Standard features
· Proportional control
· Overload sensing system
· Descent alarm

· Flashing beacons
· Auto-leveling platform
· Emergency stop button
· Platform tool box
· Oscillating axle
· Telematics connector
· Over-tilt protection system
· Anti-collision protection

· Platform control cover
· Cylinder bellows

· Intelligent diagnostic system

· RT Foam-filled tires

· Horn/Hour meter


Optional
· AC power to platform
· Telematics
· Solid Non-marking tires
· Solid tires

· Glazier kit

· Auxiliary rail

· Half-height mesh platform

· Foam-filled tires

· Foam-filled non-marking tires

· Biodegradable hydraulic oil
