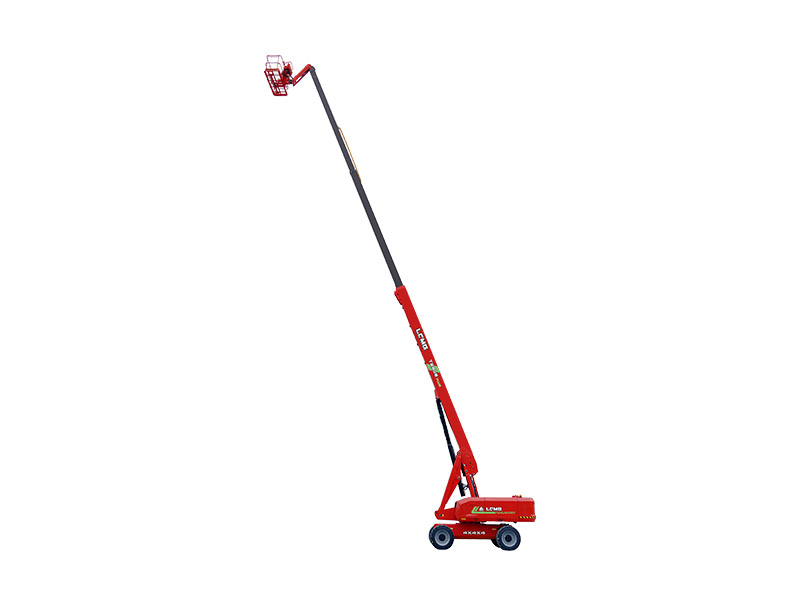

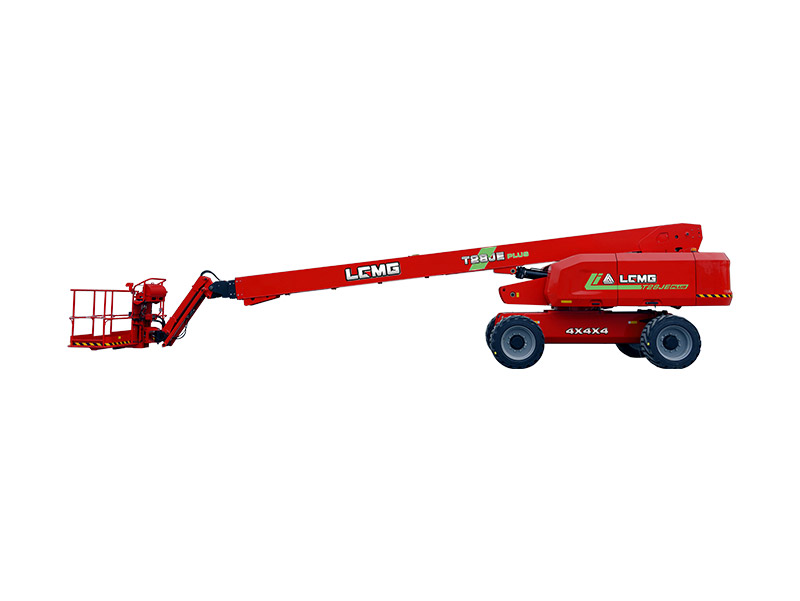

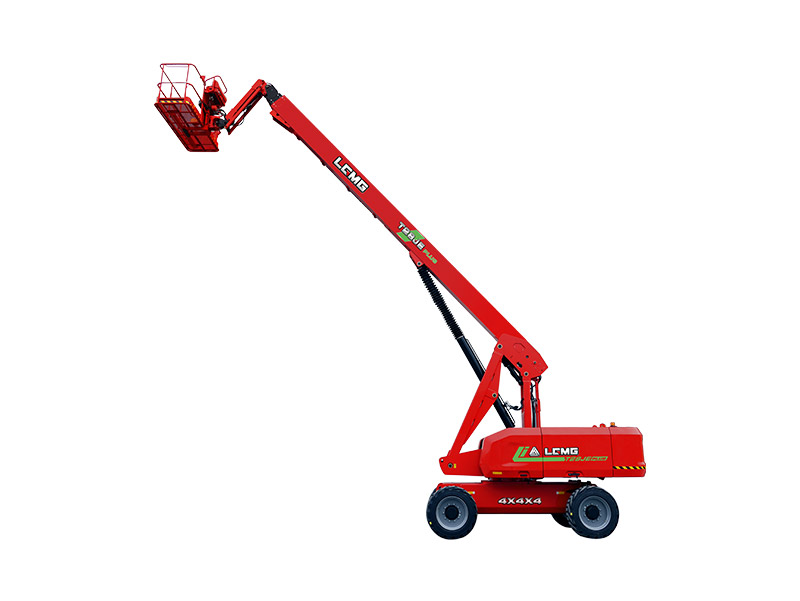

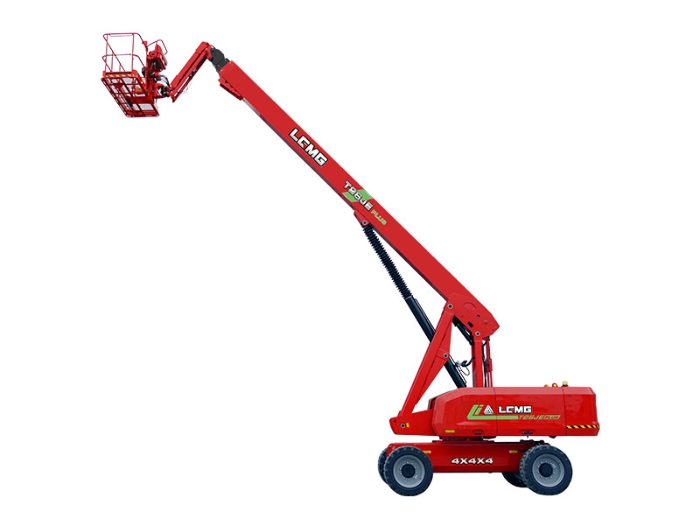

T28JE(T92JE)

LGMG's new electric telescopic boom aerial work platform is equipped with a lithium battery, which has the advantages of low noise and zero emissions.

The max working height of the platform ranges from 21.8 to 40.2 meters (71'6" /131'11" ) . Platform accommodates up to 3 people and 450/300kg (992/661 lbs) dual capacity design for increased work efficiency.

Excellent rough terrain performance, stability and operating precision, suitable for various harsh working environments.


l Completely electric drive, noiseless, zero-emission, 100% maintenance-free

l Smoother maneuvering, precise positioning and comfortable operation

l Universal key components

l Intelligent self-diagnostic system

  • 29.8m(97.8ft)
    Work Height Max.
  • 300/450kg(661/992lbs)
    Platform Capacity
  • 2.5m(8.2ft)
    Machine Width
  • 22.5m(73.8ft)
    Horizontal Outreach
  • 18800kg(41447lbs)
    Machine Weight
MODELST28JET92JE
Measurements
Work Height Max.29.8m97'9''
Platform Height27.8m91'2''
Horizontal Outreach21.6m70'10''
Platform Length2.44m8'
Platform Width0.9m2'11''
A- Length-Stowed13.4m44'
Length-Transport(jib tucked)11.47m37'8''
B-Overall Width2.5m8'2''
C- Height-Stowed2.82m9'3''
Height-Transport3.02m9'11''
D-Wheelbase2.85m9'4''
E-Ground Clearance0.4m1'4''
PRODUCTIVITY
Platform Capacity(unrestricted)300kg661 lbs
Platform Capacity(restricted)450kg992 lbs
Max. Platform Occupancy2(unrestricted)/ 3(restricted)
Turntable Rotation   360°Continuous
Drive Speed-Stowed5km/h3.1mph
Drive Speed-Raised0.8km/h0.5mph
Gradeability45%
Max. Wind Speed12.5m/s28mph
Turning Radius-Inside2.04m6'8''
Turning Radius-Outside4.13m13'7''
Max.Slope  5°/5°
Tires TypeFoam-filled non-marking
Tires Size15-625
Ground Pressure, Tyres903 kPa131 psi
POWER
Power Source80V DC 542Ah
HYDUALIC SYSTEM
Hydraulic Oil Volume138 L36.5 gal
WEIGHT
Machine Weight(CE/ANSI)18700 kg41226 lbs

Standard features
· Proportional control
· Overload sensing system
· Descent alarm

· Flashing beacons

· Auto-leveling platform
· Emergency stop button
· Oscillating axle
· Intelligent diagnostic system
· Over-tilt protection system
· Anti-collision protection

· Platform control cover
· Cylinder bellows

· Horn/Hour meter

· Telematics connector

· RT Foam-filled tires

· Platform tool box


Optional
· AC power to platform
· Telematics
· Solid-non-marking tires
· Solid tires

· Glazier kit

· Auxiliary rail

· Half-height mesh platform

· Foam-filled tires

· Foam-filled non-marking tires

· Biodegradable hydraulic oil
