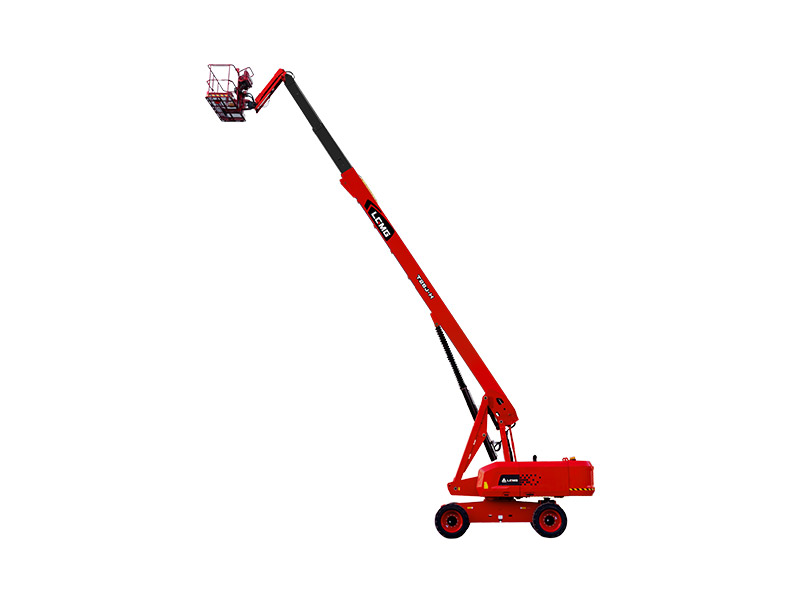

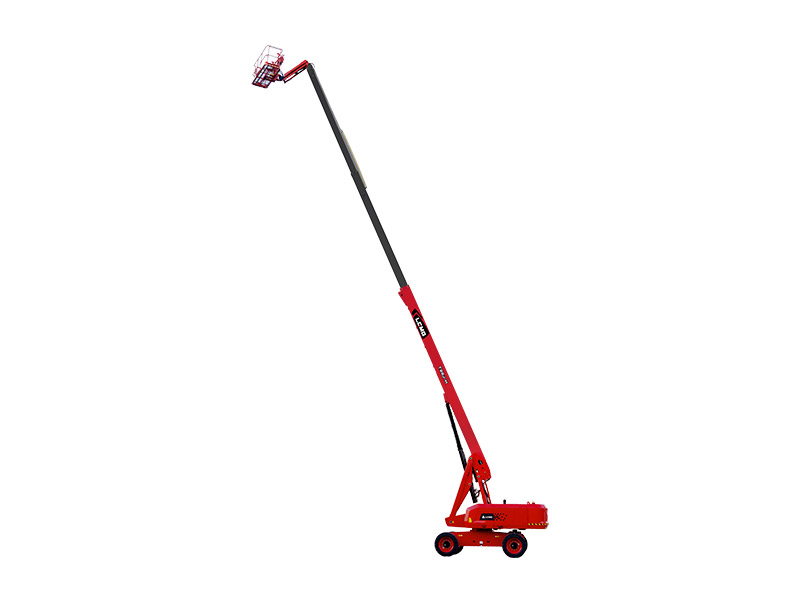

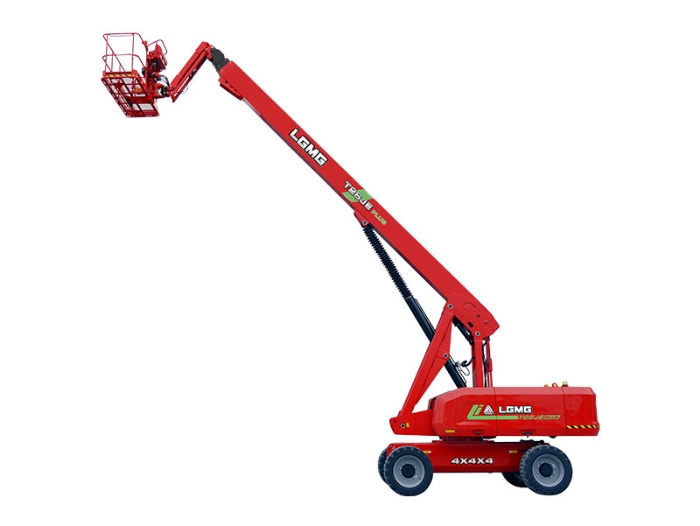

LGMG has a complete line of engine-driven, high-capacity telescopic boom aerial work platforms, with the max working height ranging from 21.8 to 40.2 meters (71'6" /131'11" ). With a double capacity design of 450/300kg (992/661lbs), the machine can allow up to 3 people to work at the same time both indoors and outdoors, which greatly improves work
efficiency.
l Full-time floating axle, maximum 5 degrees tilt angle chassis
l Smoother maneuvering, precise positioning and comfortable operation
l Universal key components
l Automatic engine speed control, boom descends by its own weight
l Intelligent diagnostic and control system with precise fault analysis

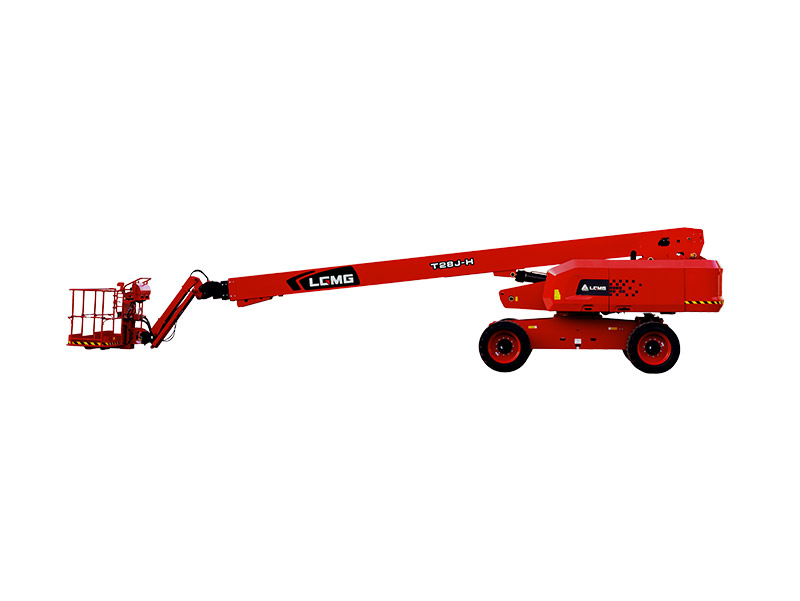

| Models | T28J-H | T92J-H |
| Measurements | ||
| Work Height Max. | 29.8m | 97'9'' |
| Platform Height | 27.8m | 91'2'' |
| Horizontal Outreach | 21.6m | 70'10'' |
| Platform Length | 2.44m | 8' |
| Platform Width | 0.9m | 2'11'' |
| Platform Capacity | 300/450kg | 661/992 lbs |
| A-Stowed Length | 13.4m | 44' |
| Length-Transport (jib tucked） | 11.47m | 37'8'' |
| B-Overall Width | 2.5m | 8'2'' |
| C-Stowed Height | 2.83m | 9'3'' |
| Height - Transport | 3.02m | 9'11'' |
| D-Wheelbase | 2.85m | 9'4'' |
| E-Ground Clearance | 0.43m | 1'5'' |
| Productivity | ||
| Max. Platform Occupancy | 2 (unrestricted) / 3 (restricted) | |
| Turntable Rotation | 360°Continuous | |
| Drive Speed-Stowed | 4.8km/h | 3mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 3.66m | 12' |
| Turning Radius-Outside | 6.55m | 21'6'' |
| Max.Slope | 5°/5° | |
| Tires Type | RT Foam-filled | |
| Tires Size | 18-625 | |
| Ground Pressure, Tyres | 902 kPa | 130.8 psi |
| Power | ||
| Power | Deutz TD2.9 L4 / Kubota V3307 | |
| Fuel Tank Capacity | 100L | 26.4gal |
| Hydraulic System | ||
| Hydraulic Oil Volume | 180L | 47.5gal |
| Weight | ||
| Machine Weight(CE/ANSI) | 18800kg | 41447 lbs |
Standard features
· Proportional control
· Overload sensing system
· Descent alarm with flashing beacon
· Flashing beacons
· Auto-leveling platform
· Emergency stop button
· Oscillating axle
· Over-tilt protection system
· Anti-collision protection
· Platform control cover
· Cylinder bellows
· Platform tool box
· Intelligent diagnostic system
· RT Foam-filled tires
· Horn/Hour meter
· Telematics connector
Optional
· AC power to platform
· Telematics
· Hydraulic generator kit
· 3.5kw Hydraulic generator
· Half-height mesh platform
· Cold weather package
· Glazier kit
· Auxiliary rail
· Hydralic oil radiator
· Foam-filled non-marking tires
· Biodegradable hydraulic oil
