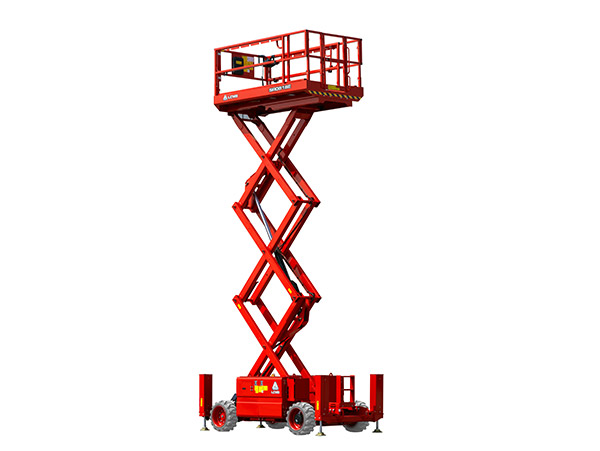

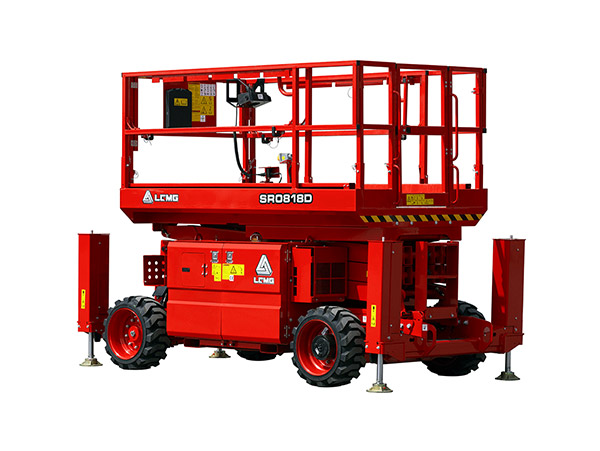

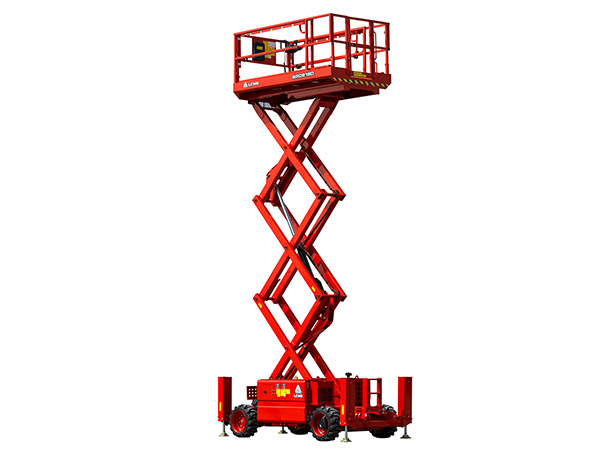

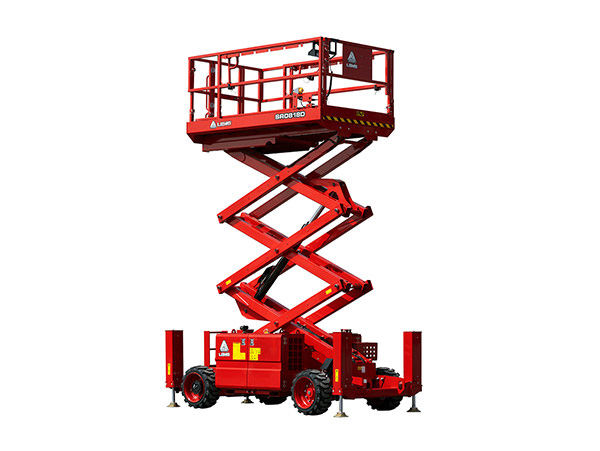

LGMG SR18D Series rough terrain scissor lifts are specifically built for tough construction sites with four-wheel drive and fantastic gradeability. High load capacities with compact design provide a great combination for the larger working area and greater maneuverability through rough terrain job sites.
l Larger work platform with high capacity offers great productivity.
l Powerful diesel engine, oscillating axels and four-wheel drive provides better performance on most rough terrain job sites.
l The overload system and motion alarm help the operator to complete the job in a much safer way.
l Pull-out engine tray for easy access and maintenance.
l On-board self-diagnosis system makes it easier for quick troubleshooting.
| MODELS | SR0818D | SR2669D |
| Measurements | Metric | Imperial |
| Working Height Max. | 9.7m | 31'10'' |
| A-Platform Height-Raised | 7.7m | 25'3'' |
| B-Platform Height-Stowed | 1.41m | 4'8'' |
| C-Platform Length | 2.79m | 9'2'' |
| D-Platform Width | 1.6m | 5'3'' |
| E-Overall Length | 3.76m | 12'4'' |
| F-Overall Width | 1.79m | 5'10'' |
| G-Overall Height-Rails Up | 2.58m | 8'6'' |
| Overall Height-Rails Down | 1.89m | 6'2'' |
| H-Extension Deck | 1.52m | 5' |
| I-Wheelbase | 2.29m | 7'6'' |
| Ground Clearance-Center | 0.23m | 9'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. | 4 (in) / 4 (out) | |
| Platform Capacity | 680kg | 1499 lbs |
| Platform Capacity-Extension | 140kg | 310 lbs |
| Drive Height | Full Height | Full Height |
| Gradeability-Stowed | 40% | 40% |
| Min. Turning Radius | 4.75m | 15'7'' |
| Raise/Lower Speed | 35 / 30s | 35 / 30s |
| Brakes | Four-wheel Brake | Four-wheel Brake |
| Drive Mode | 4x4 | 4x4 |
| Tires Type | RT Foam-filled | RT Foam-filled |
| Tires Size | 663x283mm | 26''x11'' |
| Ground Pressure, Tyres | 490.41 kPa | 71.1 psi |
| POWER | ||
| Power Source | Kubota D1105 18.5kw/24.8hp | |
| Fuel Tank Capacity | 53L | 14gal |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 50L | 13.21gal |
| WEIGHT | ||
| Machine Weight (CE/ANSI) | 4170kg | 9193 lbs |
Standard features
Proportional control
Foldable guardrail
Self-lock entry gate
Emergency descent
All motions alarm
Manual break release
Descent alarm with flashing beacon
Tilt alarm with lift cut-out
Overload sensing system
Emergency stop device
Intelligent diagnostic system
Oscillating axle
RT Foam-filled tires
Options
AC power to platform
Telematics
Auto-leveling outriggers
Cold weather package
Solid tires
Solid non-marking tires
Foam-filled non-marking tires
Biodegradable hydraulic oil
