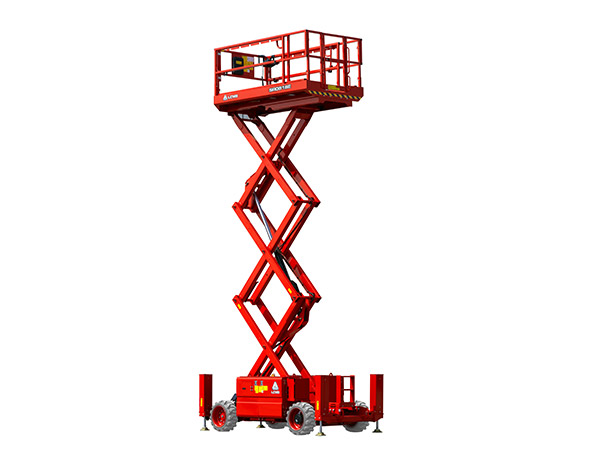

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environ mentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both firm level and rough terrain environments.
l The large platform with high capacity maximizes productivity.
l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.
l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.
l Optional hydraulic outriggers deliver a better solution on uneven ground.
l Intelligent self-diagnostic system for quick troubleshooting.
| MODELS | SR0818E | SR2669D |
| Measurements | Metric | Imperial |
| Working Height Max. | 9.7m | 31'10'' |
| A-Platform Height-Raised | 7.7m | 25'3'' |
| B-Platform Height-Stowed | 1.41m | 4'8'' |
| C-Platform Length | 2.79m | 9'2'' |
| D-Platform Width | 1.6m | 5'3'' |
| E-Overall Length | 3.76m | 12'4'' |
| F-Overall Width | 1.79m | 5'10'' |
| G-Overall Height-Rails Up | 2.58m | 8'6'' |
| Overall Height-Rails Down | 1.89m | 6'2'' |
| H-Extension Deck | 1.52m | 5' |
| I-Wheelbase | 2.29m | 7'6'' |
| Ground Clearance-Center | 0.23m | 9'' |
| PRODUCTIVITY | ||
| Max. Platform Occupancy | 4 (in) / 4 (out) | |
| Platform Capacity | 680kg | 1499 lbs |
| Platform Capacity-Extension | 140kg | 310 lbs |
| Drive Height | Full Height | |
| Gradeability-Stowed | 40% | 40% |
| Min. Turning Radius | 4.75m | 15'7'' |
| Raise/Lower Speed | 35/30s | 35/30s |
| Brakes | Rear-wheel brake | |
| Drive Mode | 4x2 | |
| Tires Type | Foam-filled Non-marking | |
| Tires Size | 663x283mm | 26''x11'' |
| Ground Pressure | 492.07 kPa | 71.4 psi |
| POWER | ||
| Power Source | 48V DC 315Ah,FLA | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 50L | 13.21gal |
| WEIGHT | ||
| Machine Weight(CE/ANSI) | 4190kg | 9237 lbs |
Standard features
Proportional control
Foldable guardrail
Emergency descent
Manual brake release
Oscillating axle
Self-lock entry gate
All motions alarm
Emergency stop button
Tilt alarm with lift cut-out
Overload sensing system
Intelligent diagnostic system
Descent alarm with flashing beacon
Foam-filled non-marking tires
Options
AC power to platform
Auto-leveling outriggers
Telematics
Solid tires
Solid non-marking tires
Foam-filled tires
Biodegradable hydraulic oil
