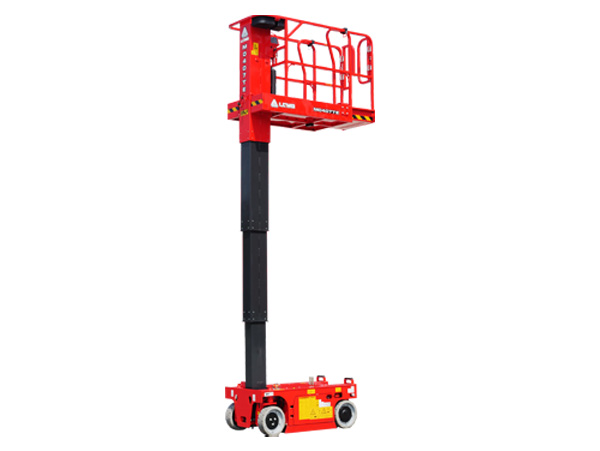

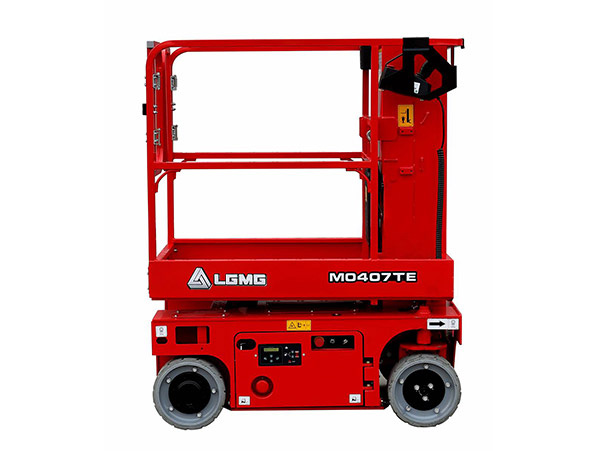

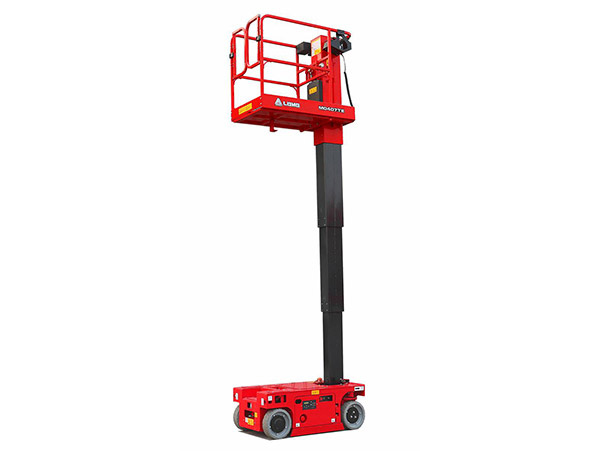

With an added 0.4m extension deck, the M0407TE expands its working range. Its small inside turning radius and full-height drive also allows for flexible use in narrow spaces.
l Narrow chassis, low stowed height, can be transported easily through doorways and in passenger elevators.
l Small inside turning radius allows for flexible use in narrow spaces, improving work efficiency.
l Three-stage integrated telescopic oil cylinder, reliable and durable.
l Intelligent self-diagnostic system for quick troubleshooting.
| MODELS | M0407TE | M1230TE |
| Measurements | Metric | Imperial |
| Working Height Max. | 5.7 m | 18'8'' |
| Platform Height | 3.7 m | 12'2'' |
| Platform Size | 1.33x0.75 m | 52''x 30'' |
| A-Overall Length | 1.39 m | 4'7'' |
| B-Overall Width | 0.76 m | 2'6'' |
| C-Overall Height (Stowed) | 1.69 m | 5'6'' |
| D-Wheelbase | 1.04 m | 3'5'' |
| E-Ground Clearance (Stowed/Raised) | 68/15 mm | 3''/1" |
| Extension Deck | 0.4m | 1'4" |
| PRODUCTIVITY | ||
| Max. Platform Occupancy | 1 (in) / 0 (out) | |
| Platform Capacity | 230 kg | 507 lbs |
| Platform Capacity-Extension Deck | 113 kg | 249 lbs |
| Drive Mode | Front Wheel Drive | |
| Max. Drive Speed (Stowed) | 4 km/h | 2.5 mph |
| Max. Drive Speed (Raised) | 0.5 km/h | 0.31 mph |
| Gradeability | 25% | |
| Tire Size | 323x100 mm | 13''x4'' |
| Ground Pressure, Tyres | 814 kPa | 118.1 psi |
| POWER | ||
| Power Source | 24V (2x12V) 145Ah,AGM | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Capacity | 5.5 L | 1.5 gal |
| WEIGHT | ||
| Machine Weight (CE) | 840 kg | 1852 lbs |
Standard features
Proportional control
Double swing gate
Tilt alarm
Pothole guard
Full-height drive
Horn/hour meter
Front wheel brake
Emergency stop device
Manual brake release
Emergency descent
Platform tool box
Telematics connector
Charging protection system
Descent alarm with flashing beacon
Front wheel steering, front wheel drive
Solid non-marking tires
Optional
Telematics
AC power to platform
Biodegradable hydraulic oil
