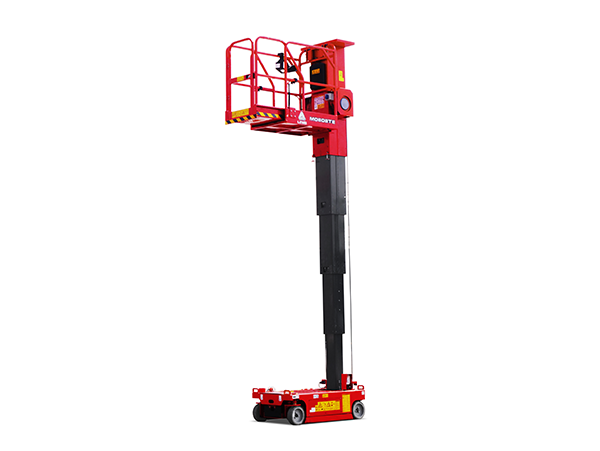

l Indoor and outdoor use, adaptable to diverse job sites.
l Narrow chassis, low stowed height, can be transported easily through doorways and in passenger elevators.
l Small inside turning radius allows for flexible use in narrow spaces, improving work efficiency.
l One-side 0.5m extension deck enlarges the working scope and enhances productivity.
l Intelligent self-diagnostic system for quick troubleshooting.
| MODELS | M0608TE | M1932TE |
| Measurements | Metric | Imperial |
| Working Height Max. | 7.6/6.2m (in/out) | 24'11''/20'4" (in/out) |
| Platform Height | 5.6/4.2m (in/out) | 18'4''/13'9" (in/out) |
| Platform Size | 0.98x0.76m | 39''x 30'' |
| A-Overall Length | 1.4m | 4'7'' |
| B-Overall Width | 0.79 m | 2'7'' |
| C-Overall Height (Stowed) | 1.99 m | 6'6'' |
| D-Wheelbase | 1.15 m | 3'9'' |
| E-Ground Clearance (Stowed) | 68mm | 3'' |
| Extension Deck | 0.5m | 1'8" |
| PRODUCTIVITY | ||
| Max. Platform Occupancy | 1 (in) / 1 (out) | |
| Platform Capacity | 200kg | 441lbs |
| Platform Capacity-Extension Deck | 113kg | 249lbs |
| Drive Mode | Rear wheels drive | |
| Max. Drive Speed (Stowed) | 4km/h | 2.5mph |
| Max. Drive Speed (Raised) | 0.5km/h | 0.31mph |
| Gradeability | 25% | |
| Tire Size | 250x80 mm | 10''x3'' |
| POWER | ||
| Power Source | 24V (2x12V) 145Ah,AGM | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Capacity | 4.5L | 1.2gal |
| WEIGHT | ||
| Machine Weight | 1150kg | 2535lbs |
Standard features
Proportional control
Tilt alarm
Pothole guard
Full-height drive
Horn/hour meter
Emergency stop device
Emergency descent
Platform tool box
Telematics connector
Charging protection system
Descent alarm with flashing beacon
Optional
Telematics
AC power to platform
Biodegradable hydraulic oil
