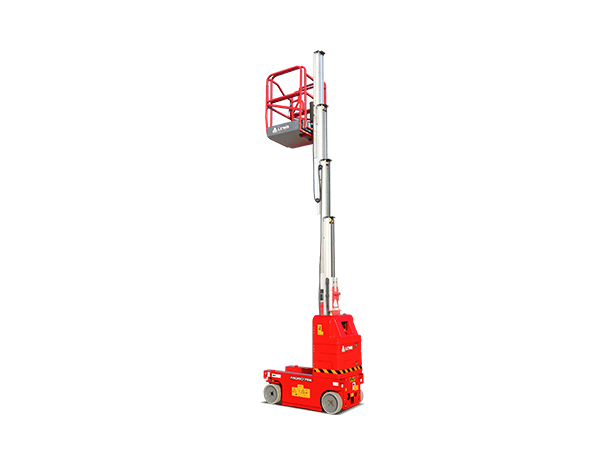

LGMG's new vertical mast lift M0607SE has good maneuverability and is fit for flat and solid floor in various workplaces, such as hotel, school, factory, mall, supermarket, etc. Its compact size and light weight allow easy transport.
l With light weight and compact size, it can be used both indoor and outdoor.
l Self-leveling chain system, and each mast can rise and fall synchronously.
l Hinged double opening cover for easier maintenance.
l Standard with extension deck and large working capacity.
| MODELS | M0607SE | M2030SE |
| Measurements | Metric | Imperial |
| Working Height Max | 8m/6.8m (in/out) | 26'3"/22'4" (in/out) |
| Platform Height (Raised) | 6m/4.8m (in/out) | 19'8"/15'9" (in/out) |
| Platform Size (L×W) | 0.7*0.75m | 28"*30" |
| A-Overall Length | 1.4m | 4'7" |
| B-Overall Width | 0.76m | 2'6" |
| C-Overall Height (Stowed) | 1.99m | 6'6" |
| Extension Deck | 0.5m | 1'8" |
| D-Wheelbase | 1.07m | 3'6" |
| E-Ground Clearance | 55mm | 2" |
| PRODUCTIVITY | ||
| Max. Platform Occupancy (in/out) | 1(in) / 1(out) | |
| Platform Capacity | 160kg | 352 lbs |
| Platform Capacity-Extension | 160kg | 352 lbs |
| Drive Mode | Front Wheels Drive | |
| Brakes | Front Wheels Brake | |
| Max. Drive Speed (Stowed) | 3km/h | 1.9mph |
| Max. Drive Speed (Raised) | 0.8km/h | 0.5mph |
| Gradeability | 25% | 25% |
| Tire Size | 305*100mm | 12"*4" |
| Ground Pressure, Tyres | 850 kPa | 123.3 psl |
| POWER | ||
| Power Source | 24V(2*12V), 100Ah, AGM | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Capacity | 5L | 1.3gal |
| WEIGHT | ||
| Machine Weight(ANSI) | 1170kg | 2579 lbs |
Standard features
Proportional control
Horn/Hour meter
Bottom oil tray
Emergency stop device
Manual brake release
Emergency descent
Charging protection system
Descent alarm with flashing beacon
Pothole guard
Full-height drive
Front wheel brake
Front wheel steering, front wheel drive
Tilt alarm
Platform tool box
Telematics connector
Solid non-marking tires
Optional
Telematics
AC power to platform
Biodegradable hydraulic oil
