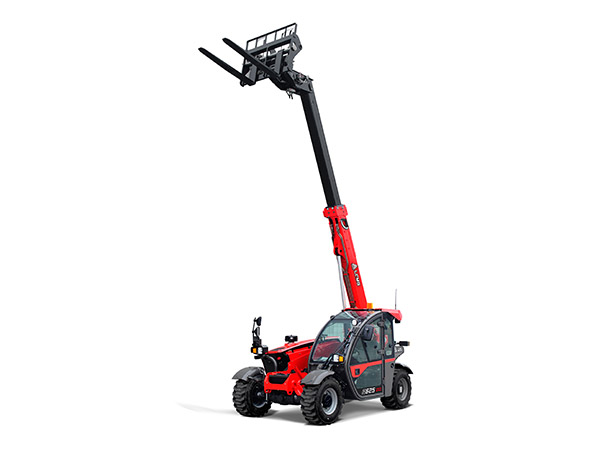

H625

The LGMG H625 is a telehandler with a capacity of 2500kg and a maximum lifting height of 5.85 meters.



It incorporates hydrostatic transmission, a two-speed transfer case, robust power, and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.



The H625 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.

  • 5.85m(19'2'')
    Work Height Max.
  • 2500kg(5512lbs)
    Platform Capacity
  • 1.83m(6')
    Machine Width
  • 3.43m(11'3'')
    Max. Outreach
  • 5100kg(11244lbs)
    Machine Weight
ModelsH625
MeasurementsMetricImperial
A-Max. Lifting Height5.85m19'2''
Max. Outreach3.43m11'3''
B-Overall Lenth3.94m13'
C-Overall Width 1.83m6'
D-Overall Height1.96m6'5''
E-Wheelbase2.3m7'7''
F-Wheel Track1.49m4'11''
Ground Clearance0.24m9'4''
Productivity
Max. Capacity2500 kg5512 lbs
Gradebility-Unladen45%
Min.Turning Radius3.36 m11'
Tilt Angle±5°
Drive/Steering Mode4 Wheel Drive / 4 Wheel Steer
Primary Boom Ascending Time4-10 s
Primary Boom Descending Time4-10 s
Boom Extending Time4-10 s
Boom retracting Time4-10 s
Forward-First Gear Travel Speed9 km/h5.6 mph
Forward-Second Gear Travel Speed24.9 km/h15.5 mph
Backward-First Gear Travel Speed9 km/h5.6 mph
Backward-Second Gear Travel Speed24.9 km/h15.5 mph
BrakingMultiple-disk brake with oil bath on front and rear axles
Max. Braking Distance-Unladen≤5m(20km/h)≤ 16'5''(12.4mph)
Standard Tyres12-16.5-12-TL
Power
ManufacturerKubota
Rated Power54.6 kW73.2hp
Max. Torque261.1 N.m192.4 lb.ft
Displacement3331 ml203.27 cu.in
Tank Capacities
Hydraulic Oil Capacity75L19.8gal
Fuel Tank Capacity63L16.6gal
Weight
Machine Weight5100 kg11244 lbs
