H730

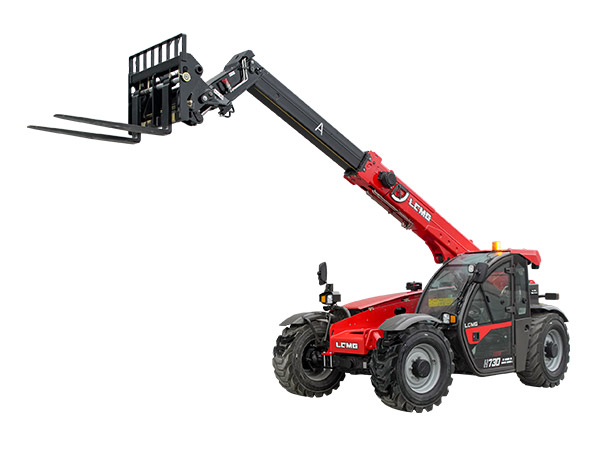

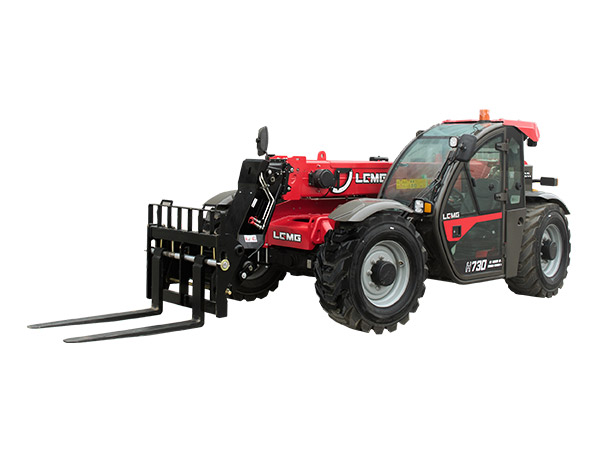

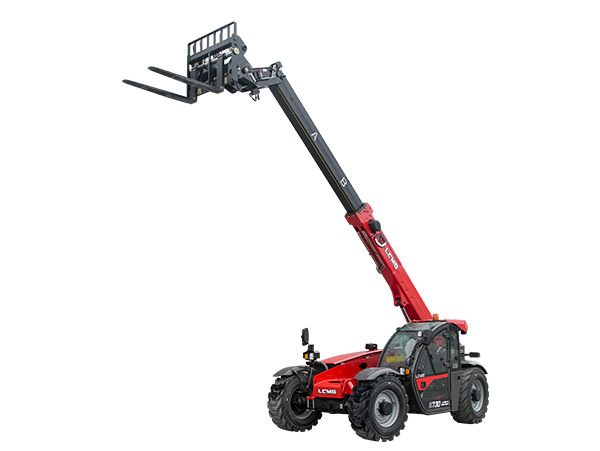

The LGMG H730 is a telehandler with a capacity of 3000kg and a maximum lifting height of 6.9 meters.



It incorporates hydrostatic transmission, a two-speed transfer case, robust power, and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.



The H730 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.

  • 6.9m(22'8'')
    Work Height Max.
  • 3000kg(6614lbs)
    Platform Capacity
  • 2.3m(7'7'')
    Machine Width
  • 4m(13'1'')
    Max. Outreach
  • 6900kg(15212lbs)
    Machine Weight
ModelsH730
MeasurementsMetricImperial
A-Max. Lifting Height6.9m22'8''
Max. Outreach4m13'1''
B-Overall Lenth5m16'5''
C-Overall Width 2.3m7'7''
D-Overall Height1.99m6'6''
E-Wheelbase2.76m9'1''
F-Wheel Track1.89m6'2''
Ground Clearance0.31m1'
Productivity
Max. Capacity3000 kg6614 lbs
Gradebility-Unladen45%
Min.Turning Radius3.3 m10'10''
Tilt Angle±5°
Drive/Steering Mode4 Wheel Drive / 4 Wheel Steer
Primary Boom Ascending Time5-15 s
Primary Boom Descending Time5-15 s
Boom Extending Time5-15 s
Boom retracting Time5-15 s
Forward-First Gear Travel Speed8 km/h5 mph
Forward-Second Gear Travel Speed24.9 km/h15.5 mph
Backward-First Gear Travel Speed8 km/h5 mph
Backward-Second Gear Travel Speed24.9 km/h15.5 mph
BrakingMultiple-disk brake with oil bath on front and rear axles
Max. Braking Distance-Unladen≤11m(24.9km/h)≤ 36'1"(15.5mph)
Standard Tyres385/65D22.5
Power
ManufacturerKubota
Rated Power54.6 kW73.2hp
Max. Torque261.1 N.m192.4 lb.ft
Displacement3331 ml203.27 cu.in
Tank Capacities
Hydraulic Oil Capacity75L19.8gal
Fuel Tank Capacity100L26.4gal
Weight
Machine Weight6900 kg15212 lbs
