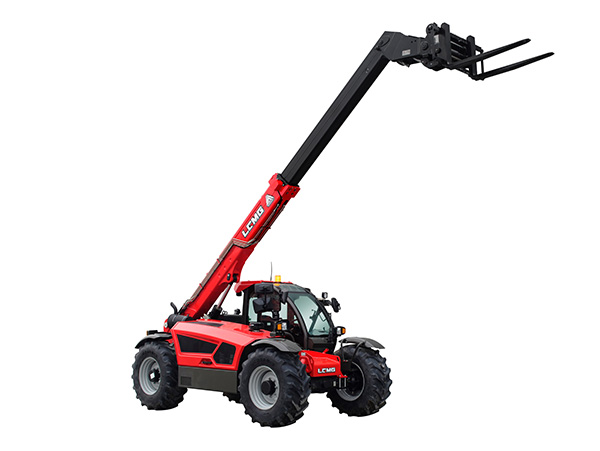

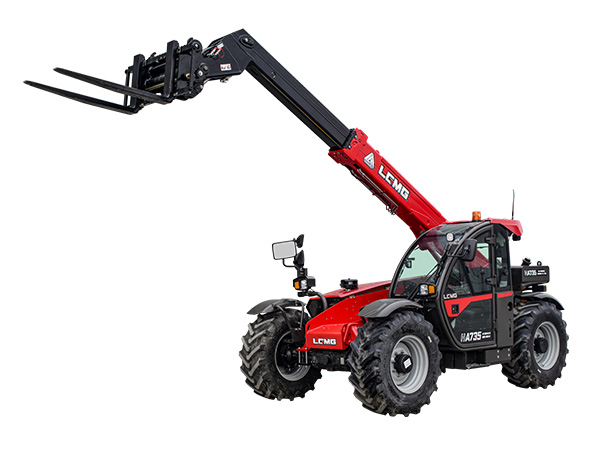

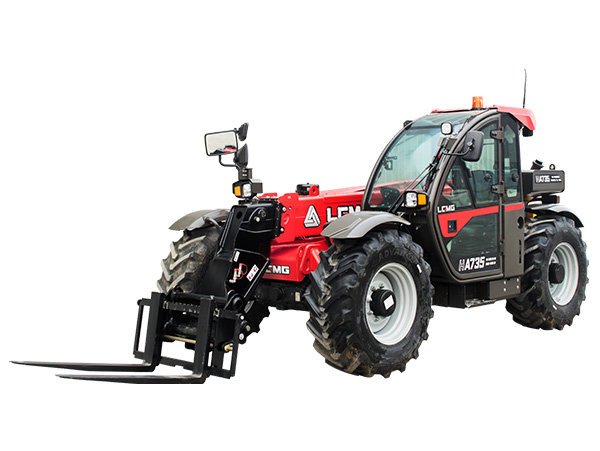

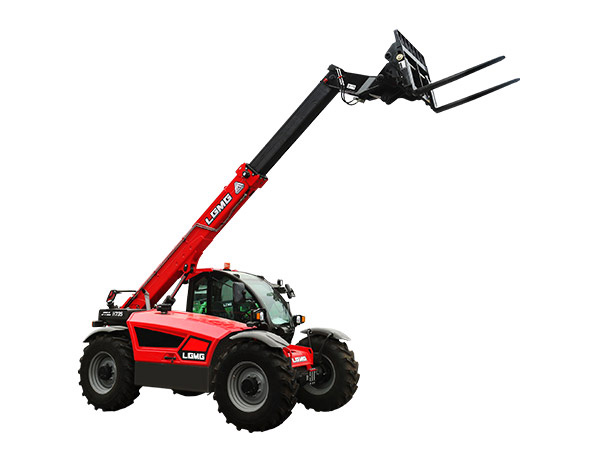

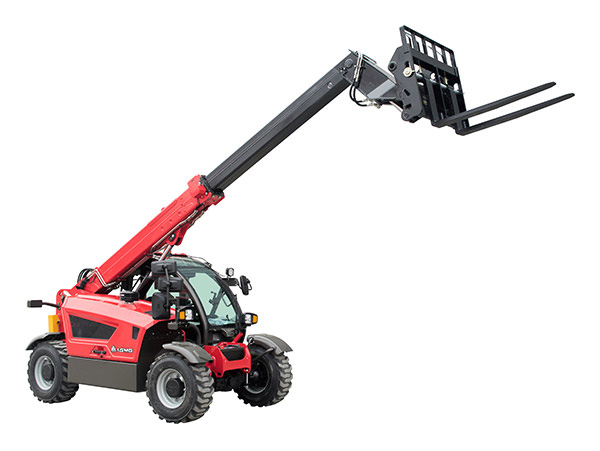

The LGMG HA735 is a telehandler with a capacity of 3500kg and a maximum lifting height of 6.9 meters.
It incorporates hydraulic convertor, delivering robust power and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.

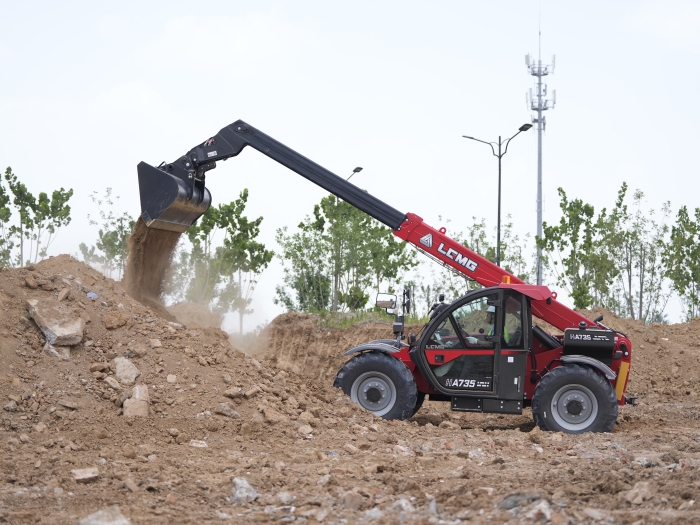

The HA735 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.
| Models | HA735 | |
| Measurements | Metric | Imperial |
| A-Max. Lifting Height | 6.9 m | 22'8'' |
| Max. Outreach | 3.9 m | 12'10" |
| B-Overall Lenth | 4.91 m | 16'1'' |
| C-Overall Width | 2.41 m | 7'11" |
| D-Overall Height | 2.31 m | 7'7'' |
| E-Wheelbase | 2.9 m | 9'6'' |
| Ground Clearance | 0.41 m | 1'4'' |
| Productivity | ||
| Max. Capacity | 3500 kg | 7716 lbs |
| Gradebility-Unladen | 45% | |
| Min.Turning Radius | 4.1 m | 13'5'' |
| Tilt Angle | ±5° | |
| Drive/Steering Mode | 4 Wheel Driving/4 Wheel Steer | |
| Primary Boom Ascending Time | 7.4 s | |
| Primary Boom Descending Time | 5.4 s | |
| Boom Extending Time | 7.6 s | |
| Boom retracting Time | 4.8 s | |
| Forward-First Gear Travel Speed | 4.5 km/h | 2.8 mph |
| Forward-Second Gear Travel Speed | 9.5 km/h | 5.9 mph |
| Forward-Third Gear Travel Speed | 19 km/h | 11.8 mph |
| Forward-Fourth Gear Travel Speed | 27 km/h | 16.8 mph |
| Backward-First Gear Travel Speed | 4.5 km/h | 2.8 mph |
| Backward-Second Gear Travel Speed | 9.5 km/h | 5.9 mph |
| Backward-Third Gear Travel Speed | 19.5 km/h | 12.1 mph |
| Standard Tires | 460/70 R24 | |
| Power | ||
| Manufacturer | Yuchai (Euro Ⅲ engine) | |
| Rated Power | 73 kW | 97.9hp |
| Max. Torque | 420 N.m | 309.8 lb.ft |
| Displacement | 3621 ml | 221 cu.in |
| Tank Capacity | ||
| Hydraulic Oil Capacity | 100 L | 26.4 gal |
| Fuel Tank Capacity | 130 L | 34.3 gal |
| Weight | ||
| Machine Weight | 7300 kg | 16094 lbs |
