l The four-wheel-drive system provides outstanding rough terrain capability, smooth transmission, and comfortable driving.
l Proportional lift and drive controls deliver smoother maneuvering, precise positioning and comfortable operation.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.

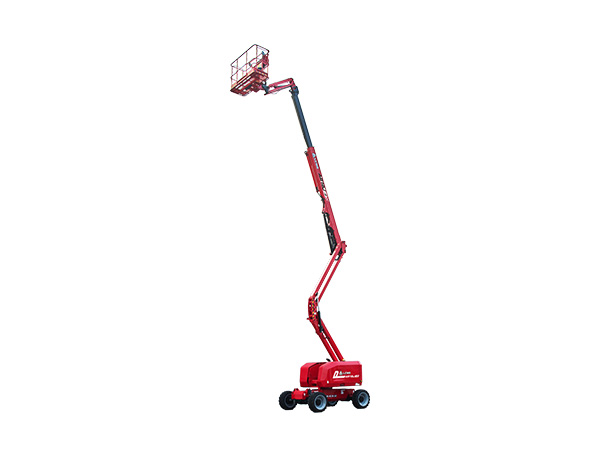

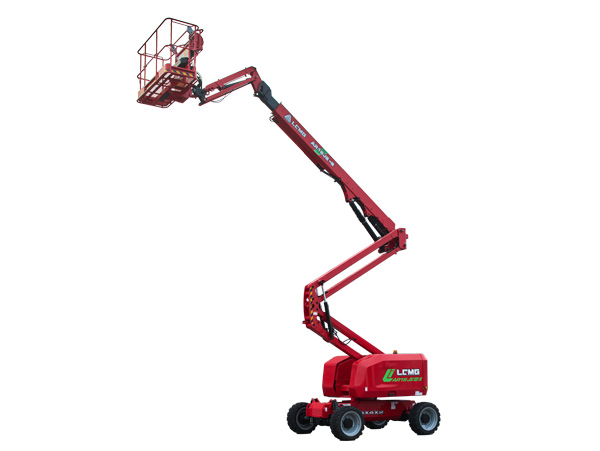

| MODELS | AR16J-2 | AR52J-2 |
| Measurements | Metric | Imperial |
| Work Height Max. | 17.9m | 58'9" |
| Platform Height Max. | 15.9m | 52'2" |
| Horizontal Outreach Max. | 9.81m | 32'2" |
| Up and Over Height | 7.5m | 24'7" |
| Platform Length | 1.83m | 6' |
| Platform Width | 0.76m | 2'6" |
| A- Length-Stowed | 7.91m | 25'11" |
| Length-Transport(jib tucked) | 6.41m | 21' |
| B- Overall Width | 2.3m | 7'7" |
| C- Height-Stowed | 2.24m | 7'4" |
| Height-Transport | 2.76m | 9'1" |
| D-Wheelbase | 2.25m | 7'5" |
| E-Ground Clearance | 0.33m | 1'1" |
| PRODUCTIVITY | ||
| Platform Capacity(unrestricted) | 260kg | 573 lbs |
| Platform Capacity(restricted) | 450kg | 992 lbs |
| Max. Platform Occupants | 2（unrestricted）/3(restricted) | |
| Turntable Rotation | 355° | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 2.9m | 9'6" |
| Turning Radius-Outside | 5.7m | 18'8" |
| Max. Slope | 5°/5° | |
| Tire Type | Foam-filled | |
| Tire Models | 315/55D20 | |
| Ground Pressure, Tyres | 438 kPa | 63.5 psi |
| POWER | ||
| Power Source | Kubota 18.2kW/24.4hp | |
| Fuel Tank Capacity | 65L | 17.2 gal |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 60L | 15.9 gal |
| WEIGHT | ||
| Machine Weight | 8650kg | 19070 lbs |
STANDARD FEATURES
Auto-leveling platform
Hydraulic rotating platform 180°
Full proportional joystick control
Descent alarm
Flashing beacons
Horn/Hour meter
Over-tilt protection system
Emergency stop button
Intelligent self-diagnosis function
Cylinder bellows
OTA remote upgrade
Dustproof components
Over-head anti-collision protection
Platform tool box
OPTIONAL
AC power to platform
Platform work light
Half-height mesh platform
Platform storage rack
Platform auxiliary guardrail
