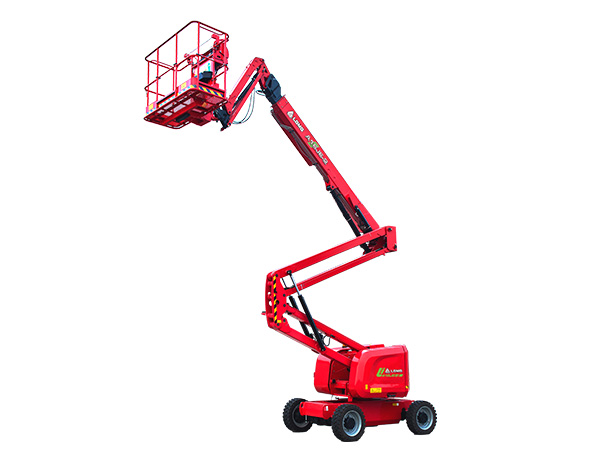

l The four-wheel-drive system provides outstanding rough terrain capability, smooth transmission, and comfortable driving.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Proportional lift and drive controls deliver smoother maneuvering, precise positioning and comfortable operation.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.
| MODELS | A16JE-2 | A52JE-2 |
| Measurements | Metric | Imperial |
| Work Height Max. | 17.7m | 58'1" |
| Platform Height Max. | 15.7m | 51'6" |
| Horizontal Outreach Max. | 9.49m | 31'2" |
| Up and Over Height | 7.26m | 23'10" |
| Platform Length | 1.83m | 6' |
| Platform Width | 0.76m | 2'6" |
| A- Length-Stowed | 7.407m | 24'4" |
| Length-Transport(jib tucked) | 5.99m | 19'8" |
| B- Overall Width | 1.87m | 6'2" |
| C- Height-Stowed | 1.96m | 6'5" |
| Height-Transport | 2.42m | 7'11" |
| D-Wheelbase | 2.03m | 6'8" |
| E-Ground Clearance | 0.18m | 7.1" |
| PRODUCTIVITY | ||
| Platform Capacity (unrestricted/restricted)) | 230/350kg | 507/772 lbs |
| Max. Platform Occupants | 2(unrestricted)/3(restricted) | |
| Turntable Rotation | 355° | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 30% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 2.22m | 7'3" |
| Turning Radius-Outside | 4.6m | 15'1" |
| Max. Slope | 4.5°/4.5° | |
| Tire Type | Solid | |
| Tire Models | 250-15 | |
| Ground Pressure, Tyres | 1160 kPa | 168.2 psi |
| POWER | ||
| Power Source | 80V 125Ah | |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 30L | 7.9gal |
| WEIGHT | ||
| Machine Weight | 7650kg | 16865 lbs |
STANDARD FEATURES
Auto-leveling platform
Full proportional joystick control
Descent alarm
Flashing beacons
Horn/Hour meter
Over-tilt protection system
Emergency stop button
Intelligent self-diagnosis function
Cylinder bellows
OTA remote upgrade
Dustproof components
Platform tool box
AC power to platform
Over-head anti-collision protection
OPTIONAL
Platform work light
Half-height mesh platform
Platform auxiliary guardrail
Platform pipe rack
