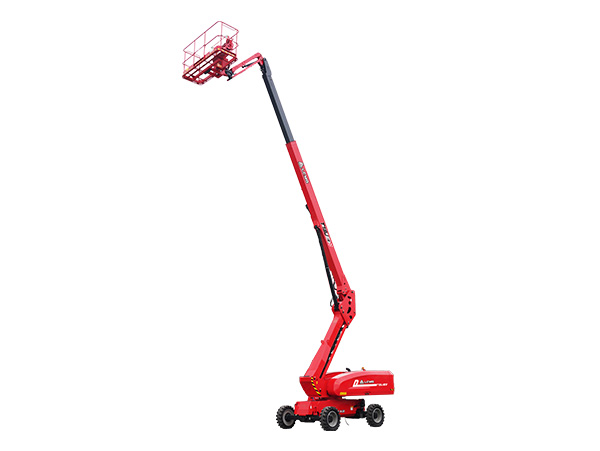

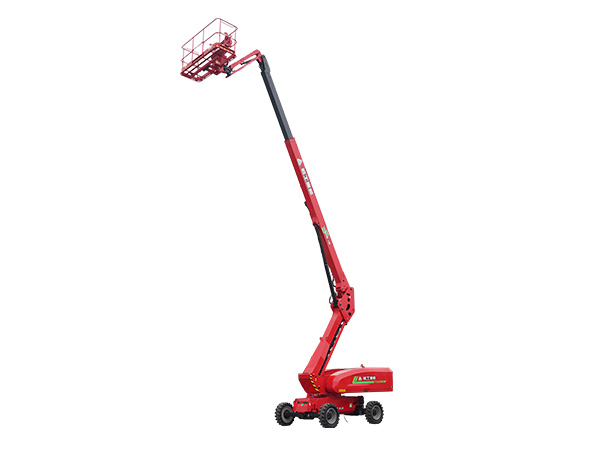

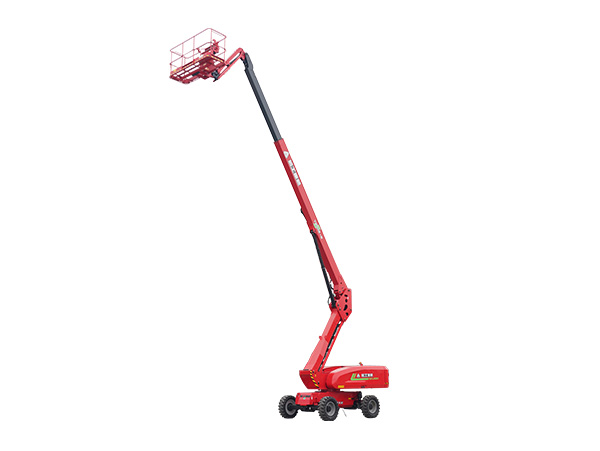

T20J-2(T65J-2)

l Full-time active oscillating axles, combined with a four-wheel-drive system, provide outstanding off-road capability, smooth transmission, and comfortable driving.

l new parallelogram tower boom design with high rigidity and anti-torque provides an impressive reach and excellent obstacle-surmounting ability.

l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.

l The intelligent self-diagnosis function enables quick troubleshooting at the working site.


  • 22m(72'2'')
    Work Height Max.
  • 300/450kg(661/992lbs)
    Platform Capacity
  • 2.5m(8'2'')
    Machine Width
  • 13.62m(44'8'')
    Horizontal Outreach
  • 9650kg(21275lbs)
    Machine Weight
MODELST20J-2T65J-2
MeasurementsMetricImperial
Work Height Max.  22m72'2"
Platform Height Max.20m65'7"
Horizontal Outreach Max.13.62m44'8"
Platform Length  2.44m8'
Platform Width  0.9m2'11"
A- Length-Stowed 10.69m35'1"
Length-Transport(jib tucked)8.38m27'6"
B- Overall Width 2.5m8'2"
C- Height-Stowed  2.68m8'10"
Height-Transport3m9'10"
D-Wheelbase   2.51m8'3"
E-Ground Clearance  0.4m1'4"
PRODUCTIVITY

Platform Capacity(unrestricted) 300kg661 lbs
Platform Capacity(restricted) 450kg992 lbs
Max. Platform Occupants2(unrestricted)/3(restricted)
Turntable Rotation  360°Continuous
Drive Speed-Stowed  5km/h3.1mph
Drive Speed-Raised  0.8km/h0.5mph
Gradeability45%
Max. Wind Speed    12.5m/s28mph
Turning Radius-Inside 3.5m11'6"
Turning Radius-Outside6.35m20'10"
Max. Slope  5°/5°
Tire TypeSolid
Tire Models36*14-20
Ground Pressure, Tyres541.8 kPa78.6 psi
POWER

Power SourceKubota 25kW/33.5hp
Fuel Tank Capacity100L26.4 gal
HYDRAULIC SYSTEM

Hydraulic Oil Volume  120L 31.7 gal
WEIGHT

Machine Weight9650kg21275 lbs


STANDARD FEATURES

OTA remote upgrade

Intelligent self-diagnosis function

Auto-leveling platform

Hydraulic rotating platform 180°

Full proportional joystick control

Load sensitive system

Over-tilt protection system

Emergency stop button

Descent alarm

Flashing beacons

Horn/Hour meter

Dual load 300kg/450kg

Over-head anti-collision protection

Full time active oscillation of axles





OPTIONAL

AC power to platform

Platform work light

Half-height mesh platform

Platform storage rack

Platform auxiliary guardrail
