l Full-time active oscillating axles, combined with a four-wheel-drive system, provide outstanding off-road capability, smooth transmission, and comfortable driving.

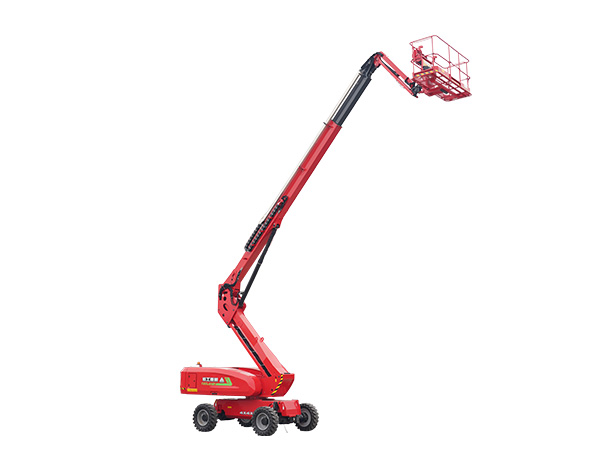

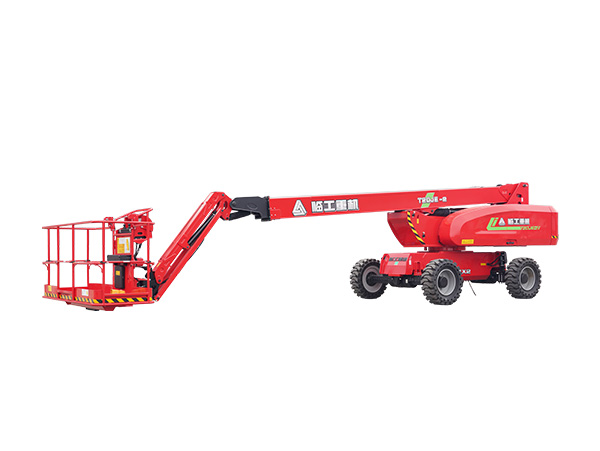

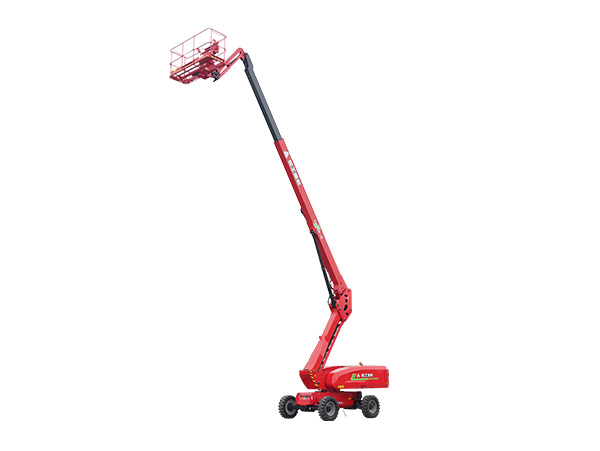

l new parallelogram tower boom design with high rigidity and anti-torque provides an impressive reach and excellent obstacle-surmounting ability.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Remote software upgrades, parameter adjustments, and remote online diagnosis through telematics.
l The intelligent self-diagnosis function enables quick troubleshooting at the working site.
MODELS | T20JE-2 | T65JE-2 |
Measurements | Metric | Imperial |
Work Height Max. | 22m | 72'2" |
Platform Height Max. | 20m | 65'7" |
Horizontal Outreach Max. | 13.62m | 44'8" |
Platform Length | 2.44m | 8' |
Platform Width | 0.9m | 2'11" |
A- Length-Stowed | 10.69m | 35'1" |
Length-Transport(jib tucked) | 8.38m | 27'6" |
B- Overall Width | 2.5m | 8'2" |
C- Height-Stowed | 2.68m | 8'10" |
Height-Transport | 3m | 9'10" |
D-Wheelbase | 2.51m | 8'3" |
E-Ground Clearance | 0.4m | 1'4" |
PRODUCTIVITY | ||
Platform Capacity(unrestricted) | 300kg | 661 lbs |
Platform Capacity(restricted) | 450kg | 992 lbs |
Max. Platform Occupants | 2(unrestricted)/3(restricted) | |
Turntable Rotation | 360°Continuous | |
Drive Speed-Stowed | 5km/h | 3.1mph |
Drive Speed-Raised | 0.8km/h | 0.5mph |
Gradeability | 45% | |
Max. Wind Speed | 12.5m/s | 28mph |
Turning Radius-Inside | 3.5m | 11'6" |
Turning Radius-Outside | 6.35m | 20'10" |
Max. Slope | 5°/5° | |
Tire Type | Solid Non-marking | |
Tire Models | 36*14-20 | |
Ground Pressure, Tyres | 541.8 kPa | 78.6 psi |
POWER | ||
Lithium | 80V 228Ah | |
HYDRAULIC SYSTEM | ||
Hydraulic Oil Volume | 90L | 23.8 gal |
WEIGHT | ||
Machine Weight | 9400kg | 20723 lbs |
STANDARD FEATURES
OTA remote upgrade
Intelligent self-diagnosis function
Auto-leveling platform
Hydraulic rotating platform 180°
Full proportional joystick control
Load sensitive system
Over-tilt protection system
Emergency stop button
Descent alarm
Flashing beacons
Horn/Hour meter
Dual load 300kg/450kg
Over-head anti-collision protection
Full time active oscillation of axles
OPTIONAL
AC power to platform
Platform work light
Platform auxiliary guardrail
Half-height mesh platform
Platform storage rack
