l The structural components are designed to be lightweight yet solid and durable, effectively reducing energy consumption, and improving working time.
l Equipped with a Permanent Magnet Synchronous Motor (PMSM), integrating the motor and controller into a single (3-in-1), maintenance-free unit that significantly boosts efficiency while reducing wear and maintenance costs.
l Optimized pipeline layout to reduce energy loss and leakage risk while improving system reliability and durability.
l Operate with universal electrical interfaces for compatibility across various application scenarios.
l Multiple battery options: FLA, AGM, and Li-battery.

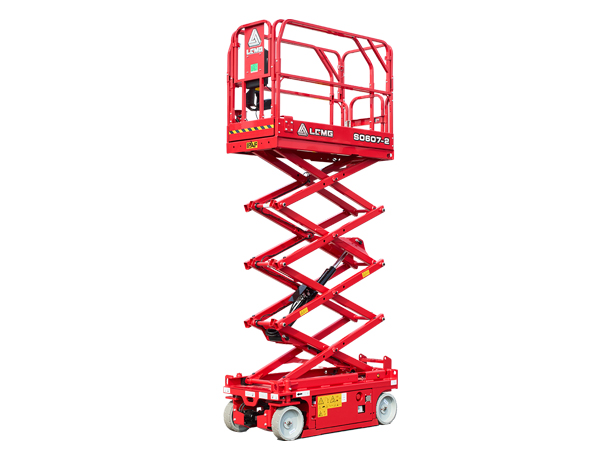

| MODELS | S0607-2 | S1932-2 |
| Measurements | Metric | Imperial |
| Working Height Max. | 7.8m | 25'7'' |
| A-Platform Height-Raised | 5.8m | 19' |
| B-Platform Length | 1.64m | 5'5'' |
| C-Extension Deck | 0.9m | 2'11'' |
| D-Platform Length with Extension Deck | 2.54m | 8'4'' |
| E-Platform Width | 0.73m | 2'5'' |
| F-Overall Length | 1.837m | 6' |
| G-Overall Width | 0.79m | 2'7'' |
| H-Overall Height-Guardrails Up | 2m | 6'7'' |
| I-Overall Height-Guardrails Down | 1.666m | 5'6'' |
| J-Wheelbase | 1.35m | 4'5'' |
| Ground Clearance (Stowed/Raised) | 55/16mm | 2.2''/0.6'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 2(in) / 1(out) | |
| Platform Capacity | 230kg | 507 lbs |
| Platform Capacity-Extension Deck | 120kg | 265 lbs |
| Drive Height | Full Height | Full Height |
| Gradeability-Stowed | 25% | |
| Min. Turning Radius | 1.95m | 6'5'' |
| Raise/Lower Speed | 16s / 22s | |
| Brakes | Front-wheel Brake | |
| Drive Mode | 4x2 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 323x100mm | 13''x4'' |
| Ground Pressure, Tyres | 941 kPa | 136.5 psi |
| POWER | ||
| Lead-acid Battery | 24V(2*12V), 130Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 8.5 L | 2.3 gal |
| WEIGHT | ||
| Machine Weight | 1550kg | 3417 lbs |
STANDARD FEATURES
Proportional control
Foldable guardrail
Emergency descent
Tubing explosion-proof system
Intelligent diagnostic system
Flashing beacons
Floating function
Automatic braking system
Over-tilt protection system
Safety arm for troubleshooting
Telematics
Alarm
One-way platform extension deck
Hydraulic outriggers
Non marking tires
OPTIONAL
AC power to platform
