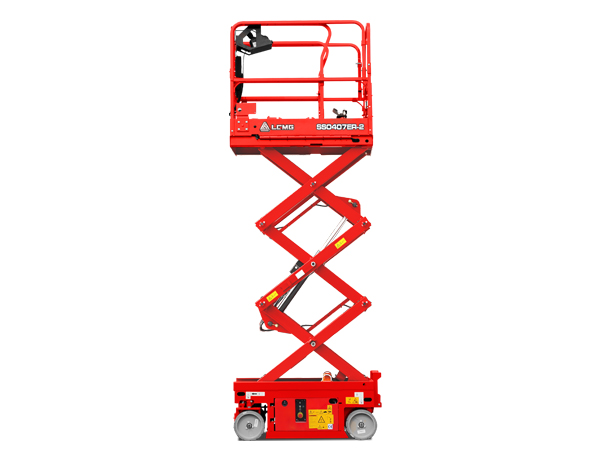

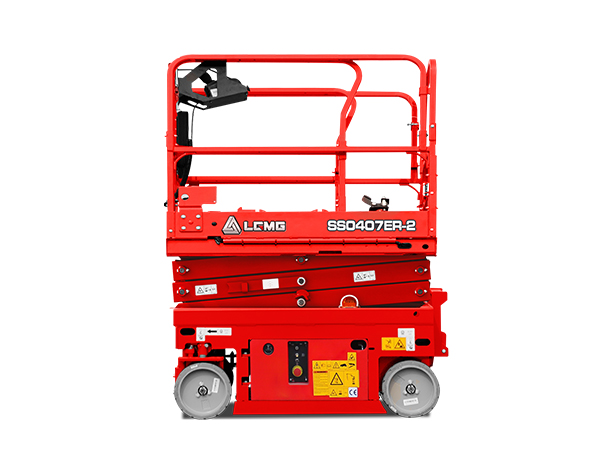

LGMG’s mini scissors are ideal solutions for low-level access and space-restricted job sites. With a short overall machine length, lightweight, and compact design, these machines are perfectly suited for use in most elevators, offering flexibility and ease of movement across different work environments.
l Battery-powered, zero-emission, and quiet drive make the machine environmentally friendly.
l Efficient electric drive system provides longer-lasting performance and better gradeability.
l Exceptional waterproof drive system design provides excellent performance in wet conditions.
| MODELS | SS0407ER-2 | SS1230ER-2 |
| Measurements | Metric | Imperial |
| Working Height Max. | 6.5m | 21'4'' |
| A-Platform Height-Raised | 4.5m | 14'9'' |
| B-Platform Length | 1.29m | 4'3'' |
| C-Extension Deck | 0.6m | 2' |
| D-Platform Length with Extension Deck | 1.89m | 6'2'' |
| E-Platform Width | 0.7m | 2'4'' |
| F-Overall Length | 1.51m | 4'11'' |
| G-Overall Width | 0.8m | 2'7'' |
| H-Overall Height-Guardrails Up | 2.05m | 6'9'' |
| I-Overall Height-Guardrails Down | 1.625m | 5'4'' |
| J-Wheelbase | 1.05m | 3'5'' |
| Ground Clearance (Stowed/Raised) | 80/25mm | 3''/1'' |
| PRODUCTIVITY | ||
| Platform Occupants Max. (in/out) | 2(in) / 1(out) | |
| Platform Capacity | 240kg | 530 lbs |
| Platform Capacity-Extension Deck | 100kg | 221 lbs |
| Drive Height | Full Height | Full Height |
| Gradeability-Stowed | 25% | |
| Min. Turning Radius | 1.67m | 5'6'' |
| Raise/Lower Speed | 25s / 20s | |
| Brakes | Rear-wheel Brake | |
| Drive Mode | 4x2 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 305x100mm | 12''x4'' |
| POWER | ||
| Lead-acid Battery | 24V(2*12V), 95Ah | |
| HYDUALIC SYSTEM | ||
| Hydraulic Oil Capacity | 4 L | 1.1 gal |
| WEIGHT | ||
| Machine Weight | 920kg | 2028 lbs |
STANDARD FEATURES
Proportional control
Proportional controls
Foldable guardrail
Emergency stop switch
Manual brake release
Emergency descent
Pothole guard
All motions alarm
Full-height drive
Swing-out component tray
Self-lock entry gate
Tilt alarm with lift cut-out
Overload sensing system
Descent alarm with flashing beacon
Intelligent diagnostic system
OPTIONAL
AC power to platform
Telematics
Voice alarm system
Anti-collision protection
Biodegradable hydraulic oil
