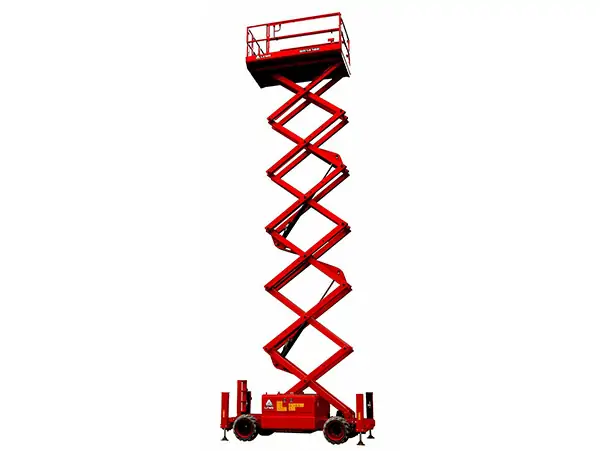

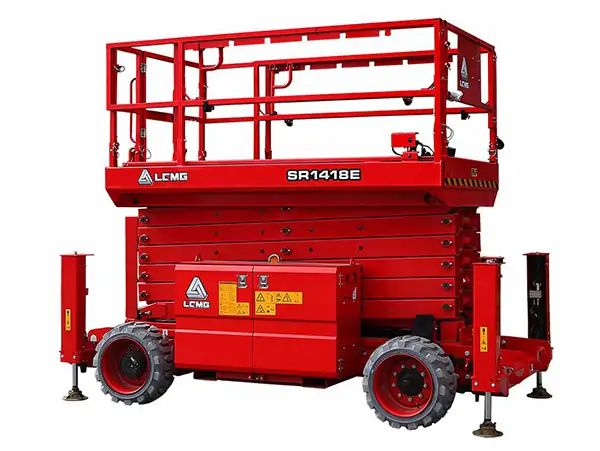

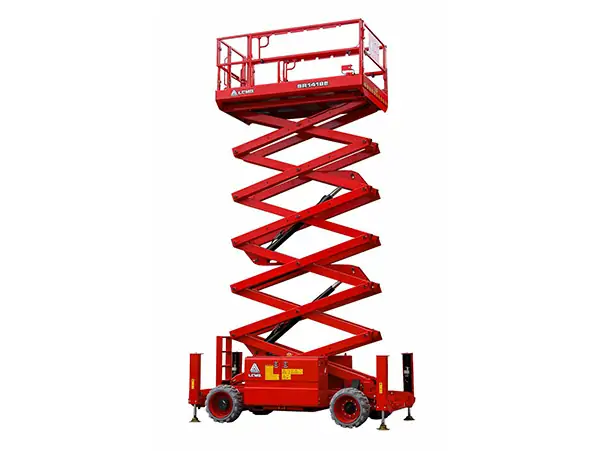

LGMG SR18E Series rough terrain scissor lifts deliver a large platform, high capacity and environ mentally friendly solutions for both indoor and outdoor applications. A compact design, battery powered together with oscillating axels provide flexibility for the machine to work on both the firm level and rough terrain environments.
l The large platform with high capacity maximizes productivity.
l Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.
l Equipped with oscillating axles that provide excellent performance in soft and rough terrain conditions.
l Hydraulic outriggers deliver a better solution on uneven ground.
l Intelligent self-diagnostic system for quick troubleshooting.
| Models | SR1418E | SR4669E |
| Measurements | Metric | Imperial |
| Work Height Max. | 15.8m | 51'10'' |
| A-Platform Height- Raised | 13.8m | 45'3'' |
| B-Platform Length | 2.79m | 9'2'' |
| C-Platform Width | 1.6m | 5'3'' |
| D-Overall Length (with ladder) | 3.73m | 12'3'' |
| E-Overall Width | 1.84m | 6' |
| F-Overall Height - Rails up | 2.9m | 9'6'' |
| Overall Height - Rails down | 2.24m | 7'4'' |
| G- Extension Deck | 1.5m | 4'11'' |
| H- Wheelbase | 2.29m | 8' |
| Ground Clearance-Cente | 0.23m | 9'' |
| Productivity | ||
| Max. Platform Occupant | 2(in) / 2(out) | |
| Platform Capacity | 365kg | 805 lbs |
| Platform Capacity - Extension | 140kg | 309 lbs |
| Drive Height | Full Height | |
| Gradeability - Stowed | 35% | 35% |
| Turning Radius - Outside | 4.75m | 15'7'' |
| Raise/Lower Speed | 80s/60s | |
| Brakes | Rear-wheel Brake | |
| Drive Mode | 4x2 | |
| Tires Type | Solid Non-marking | |
| Tires Size | 663x283mm | 26''x11'' |
| Ground Pressure, Tyres | 651.96 kPa | 94.6 psi |
| Power | ||
| Power Source | 48V DC 390Ah, FLA | |
| Hydraulic System | ||
| Hydraulic Oil Volume | 50L | 13.2 gal |
| Weight | ||
| Machine Weight (CE/ANSI) | 6260kg | 13800 lbs |
Standard features
Proportional control
Foldable guardrails
Emergency stop device
Manual brake release
Emergency descent
Self-lock entry gate
Oscillating axle
Descent alarm with flashing beacon
Tilt alarm with lift cut-out
Intelligent diagnostic system
All motions alarm
Overload sensing system
Auto-leveling outriggers
Solid non-marking tires
Optional
AC power to platform
Solid tires
Foam-filled tires
Foam-filled non-marking tires
Telematics
Biodegradable hydraulic oil
